BT Prime-Mover RR-45 Reach Truck Parts Manual – PDF DOWNLOAD

Description

BT Prime-Mover RR-45 Reach Truck Parts Manual – PDF DOWNLOAD

FILE DETAILS:

BT Prime-Mover RR-45 Reach Truck Parts Manual – PDF DOWNLOAD

Language : English
Pages : 784
Downloadable : Yes
File Type : PDF

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

BT Prime-Mover RR-45 Reach Truck Parts Manual – PDF DOWNLOAD

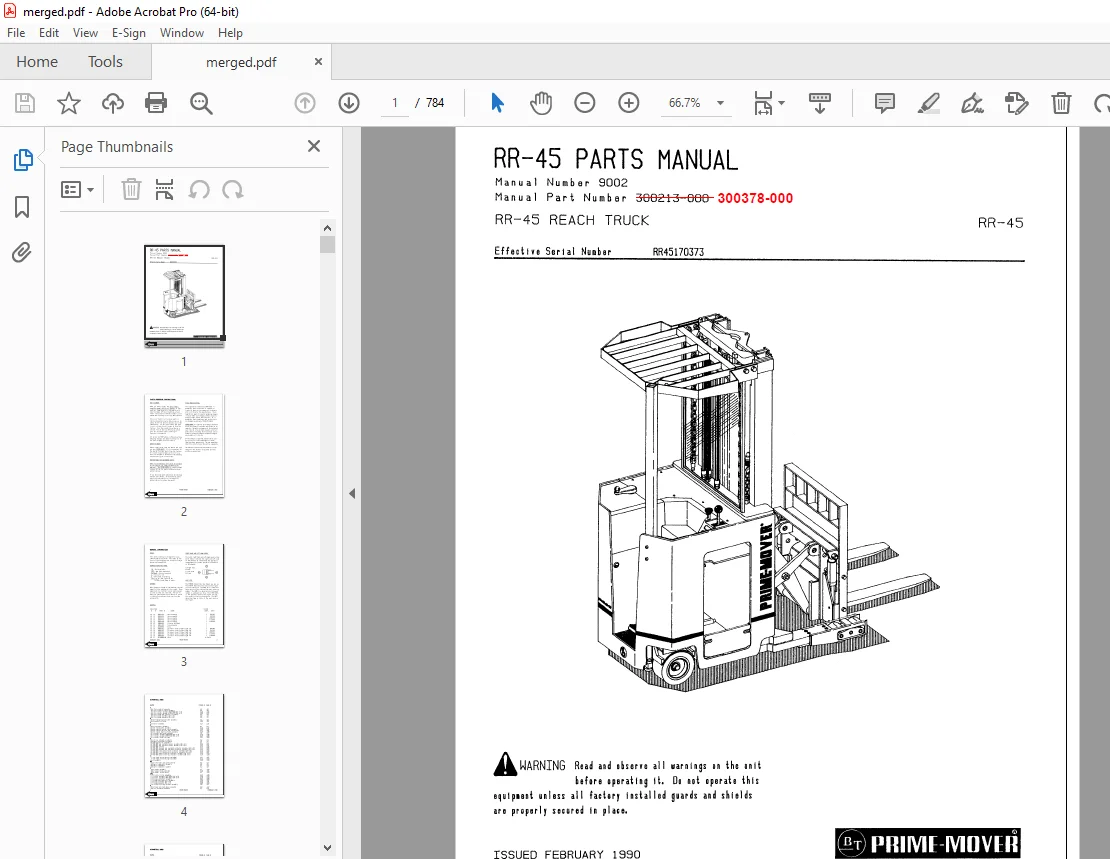

Front Cover 1
Parts Ordering Instructions 2
General Information 3
Alphabetical Index 4
Figure # 0 1 Decal and Parts Assembly 6
Figure # 0 2 Parts List and Service Reference Index 8
Figure # 1 1 Transmission and Steering Installation 10
Figure # 1 2 Drive Motor and Brake Assembly 12
Figure # 1 3 Transmission Assembly Part # 1 14
Figure # 1 4 Transmission Assembly Part # 2 16
Figure # 2 1 EV-100 Electrical Schematic 18
Figure # 2 2 Electrical Schematic Symbols 19
Figure # 2 3 Wiring Assembly for Cold Storage 20
Figure # 2 4 Wiring Harness Assembly 22
Figure # 2 5 Master Control Switch 24
Figure # 2 6 Limit Switch Wiring Harness Assembly 26
Figure # 2 7 Two Stage Mast Cable Assembly 28
Figure # 2 8 Three Stage Mast Cable Assembly 30
Figure # 2 9 Single Reach Cable Assembly 32
Figure # 2 10 Double Reach Cable Assembly 34
Figure # 2 11 Power Component Wiring 36
Figure # 2 12 EV-100 SCR Contactor Panel Assembly 38
Figure # 2 13 EV-100 SCR Control 40
Figure # 2 14 EV-100 SCR Forward & Rearward Contactor Assembly 42
Figure # 2 15 EV-100 SCR Lift Pump and 1A Contactor Assembly 44
Figure # 2 16 EV-100 SCR Power Steering Contactor Assembly 46
Figure # 2 17 Connector Assembly 48
Figure # 2 18 Lift Motor Assembly 50
Figure # 2 19 Drive Motor Assembly 52
Figure # 2 20 Auxiliary Motor Assembly 54
Figure # 2 21 Warning Light Assembly 56
Figure # 3 1 Hydraulic Schematic 58
Figure # 3 2 Hydraulic Schematic Symbols 59
Figure # 3 3 Auxiliary Pump and Reservoir Assembly 60
Figure # 3 4 Auxiliary Control Valve Assembly 62
Figure # 3 5 Auxiliary Pump Assembly 64
Figure # 3 6 Hydraulic Reservoir Assembly 66
Figure # 3 7 Steering Control Valve Assembly 68
Figure # 3 8 Steering Control Valve and Hose Assembly 70
Figure # 3 9 Steering Cylinder Assembly 72
Figure # 3 10 Two Stage Mast Hydraulic Assembly 74
Figure # 3 11 Three Stage Mast Hydraulic Assembly 76
Figure # 3 12 Single Reach, Reach Cylinder Hose Installation 78
Figure # 3 13 Single Reach Diverter Valve Assembly 80
Figure # 3 14 Single Reach, Reach Cylinder Assembly 82
Figure # 3 15 Single Reach, Tilt and Sideshift Hose Installation 84
Figure # 3 16 Tilt Cylinder Assembly 86
Figure # 3 17 Double Reach with Tilt and Sideshifter 88
Figure # 3 18 Double Reach Diverter Valve Assembly 90
Figure # 3 19 Double Reach, Reach Cylinder Assembly 92
Figure # 3 20 Lift Pump and Reservoir Assembly 94
Figure # 3 21 Lift Pump and Motor Assembly 96
Figure # 3 22 24 Volt Lift Pump Assembly 98
Figure # 3 23 36 Volt Lift Pump Assembly 100
Figure # 3 24 Lift Control Valve Assembly 102
Figure # 3 25 Two Stage Cylinder and Reservoir Assembly 104
Figure # 3 26 Two Stage Cylinder Assembly 106
Figure # 3 27 Three Stage Cylinder and Reservoir Assembly 108
Figure # 3 28 Three Stage Staging Cylinder Assembly 110
Figure # 3 29 Three Stage Freelift Cylinder Assembly 112
Figure # 3 30 Brake Master Cylinder 114
Figure # 3 31 Drive Motor Brake Cylinder 116
Figure # 3 32 Idler Wheel Brake Cylinder 118
Figure # 4 1 Shielding Assembly 120
Figure # 4 2 Emergency Disconnect Assembly 122
Figure # 4 3 Auxiliary Control Assembly 124
Figure # 4 4 Hand Lift/Lower and Speed Control 126
Figure # 4 5 Brake Linkage and Cylinder Assembly 128
Figure # 4 6 Steering Control Assembly 130
Figure # 4 7 Idler Wheel Installation 132
Figure # 4 8 Idler Wheel Assembly 134
Figure # 4 9 Main Frame and Load Wheel Assembly 136
Figure # 4 10 Single Load Wheel Assembly 138
Figure # 4 11 5″ High Articulating Load Wheel Assembly 140
Figure # 4 12 4″ High Articulating Load Wheel 142

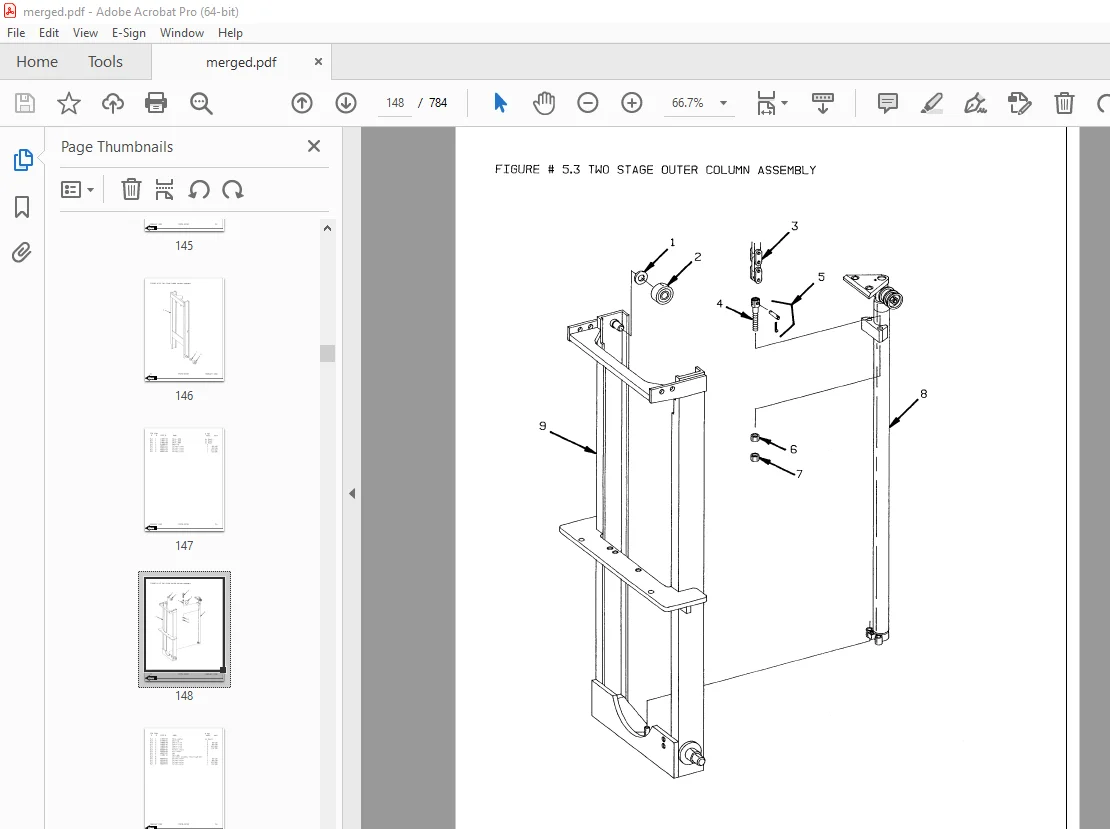

Figure # 5 1 Two Stage Mast Installation 144
Figure # 5 2 Two Stage Inner Column Assembly 146
Figure # 5 3 Two Stage Outer Column Assembly 148
Figure # 5 4 Two Stage Cylinder Installation 150
Figure # 5 5 Single Reach Assembly 152
Figure # 5 6 Single Reach with Front Frame 154
Figure # 5 7 Double Reach Assembly 156
Figure # 5 8 Double Reach with Front Frame 158
Figure # 5 9 Sideshifter Assembly 160
Figure # 5 10 Fork Assembly 162
Figure # 5 11 Three Stage Mast Installation 164
Figure # 5 12 Three Stage Inner Column Assembly 166
Figure # 5 13 Three Stage Freelift Cylinder Installation 168
Figure # 5 14 Three Stage Intermediate Column Assembly 170
Figure # 5 15 Three Stage Outer Column Assembly 172
Figure # 6 1 Manlift Electrical Schematic 174
Figure # 6 2 Manlift Electrical Schematic Symbols 175
Figure # 6 3 Manlift Wiring Harness Assembly 176
Figure # 6 4 Manlift Three Stage Mast Cable Assembly 178
Figure # 6 5 Manlift Reach and Platform Cable Assembly 180
Figure # 6 7 Manlift Connector Assembly 182
Figure # 6 8 Manlift Hydraulic Schematic 184
Figure # 6 9 Manlift Hydraulic Schematic Symbols 185
Figure # 6 10 Manlift Hydraulic Diagram 186
Figure # 6 11 Manlift Valve Assembly 188
Figure # 6 12 Manlift Valve Assembly 190
Figure # 6 13 Manlift Load Backrest Installation 192
Figure # 7 1 Special Tools and Lubrications 194
Back Cover 198
Front Cover 199
Parts Ordering Instructions 200
General Information 201
Alphabetical Index 202
Figure # 0 1 Decals and Parts Assembly 206
Figure # 0 2 Parts List Index 208
Figure # 1 1 Transmission and Steering Installation 212
Figure # 1 2 Drive Motor Brake Assembly 214
Figure # 1 3 Transmission Assembly 216
Figure # 1 4 Transmission Assembly 218
Figure # 2 1 “E” EV-100LX SCR Electrical Schematic 220
Figure # 2 2 “E” EV-100LX SCR Electrical Schematic Symbols 221
Figure # 2 3 “EE” EV-100LX SCR Electrical Schematic 222
Figure # 2 4 “EE” EV-100LX SCR Electrical Schematic Symbols 223
Figure # 2 5 Wiring Assembly for Cold Storage 224
Figure # 2 6 Wiring Harness Assembly 226
Figure # 2 7 Limit Switch Wiring Assembly 228
Figure # 2 8 Two Stage Mast Cable Assembly 230
Figure # 2 9 Three Stage Mast Cable Assembly 232
Figure # 2 10 Single Reach Cable Assembly 234
Figure # 2 11 Double Reach Cable Assembly 236
Figure # 2 12 EV-100LX Power Component Wiring 238
Figure # 2 13 EV-100LX TX & TT SCR Control Panel Assembly 240
Figure # 2 14 EV-100LX Contactor Panel Assembly & Related Parts for “E” and “EE” 242
Figure # 2 15 EV-100LX Contactor Panel Assembly 244
Figure # 2 16 EV-100LX SCR Forward & Rearward Contactor Assembly 246
Figure # 2 17 EV-100LX SCR 1A Contactor Assembly 248
Figure # 2 18 Lift Pump Contactor Assembly 250
Figure # 2 19 EV-100LX SCR Auxiliary Pump Contactor Assembly 252
Figure # 2 20 Power Connector Assembly 254
Figure # 2 21 Lift Pump Motor Assembly 256
Figure # 2 22 Drive Motor Assembly 258
Figure # 2 23 Auxiliary Pump Motor Assembly 260
Figure # 2 24 Warning Light Assembly 262
Figure # 2 25 “E” EV-100LX TT SCR Electrical Schematic 264
Figure # 2 26 “E” EV-100LX TT SCR Electrical Schematic Symbols 265
Figure # 2 27 “EE” EV-100LX TT SCR Electrical Schematic 266
Figure # 2 28 “EE” EV-100LX TT SCR Electrical Schematic Symbols 267
Figure # 2 29 EV-100LX Dash Display Installation 268
Figure # 3 1 Hydraulic Schematic 270
Figure # 3 2 Hydraulic Schematic Symbols 271
Figure # 3 3 Auxiliary Pump and Reservoir Assembly 272
Figure # 3 4 Auxiliary Control Valve Assembly 274
Figure # 3 5 Auxiliary Pump and Motor Assembly 276
Figure # 3 6 Auxiliary Pump Assembly 278
Figure # 3 7 Hydraulic Reservoir Assembly 280
Figure # 3 8 Steering Control Valve Assembly 282
Figure # 3 9 Steering Control Valve and Hose Assembly 284
Figure # 3 10 Steering Cylinder Assembly 286
Figure # 3 11 Two Stage Mast Hydraulic Assembly 288
Figure # 3 12 Three Stage Mast Hydraulic Assembly 290
Figure # 3 13 Single Reach, Reach Cylinder Hose Installation 292
Figure # 3 14 Single Reach Diverter Valve Assembly 294
Figure # 3 15 Single Reach, Reach Cylinder Assembly 296
Figure # 3 16 Single Reach, Tilt and Sideshift Hose Installation 298
Figure # 3 17 Single Reach, Tilt Cylinder Assembly 300
Figure # 3 18 Double Reach with Tilt and Sideshifter 302
Figure # 3 19 Double Reach Diverter Valve Assembly 304
Figure # 3 20 Double Reach, Reach Cylinder Assembly 306
Figure # 3 21 Double Reach, Tilt Cylinder Assembly 308
Figure # 3 22 Lift Pump and Reservoir Assembly 310
Figure # 3 23 Lift Pump Motor Assembly 312
Figure # 3 24 Lift Pump Motor Assembly, 24 Volt 314
Figure # 3 25 Lift Pump Motor Assembly, 36 Volt 316
Figure # 3 26 Lift Control Valve Assembly 318
Figure # 3 27 Two Stage Cylinder and Reservoir Assembly 320
Figure # 3 28 Two Stage Cylinder Assembly 322
Figure # 3 29 Three Stage Cylinder and Reservoir Assembly 324
Figure # 3 30 Three Stage Staging Cylinder Assembly 326
Figure # 3 31 Three Stage Freelift Cylinder Assembly 328
Figure # 3 32 Brake Linkage and Cylinder Assembly 330
Figure # 3 33 Brake Master Cylinder 332
Figure # 3 34 Drive Motor Brake Cylinder 334
Figure # 3 35 Idler Wheel Brake Cylinder 336
Figure # 4 1 Shielding Assembly 338
Figure # 4 2 Emergency Disconnect Assembly 340
Figure # 4 3 Auxiliary Control Assembly 342
Figure # 4 4 Hand Lift/Lower and Speed Control 344
Figure # 4 5 Steering Control Assembly 346
Figure # 4 6 Idler Wheel Installation 348
Figure # 4 7 Idler Wheel Assembly 350
Figure # 4 8 Main Frame and Load Wheel Assembly 352
Figure # 4 9 Single Load Wheel Assembly 354
Figure # 4 10 5″ High Articulating Load Wheel Assembly 356
Figure # 4 11 4″ High Articulating Load Wheel Assembly 358
Figure # 5 1 Two Stage Mast Installation 360
Figure # 5 2 Two Stage Inner Column Assembly 362
Figure # 5 3 Two Stage Outer Column Assembly 364
Figure # 5 4 Two Stage Cylinder Installation 366
Figure # 5 5 Two Stage Single Reach Assembly 368
Figure # 5 6 Two Stage Single Reach Front Frame Assembly 370
Figure # 5 7 Two Stage Double Reach Assembly 372
Figure # 5 8 Two Stage Double Reach Front Frame Assembly 374
Figure # 5 9 Two Stage Sideshifter Assembly 376
Figure # 5 10 Two Stage Fork Assembly 378
Figure # 5 11 Three Stage Mast Installation 380
Figure # 5 12 Three Stage Inner Column Assembly 382
Figure # 5 13 Three Stage Freelift Cylinder Installation 384
Figure # 5 14 Three Stage Intermediate Column Assembly 386
Figure # 5 15 Three Stage Outer Column Assembly 388
Figure # 5 16 Three Stage Single Reach Assembly 390
Figure # 5 17 Three Stage Single Reach Front Frame Assembly 392
Figure # 5 18 Three Stage Double Reach Assembly 394
Figure # 5 19 Three Stage Double Reach Front Frame Assembly 396
Figure # 5 20 Three Stage Sideshifter Assembly 398
Figure # 5 21 Three Stage Fork Assembly 400
Figure # 6 1 Manlift EV-100 LX SCR Electrical Schematic 402
Figure # 6 2 Manlift EV-100 LX SCR Electrical Schematic Symbols 403
Figure # 6 3 Manlift Wiring Harness Assembly 404
Figure # 6 4 Manlift Three Stage Mast Cable Assembly 406
Figure # 6 5 Manlift Reach and Platform Cable Assembly 408
Figure # 6 6 Manlift Power Component Wiring 410
Figure # 6 7 Manlift Connector Assembly 412
Figure # 6 8 Manlift Hydraulic Schematic 414
Figure # 6 9 Manlift Hydraulic Schematic Symbols 415
Figure # 6 10 Manlift Hydraulic Diagram 416
Figure # 6 11 Blocking Manlift Valve Assembly 418
Figure # 6 12 Manlift Valve Assembly 420
Figure # 6 13 Manlift Load Backrest Installation 422
Figure # 10 1 Special Tools and Lubrications 424
Numerical Index 427
Back Cover 450
Front Cover 451
Parts Ordering Instructions 452
Field Modifications 452
General Information 453
Alphabetical Index 454
Figure # 0 1 Decals and Parts Assembly 458
Figure # 1 1 Transmission and Steering Installation 460
Figure # 1 2 Drive Motor Brake Assembly 462
Figure # 1 3 Transmission Assembly Part #1 464
Figure # 1 4 Transmission Assembly Part #2 466
Figure # 2 1 “E” EV-100LX SCR Electrical Schematic 468
Figure # 2 2 “E” EV-100LX SCR Electrical Schematic Symbols 469
Figure # 2 3 “EE” EV-100LX SCR Electrical Schematic 470
Figure # 2 4 “EE” EV-100LX SCR Electrical Schematic Symbols 471
Figure # 2 5 Wiring Assembly for Cold Storage 472
Figure # 2 6 Wiring Harness Assembly 474
Figure # 2 7 Limit Switch Wiring Assembly 476
Figure # 2 8 Two Stage Mast Cable Assembly 478
Figure # 2 9 Three Stage Mast Cable Assembly 480
Figure # 2 10 Single Reach Cable Assembly 482
Figure # 2 11 Double Reach Cable Assembly 484
Figure # 2 12 EV-100LX Power Component Wiring 486
Figure # 2 13 EV-100LX TX & TT SCR Control Panel Assembly 488
Figure # 2 14 EV-100LX Contactor Panel Assembly & Related Parts for “E” and “EE” 490
Figure # 2 15 EV-100LX Contactor Panel Assembly 492
Figure # 2 16 EV-100LX SCR Forward & Rearward Contactor Assembly 494
Figure # 2 17 EV-100LX SCR 1A Contactor Assembly 496
Figure # 2 18 Lift Pump Contactor Assembly 498
Figure # 2 19 EV-100LX SCR Auxiliary Pump Contactor Assembly 500
Figure # 2 20 Power Connector Assembly 502
Figure # 2 21 Lift Pump Motor Assembly 504
Figure # 2 22 Drive Motor Assembly 506
Figure # 2 23 Auxiliary Pump Motor Assembly 508
Figure # 2 24 Warning Light Assembly 510
Figure # 2 25 “E” EV-100LX TT SCR Electrical Schematic 512
Figure # 2 26 “E” EV-100LX TT SCR Electrical Schematic Symbols 513
Figure # 2 27 “EE” EV-100LX TT SCR Electrical Schematic 514
Figure # 2 28 “EE” EV-100LX TT SCR Electrical Schematic Symbols 515
Figure # 2 29 EV-100LX Dash Display Installation 516
Figure # 2 30 EV-100LX SCR Electrical Schematic – 3 Function Control Handle 518
Figure # 2 31 EV-100LX SCR Electrical Schematic Symbols 519
Figure # 2 32 Wiring Harness Assembly for 3 Function Control Valve 520
Figure # 3 1 Hydraulic Schematic 522
Figure # 3 2 Hydraulic Schematic Symbols 523
Figure # 3 3 Auxiliary Pump and Reservoir Assembly 524
Figure # 3 4 Auxiliary Control Valve Assembly 526
Figure # 3 5 Auxiliary Pump and Motor Assembly 528
Figure # 3 6 Auxiliary Pump Assembly 530
Figure # 3 7 Hydraulic Reservoir Assembly 532
Figure # 3 8 Steering Control Valve Assembly 534
Figure # 3 9 Steering Control Valve and Hose Assembly 536
Figure # 3 10 Steering Cylinder Assembly 538
Figure # 3 11 Two Stage Mast Hydraulic Assembly 540
Figure # 3 12 Three Stage Mast Hydraulic Assembly 542
Figure # 3 13 Single Reach, Reach Cylinder Hose Installation 544
Figure # 3 14 Single Reach Diverter Valve Assembly 546
Figure # 3 15 Single Reach, Reach Cylinder Assembly 548
Figure # 3 16 Single Reach, Tilt and Sideshift Hose Installation 550
Figure # 3 17 Single Reach, Tilt Cylinder Assembly 552
Figure # 3 18 Double Reach with Tilt and Sideshifter 554
Figure # 3 19 Double Reach Diverter Valve Assembly 556
Figure # 3 20 Double Reach, Reach Cylinder Assembly 558
Figure # 3 21 Double Reach, Tilt Cylinder Assembly 560
Figure # 3 22 Lift Pump and Reservoir Assembly 564
Figure # 3 23 Lift Pump Motor Assembly 566
Figure # 3 24 Lift Pump Assembly 568
Figure # 3 25 Lift Pump Motor Assembly, 36 Volt 570
Figure # 3 26 Lift Control Valve Assembly 572
Figure # 3 27 Two Stage Cylinder and Reservoir Assembly 574
Figure # 3 28 Two Stage Cylinder Assembly 576
Figure # 3 29 Three Stage Cylinder and Reservoir Assembly 578
Figure # 3 30 Three Stage Staging Cylinder Assembly 580
Figure # 3 31 Three Stage Freelift Cylinder Assembly 582
Figure # 3 32 Brake Linkage and Cylinder Assembly 584
Figure # 3 33 Brake Master Cylinder 586
Figure # 3 34 Drive Motor Brake Cylinder 588
Figure # 3 35 Idler Wheel Brake Cylinder 590
Figure # 3 36 Hydraulic Schematic for 3 Function Control Handle 592
Figure # 3 37 Hydraulic Schematic Symbols 593
Figure # 3 38 Auxiliary Pump & Reservoir Assembly for 3 Function Control Handle 594
Figure # 3 39 Valve Assembly 596
Figure # 3 40 Two Stage Mast Hydraulic Assembly for 3 Function Control Handle 598
Figure # 3 41 Three Stage Mast Hydraulic Assembly for 3 Function Control Handle 600
Figure # 4 1 Shielding Assembly 602
Figure # 4 2 Emergency Disconnect Assembly 604
Figure # 4 3 Auxiliary Control Assembly 606
Figure # 4 4 Hand Lift/Lower and Speed Control 608
Figure # 4 5 Steering Control Assembly 610
Figure # 4 6 Idler Wheel Installation 612
Figure # 4 7 Idler Wheel Assembly 614
Figure # 4 8 Main Frame and Load Wheel Assembly 616
Figure # 4 9 Single Load Wheel Assembly 618
Figure # 4 10 5″ High Articulating Load Wheel Assembly 620
Figure # 4 11 4″ High Articulating Load Wheel Assembly 622
Figure # 4 12 Hand Lift/Lower and Speed Control for 3 Function Control 624
Figure # 5 1 Two Stage Mast Installation 626
Figure # 5 2 Two Stage Inner Column Assembly 628
Figure # 5 3 Two Stage Outer Column Assembly 630
Figure # 5 4 Two Stage Cylinder Installation 632
Figure # 5 5 Two Stage Single Reach Assembly 634
Figure # 5 6 Two Stage Single Reach Front Frame Assembly 636
Figure # 5 7 Two Stage Double Reach Assembly 638
Figure # 5 8 Two Stage Double Reach Front Frame Assembly 640
Figure # 5 9 Two Stage Sideshifter Assembly 642
Figure # 5 10 Two Stage Fork Assembly 644
Figure # 5 11 Three Stage Mast Installation 646
Figure # 5 12 Three Stage Inner Column Assembly 648
Figure # 5 13 Three Stage Freelift Cylinder Installation 650
Figure # 5 14 Three Stage Intermediate Column Assembly 652
Figure # 5 15 Three Stage Outer Column Assembly 654
Figure # 5 16 Three Stage Single Reach Assembly 656
Figure # 5 17 Three Stage Single Reach Front Frame Assembly 658
Figure # 5 18 Three Stage Double Reach Assembly 660
Figure # 5 19 Three Stage Double Reach Front Frame Assembly 662
Figure # 5 20 Three Stage Sideshifter Assembly 664
Figure # 5 21 Three Stage Fork Assembly 666
Figure # 6 1 Remote Lift/Lower EV-100 LX SCR Electrical Schematic 668
Figure # 6 2 Remote Lift/Lower EV-100 LX SCR Electrical Schematic Symbols 669
Figure # 6 3 Manlift Wiring Harness Assembly 670
Figure # 6 4 Remote Lift/Lower Three Stage Mast Cable Assembly 672
Figure # 6 5 Remote Lift/Lower Reach and Platform Cable Assembly 674
Figure # 6 6 Remote Lift/Lower Power Component Wiring 676
Figure # 6 7 Remote Lift/Lower Connector Assembly 678
Figure # 6 8 Remote Lift/Lower Hydraulic Schematic 680
Figure # 6 9 Remote Lift/Lower Manlift Hydraulic Schematic Symbols 681
Figure # 6 10 Remote Lift/Lower Hydraulic Diagram 682
Figure # 6 11 Blocking Remote Lift/Lower Valve Assembly 684
Figure # 6 12 Remote Lift/Lower Valve Assembly 686
Figure # 6 13 Remote Lift/Lower Load Backrest Installation 688
Figure # 7 1 Battery Lift Interrupt “E” EV-100LX SCR Electrical Schematic 690
Figure # 7 2 Battery Lift Interrupt “E” EV-100LX SCR Electrical Schematic Symbols 691
Figure # 7 3 Battery Lift Interrupt “EE’ EV-100LX SCR Electrical Schematic 692
Figure # 7 4 Battery Lift Interrupt “EE” EV-100LX SCR Electrical Schematic Symbols 693
Figure # 7 5 Battery Lift Interrupt Installation 694
Figure # 10 1 Special Tools and Lubrications 696
Numerical Index 699
Back Cover 720
Front Cover 721
Alphabetical Index 723
Figure # 2 22 RR45 “E” EV-100LX SCR Electrical Schematic 724
Figure # 2 23 RR45 “E” EV-100LX SCR Electrical Schematic Symbols 725
Figure # 2 24 RR45 “EE” EV-100LX SCR Electrical Schematic 726
Figure # 2 25 Electrical Schematic Symbols 727
Figure # 2 26 EV-100LX Wiring Assembly for Cold Storage 728
Figure # 2 27 EV-100LX Control Wiring Harness and Related Parts 730
Figure # 2 28 EV-100LX Limit Switch Wiring Harness Assembly 732
Figure # 2 29 EV-100LX Two Stage Mast Cable Assembly 734
Figure # 2 30 EV-100LX Three Stage Mast Cable Assembly 736
Figure # 2 31 EV-100LX Single Reach Cable Assembly 738
Figure # 2 32 EV-100LX Double Reach Cable Assembly 740
Figure # 2 33 EV-100LX Power Component Wiring 742
Figure # 2 34 EV-100LX SCR Control Panel 744
Figure # 2 35 EV-100LX Contactor Panel Assembly & Related Parts for “E” and “EE” 746
Figure # 2 36 EV-100LX Contactor Panel Assembly 748
Figure # 2 37 EV-100LX Forward & Rearward Contactor Assembly 750
Figure # 2 38 EV-100LX 1A Contactor Assembly 752
Figure # 2 39 EV-100 SCR Lift Pump Contactor Assembly 754
Figure # 2 40 EV-100LX Auxiliary Pump Contactor Assembly 756
Figure # 2 41 EV-100LX Power Connector Assembly 758
Figure # 2 42 24 & 36 Volt Pump Motor Assembly 760
Figure # 2 43 24 & 36 Volt Drive Motor Assembly 762
Figure # 2 44 Ohio Pump Motor Assembly 764
Numerical Index 767
Back Cover 772
Figure # 2 19 Lift Pump Motor Assembly 773
Figure # 3 1 Hydraulic Schematic 775
Figure # 3 2 Hydraulic Schematic Symbols 776
Figure # 3 13 “Z” Lift Pump and Reservoir Assembly 777
Figure # 3 20 Hydraulic Reservoir Assembly 779
Figure # 3 27 Lift Pump and Motor Assembly 781
Figure # 3 28 “Z” Lift Pump Assembly 783

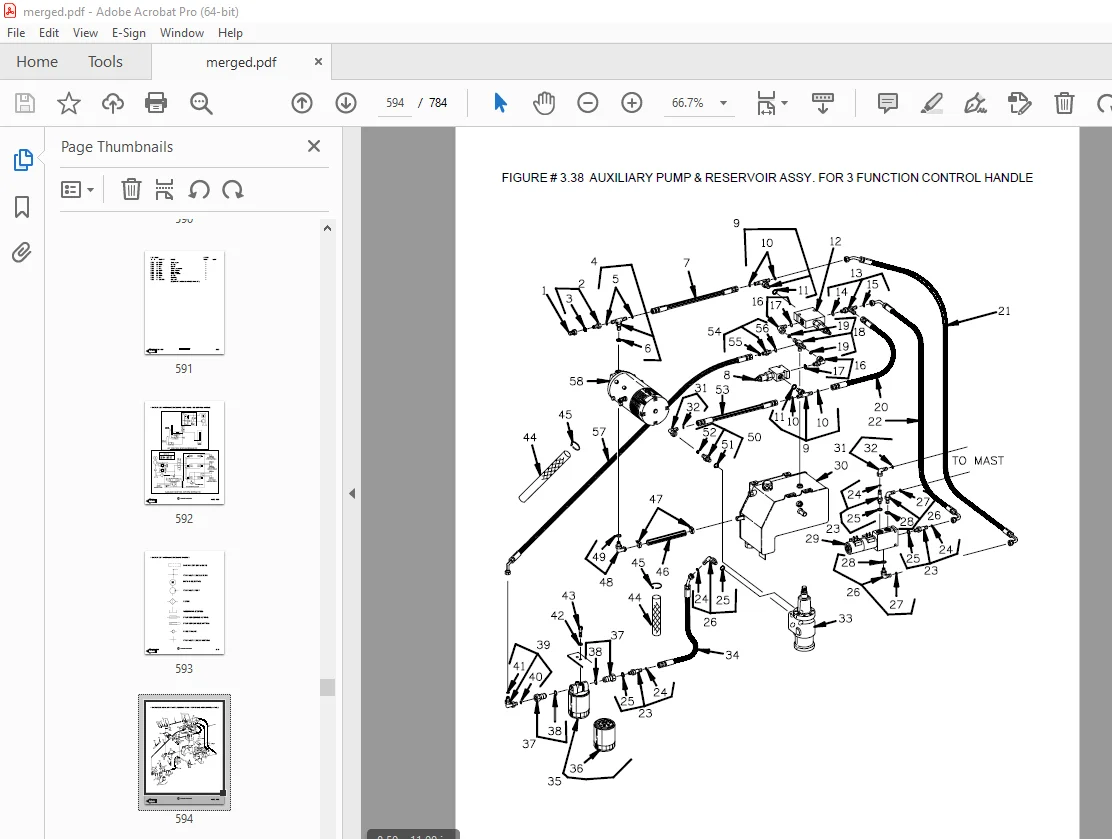

DESCRIPTION:

BT Prime-Mover RR-45 Reach Truck Parts Manual – PDF DOWNLOAD

Manual Number 9002
Manual Part Number 300378-000
Effective Serial Number  RR45170373

PARTS ORDERING INSTRUCTIONS:

HOW TO ORDER:

• When you order, supply the part number, quantity, model and serial numbers of your machine. Supplying this information will assure prompt, efficient handling of your order. The pictorial reference number is not needed and including it can only add confusion.
• Since your dealer carries many parts in stock and maintains up-to-date prices on all parts, he will be able to process your order immediately. If, for some reason, the part is not in stock, he will order it from the factory. In either event, he maintains a current file of service manuals, which give all available parts ordering or technical information.
• All prices are FOB factory in Muscatine, Iowa. Shipping charges are added to the price of the part shipping from the factory.

WHERE TO ORDER:
Always order parts from the dealer who sold you your PRIME-MOVER. If it is necessary for the dealer to order parts from the factory, he is able to get prompt service for you. Parts are shipped in accordance with shipping instructions given on the order.

S.V 01/02/2025
