BT Prime-Mover RR-30 RR-34 Electric Reach Truck Part Manual PDF

Description

BT Prime-Mover RR-30 RR-34 Electric Reach Truck Part Manual – PDF DOWNLOAD

FILE DETAILS:

BT Prime-Mover RR-30 RR-34 Electric Reach Truck Part Manual – PDF DOWNLOAD

Language : English
Pages : 194
Downloadable : Yes
File Type : PDF

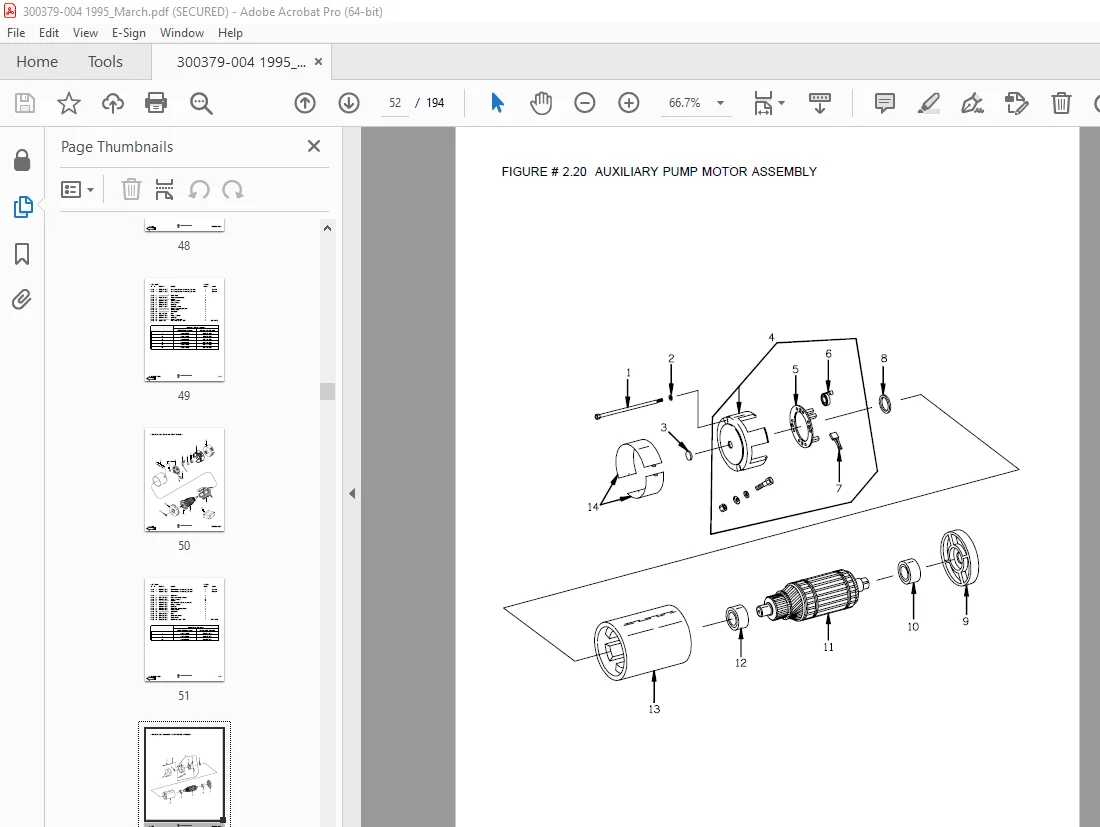

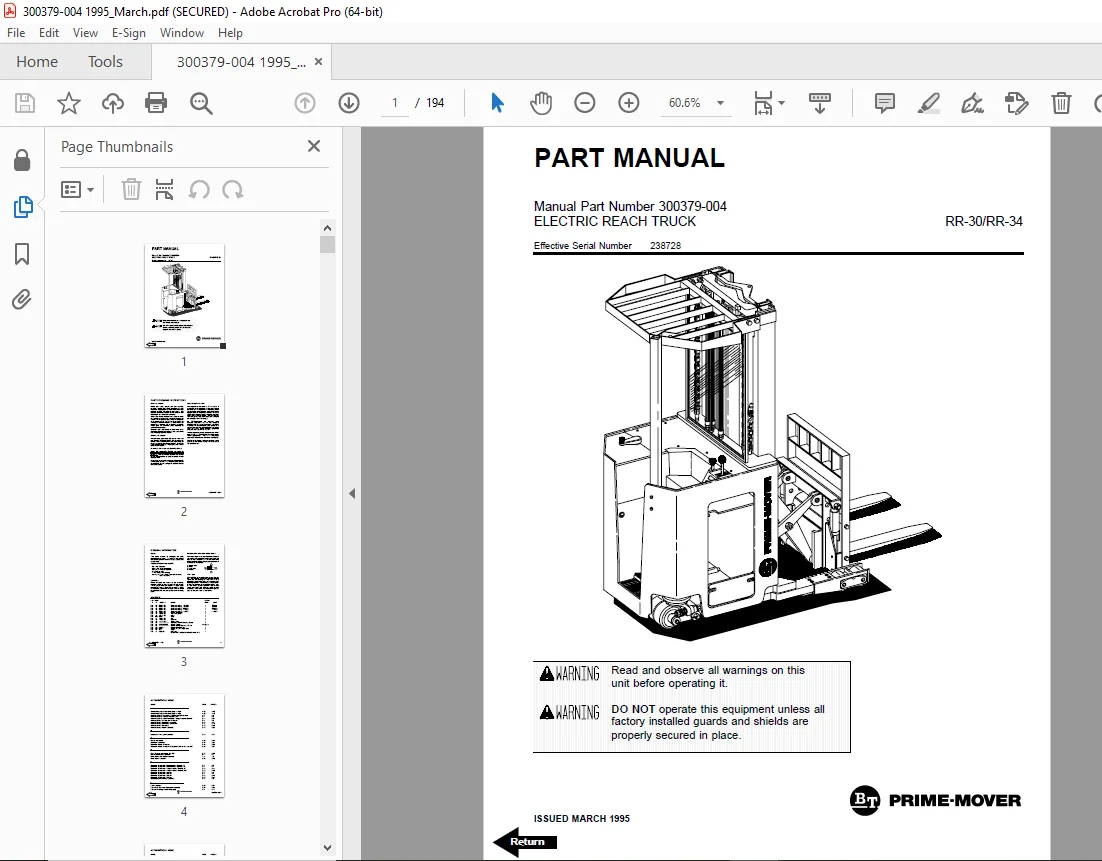

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

BT Prime-Mover RR-30 RR-34 Electric Reach Truck Part Manual – PDF DOWNLOAD

Manual Part Number 300379-004
Effective Serial Number 238728

Front Cover 1
Parts Ordering Instructions 2
General Information 3
Alphabetical Index 4
Section 0 0 8
Figure # 0 1 Decals and Parts Assembly 8
Section 1 0 10
Figure # 1 1 Transmission and Drive Motor Installation 10
Figure # 1 2 Drive Motor and Brake Assembly 12
Figure # 1 3 Transmission Assembly Part # I 14
Figure # 1 4 Transmission Assembly Part # II 16
Section 2 0 18
Figure # 2 1 TX Electrical Schematic – Multi-Function Control 18
Figure # 2 2 Electrical Schematic Symbols 19
Figure # 2 3 TT Electrical Schematic – Multi-Function Control 20
Figure # 2 4 Electrical Schematic Symbols 21
Figure # 2 5 Wiring Assembly for Cold Storage 22
Figure # 2 6 Lift Control Wiring Harness – Multi-Function Control 24
Figure # 2 7 Limit Switch Wiring Assembly 26
Figure # 2 8 Two Stage Mast Cable Assembly 28
Figure # 2 9 Three Stage Mast Cable Assembly 30
Figure # 2 10 Reach Cable Assembly 32
Figure # 2 11 Power Component Wiring 34
Figure # 2 12 SCR Control Panel 36
Figure # 2 13 Contactor Panel Assembly & Related Parts for “E” and “EE” 38
Figure # 2 14 Contactor Panel Assembly 40
Figure # 2 15 Forward & Rearward Contactor Assembly 42
Figure # 2 16 Contactor Assembly 44
Figure # 2 17 Power Connector Assembly 46
Figure # 2 18 Lift Pump Motor Assembly 48
Figure # 2 19 Drive Motor Assembly 50
Figure # 2 20 Auxiliary Pump Motor Assembly 52
Figure # 2 21 Warning Light and Work Light Assembly 54
Figure # 2 22 EV-100LX Dash Display Installation 56
Figure # 2 23 “E” Electrical Schematic – Single Function Control 58
Figure # 2 24 Electrical Schematic Symbols 59
Figure # 2 25 “EE” Electrical Schematic – Single Function Control 60
Figure # 2 26 Electrical Schematic Symbols 61
Figure # 2 27 Lift Control Wiring Harness – Single Function Control 62
Figure # 2 28 Battery Lift Interrupt Installation 64
Section 3 0 66
Figure # 3 1 Hydraulic Schematic 66
Figure # 3 2 Hydraulic Schematic Symbols 67
Figure # 3 3 Auxiliary Pump & Reservoir Assembly 68
Figure # 3 4 Auxiliary Control Valve & Related Parts 70
Figure # 3 5 Two Stage Mast Hydraulic Assembly 72
Figure # 3 6 Three Stage Mast Hydraulic Assembly 74
Figure # 3 7 Reach Cylinder Hose Installation 76
Figure # 3 8 Tilt and Sideshift Hose Installation 78
Figure # 3 9 Lift Pump and Reservoir Assembly 80
Figure # 3 10 Two Stage Cylinder and Reservoir Assembly 82
Figure # 3 11 Two Stage Cylinder Assembly 84
Figure # 3 12 Three Stage Cylinder & Reservoir Assembly – RR-30 86
Figure # 3 13 Three Stage Cylinder & Reservoir Assembly – RR-34 88
Figure # 3 14 Three Stage Staging Cylinder Assembly 90
Figure # 3 15 Three Stage Freelift Cylinder Assembly 92
Figure # 3 16 Hydraulic Reservoir Assembly 94
Figure # 3 17 Auxiliary Control Valve Assembly – Single Function Control 96
Figure # 3 18 Lift Control Valve Assembly 98
Figure # 3 19 Valve Assembly – Multi-Function Control 100
Figure # 3 20 Reach Diverter Valve Assembly 102
Figure # 3 21 Torque Generator Assembly 104
Figure # 3 22 Lift Pump & Motor Assembly 106
Figure # 3 23 Lift Pump Assembly 108
Figure # 3 24 Lift Pump Assembly, 36 Volt “E” 110
Figure # 3 25 Auxiliary Pump and Motor Assembly 112
Figure # 3 26 Auxiliary Pump Assembly 114
Figure # 3 27 Reach Cylinder Assembly 116
Figure # 3 28 Tilt Cylinder Assembly 118
Section 4 0 120
Figure # 4 1 Shielding Assembly 120
Figure # 4 2 Emergency Disconnect Assembly 122
Figure # 4 3 Auxiliary Control Assembly – Single Function Control 124
Figure # 4 4 Hand Lift/Lower and Speed Control – Multi-Function Control 126
Figure # 4 5 Hand Lift/Lower and Speed Control – Single Function Control 128
Figure # 4 6 Forward Steering Control Assembly 130
Figure # 4 7 Rearward Steering Control Assembly 132
Figure # 4 8 Auxiliary Pump and Motor Installation 134
Figure # 4 9 Main Frame and Load Wheel Assembly 136
Figure # 4 10 5″ High Articulating Load Wheel Assembly 138
Figure # 4 11 Single Load Wheel Assembly 140
Figure # 4 12 4″ High Articulating Load Wheel Assembly 142
Figure # 4 13 Caster Assembly 144
Section 5 0 146
Figure # 5 1 Two Stage Mast Installation 146
Figure # 5 2 Two Stage Inner Column Assembly 148
Figure # 5 3 Two Stage Outer Column Assembly 150
Figure # 5 4 Two Stage Cylinder Installation 152
Figure # 5 5 Three Stage Mast Installation 154
Figure # 5 6 Three Stage Inner Column Assembly 156
Figure # 5 7 Three Stage Freelift Cylinder Installation 158
Figure # 5 8 Three Stage Intermediate Column Assembly 160
Figure # 5 9 Three Stage Outer Column Assembly 162
Figure # 5 10 Reach Assembly 164
Figure # 5 11 Reach Front Frame Assembly 166
Figure # 5 12 Sideshifter Assembly 168
Figure # 5 13 Fork Assembly 170
Section 10 0 172
Figure # 10 1 Special Tools and Lubrications 172
Numerical Index 175
Back Cover 194

DESCRIPTION:

BT Prime-Mover RR-30 RR-34 Electric Reach Truck Part Manual – PDF DOWNLOAD

Manual Part Number 300379-004
Effective Serial Number 238728

PARTS ORDERING INSTRUCTIONS:

HOW TO ORDER:

• When you order, supply the part number, quantity, model and serial numbers of your machine. Supplying this information will assure prompt, efficient handling of your order. The pictorial reference number is not needed and including it can only add confusion.
• Since your dealer carries many parts in stock and maintains up-to-date prices on all parts, he will be able to process your order immediately. If, for some reason, the part is not in stock, he will order it from the factory. In either event, he maintains a current file of service manuals, which give all available parts ordering or technical information.
• All prices are FOB factory in Muscatine, Iowa. Shipping charges are added to the price of the part shipping from the factory.

WHERE TO ORDER:
Always order parts from the dealer who sold you your BT PRIME-MOVER. If it is necessary for the dealer to order parts from the factory, he is able to get prompt service for you. Parts are shipped in accordance with shipping instructions given on the order.
