BT Prime-Mover RMX HMX Electric Low Lift Pallet Truck Parts Manual – PDF DOWNLOAD
FILE DETAILS:
BT Prime-Mover RMX HMX Electric Low Lift Pallet Truck Parts Manual – PDF DOWNLOAD
Language : English
Pages : 122
Downloadable : Yes
File Type : PDF

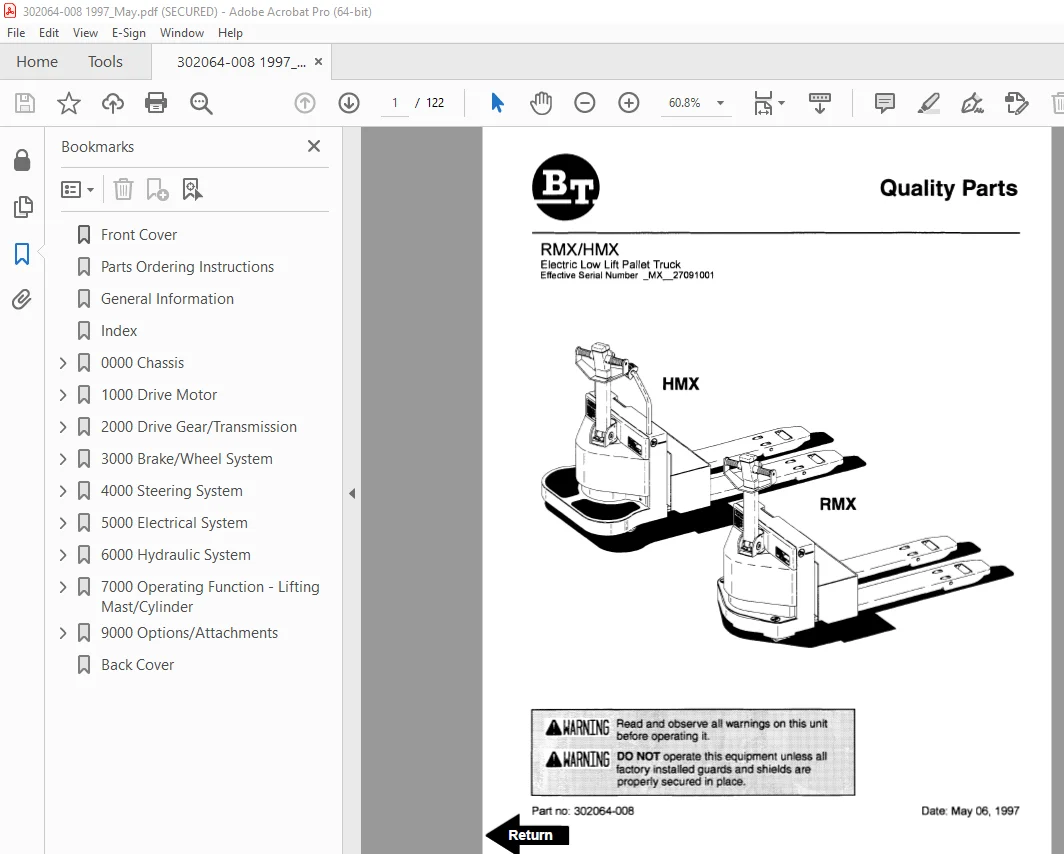

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
BT Prime-Mover RMX HMX Electric Low Lift Pallet Truck Parts Manual – PDF DOWNLOAD
Effective Serial Number _MX_27091001
Part no: 302064-008
Front Cover 1
Parts Ordering Instructions 2
General Information 3
Index 5
0000 Chassis 8
0300-000 Frame/Chassis 9
0340-007 Inspection Covers (Shields & Guards) 13
0340-018 Inspection Covers (“EE” Electrical Box) 15
0340-019 Inspection Covers (Splash Guard) 17
0390-003 Battery Compartment Parts 19
0640-016 Drivers Controls (Speed & Direction) 21
0640-020 Drivers Controls (Hand Rail) 23
0640-015 Drivers Protection (Reverser) 25
0850-004 Signs, Warnings 27
1000 Drive Motor 28
1700-004 Electrical Drive Motor (24 Volt 300/400 Amp Traction System) 29
1700-006 Electrical Drive Motor (12 Volt) 31
2000 Drive Gear/Transmission 32
2550-002 Mechanical Drive Gear Unit 33
3000 Brake/Wheel System 34
3300-002 Parking Brake System 35
3360-000 Brake Drum/Disc Assembly 37
3530-001 Drive Wheel 39
3540-004 Support/Swivel Wheel 41
3550-006 Fork/Support Arm/Outrigger Wheels 43
3560-002 Stabilizer Wheel 45
3560-003 Stabilizer Wheel (Spring Loaded) 47
3580-000 Guide Wheels 49
4000 Steering System 50
4110-010 Steering Arm/Wheel (Tiller Arm) 51
4110-011 Steering Arm/Wheel (Control Head Assembly) 53
4110-020 Steering Arm/Wheel (Walk Along Knob Control Head Assembly) 55
4180-001 Steering/Radial Bearing 57
5000 Electrical System 58
5160-013 General Alarm Signal 59
5180-004 Current Collector, Cable Drum 61
5190-011 Battery Cut Out Contactor/Plug (300/400 Amp Traction System) 63
5190-014 Battery Cut Out Contactor/Plug (Battery Connector) 65
5230-003 Voltage/Battery Indicator 67
5290-001 Hourmeter/Speedometer 69
5310-017 Start/Stop Switch 71
5330-011 Speed Controls 73
5360-001 Relay, Electrical Modules (12 Volt) 75
5390-003 Control Cables/Harness 77
5390-031 Control Cables/Harness (24 Volt, 300 Amp System) 79
5390-032 Control Cables/Harness (12 Volt RMX) 81
5390-033 Control Cables/Harness (24 Volt, 400 Amp System) 83
5430-018 Motor Cables, Resistors (24 Volt, 300 Amp System) 85
5430-019 Motor Cables, Resistors (12 Volt RMX) 87
5430-021 Motor Cables, Resistors (24 Volt, 400 Amp System) 89
5435-003 Contactor Panel (12 Volt, RMX) 91
5440-001 Direction Contactors 93
5460-018 Transistor Panel (24 Volt, 300 Amp System) 95
5460-019 Transistor Panel (24 Volt, 400 Amp System) 97
5460-020 Transistor Panel (12 Volt) 99
5510-011 Micro Switches 101
5810-012 Pump Motor (12 Volt) 103
5810-013 Pump Motor (24 Volt) 105
6000 Hydraulic System 106
6100-020 Hydraulic Pump 107
6125-017 Hoses, Pipes, Connections, Mounting Points 109
7000 Operating Function – Lifting Mast/Cylinder 110
7310-011 Lift Cylinder 111
7400-000 Lift and Carrying Devices (Tilting Package Guard) 113
7400-001 Lift and Carrying Devices (Removable Load Backrest) 115
9000 Options/Attachments 116
9660-007 Electrical Heater (24 Volt) 117
9660-008 Electrical Heater 119
9910-000 Electrical Controllers (Handset) 121
Back Cover 122
DESCRIPTION:
BT Prime-Mover RMX HMX Electric Low Lift Pallet Truck Parts Manual – PDF DOWNLOAD
Effective Serial Number _MX_27091001
Part no: 302064-008
PARTS ORDERING INSTRUCTIONS:
HOW TO ORDER:
- When you order, supply the part number, quantity, model and serial numbers of your machine. Supplying this information will assure prompt, efficient handling of your order. The pictorial reference number is not needed and including it can only add confusion.
- Since your dealer carries many parts in stock and maintains up-to-date prices on all parts, he will be able to process your order immediately. If, for some reason, the part is not in stock, he will order it from the factory. In either event, he maintains a current file of service manuals, which give all available parts ordering or technical information.
- All prices are FOB factory in Muscatine, Iowa. Shipping charges are added to the price of the part shipping from the factory.
WHERE TO ORDER
Always order parts from the dealer who sold you your BT. If it is necessary for the dealer to order parts from the factory, he is able to get prompt service for you. Parts are shipped in accordance with shipping instructions given on the order.
S.V 04/02/2025
