BT Prime-Mover RCX Electric Stand-Up Rider Truck Operator’s Manual PDF
$26.95
BT Prime-Mover RCX Electric Stand-Up Rider Truck Operator’s Manual – PDF DOWNLOAD
RCX25,RCX30C,RCX30,RCX35 RCX40,RCX45,RCX50
304419-000 1995_June
Description
BT Prime-Mover RCX Electric Stand-Up Rider Truck Operator’s Manual – PDF DOWNLOAD
FILE DETAILS:
BT Prime-Mover RCX Electric Stand-Up Rider Truck Operator’s Manual – PDF DOWNLOAD
Language : English
Pages : 109
Downloadable : Yes
File Type : PDF

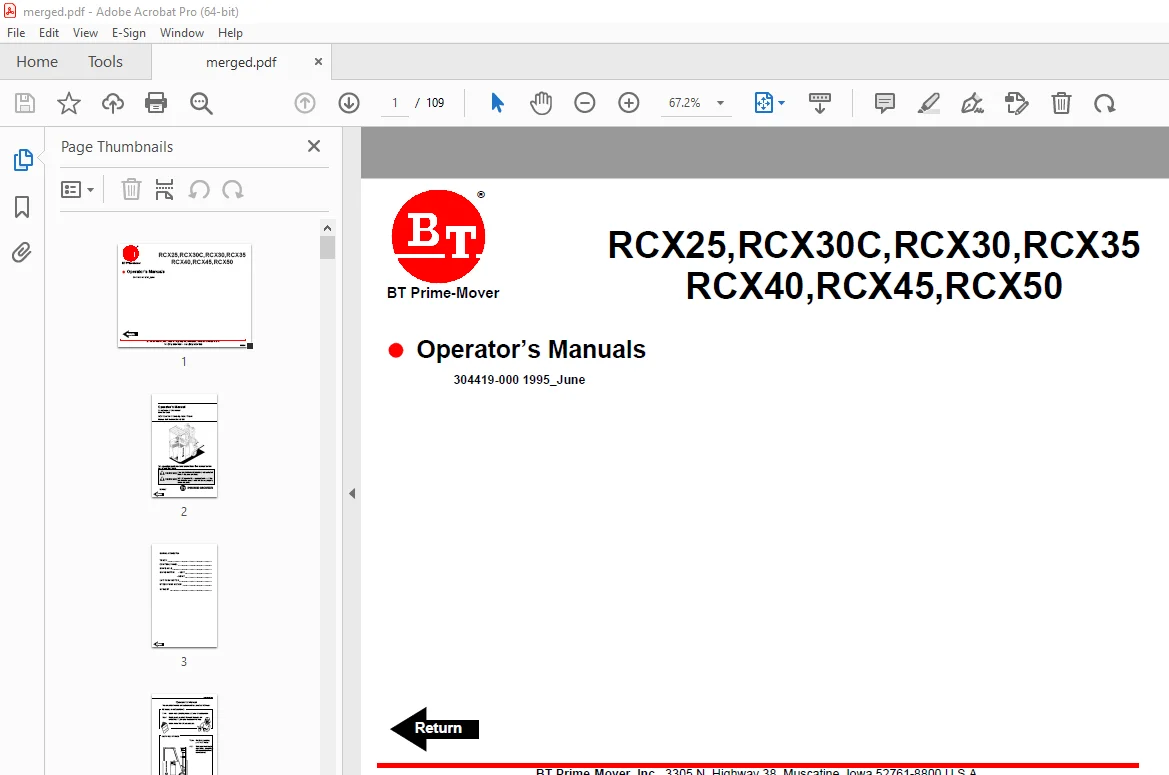

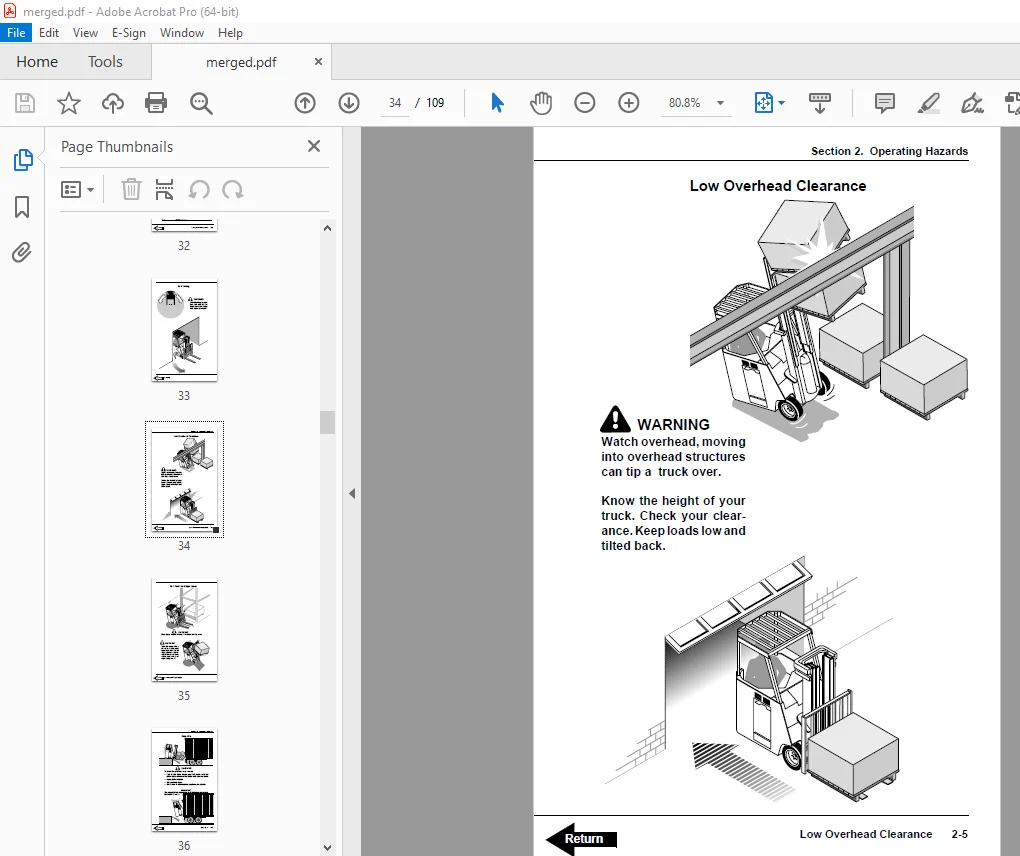

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
BT Prime-Mover RCX Electric Stand-Up Rider Truck Operator’s Manual – PDF DOWNLOAD
Serial Numbers 3
Introduction 4
A Message to Prime-Mover Lift Truck Operators 5
Contents 8
Introduction 9
Routine Servicing and Maintenance 9
User Daily Inspection – Safety and Operating Checks 10
Planned Maintenance 10
How To Use This Manual 11
Safety Signs and Safety Messages 13
Truck Application 14
Section 1 – General Safety Rules 16
Contents 16
Daily Inspection 17
Do’s and Don’ts 18
Tip Over 19
No Riders 20
Pedestrians 21
Operator Protection 22
Fork Safety 23
Pinch Points 24
Travel 25
Grades, Ramps, Slopes and Inclines 26
Surface and Capacities 27
Loading Docks 28
Parking 29
Section 2 – Operating Hazards 30
Contents 30
Loose Loads 31
Long and Wide Loads 32
Rear Swing 33
Low Overhead Clearance 34
Fast Turns and High Loads 35
Drop Offs 36
Right-Angle Stacking 37
Chain Slack 38
Pallets and Skids 39
UL Construction Type 40
Towing 41
Section 3 – Know Your Truck 42
Contents 42
Truck Model Description 43
Truck Data and Capacity Plate 44
Safety Warning Decal 45
Type Designation 46
UL Classification Label 46
Battery Disconnect Decal 46
Battery Connector Warning Decal 46
Upright Warning Decal 47
Keep Away From Forks Decal 47
Multi Function Handle Decal 47
Operator Compartment Layout 48
Instrument Panel 49
Diagnostic Display 49
Multi-Function Handle 50
Plugging 50
Brake System 50
Lift Control 51
Tilt Control 51
Auxiliary Valve Control 51
Horn Button 51
Electrical Circuit 52
Section 4 – Daily Safety Inspection 54
Contents 54
Inspecting Your Truck 55
Visual Checks 56
Functional Checks 57
Concluding the Inspection 58
Section 5 – Operating Procedures 60
Contents 60
Before Operating the Truck 61
Starting from a Safe Condition 62
Starting the Truck 62
Using the Diagnostic Display 63
Positioning Forks and Upright 64
Controlling Speed 65
Plugging (Electric Braking) 65
Parking Brake 65
Operating Safely 66
Adjusting the Load Forks 69
Load Handling 69
Traveling with a Load 70
Picking Up and Moving Loads 71
Unloading 72
Stacking 73
After Operating the Truck 75
Section 6 – Planned Maintenance 76
Contents 76
Lift Truck Maintenance 77
Planned Maintenance 77
Planned Maintenance Intervals 78
Component Locations 79
Daily Maintenance Checks 80
Periodic Maintenance Checks 81
Safe Maintenance Practices 82
PM Report Form 86
Visual Inspection 87
Overhead Guard 88
Load Backrest 88
Upright Assembly 88
Lift Chain 88
Forks 89
Wheels and Tires 90
Functional Tests 90
Diagnostic Display 91
Parking Brakes 92
Lift Mechanisms and Controls 93
Auxiliary Controls 93
Steering System 94
Direction Control and Brakes 94
SCR Traction Control 95
Checking the Hydraulic Fluid 96
Air Cleaning the Truck 97
Electric Truck Battery Maintenance 98
Battery Handling 99
Battery Charging 100
Battery Removal from Truck 101
Battery Cleaning and Care 102
Battery Service Records 102
How to Get Maximum Battery Life 103
Battery Installation 103
Section 7 – Specifications 104
Index 106
Back Cover 109
DESCRIPTION:
BT Prime-Mover RCX Electric Stand-Up Rider Truck Operator’s Manual – PDF DOWNLOAD
- PRIME-MOVER welcomes you to the growing group of professionals
who own, operate, and maintain PRIME-MOVER lift trucks. We take
pride in the long tradition of quality products and superior value that the
PRIME-MOVER name represents. This manual will familiarize you with
safety, operating, and maintenance information about your new lift
truck. It has been specially prepared to help you use and maintain your
PRIME-MOVER lift truck in a safe and correct manner. - Your PRIME-MOVER lift truck has been designed and built to be as safe
and efficient as today’s technology can make it. As manufactured, it
meets all the applicable mandatory requirements of ANSI B56.1 -1988
Safety Standard for Powered Industrial Trucks. Each truck is also
furnished with equipment to help you operate safely; e.g., parking brake
and horn as standard equipment. - Safe, productive operation of a lift truck requires both skill and knowledge
on the part of the operator. The operator must know, understand,
and practice the safety rules and safe driving and load handling
techniques described in this manual. To develop the skill required, the
operator must become familiar with the construction and features of the
lift truck and how they function. The operator must understand its
capabilities and limitations, and see that it is kept in a safe condition.
How to Use this Manual:
The purpose of this manual is to provide a digest of essential information
about the safe operation of your lift truck and to acquaint you with its
features, how they function, and how they are maintained. This manual
is organized into seven major parts for easy reference:
Section 1, General Safety Rules, reviews and illustrates accepted
practices for safe operation of a lift truck.
Section 2, Operating Hazards, warns of conditions that could cause
damage to the truck or injury to the operator or other personnel.
Section 3, Know Your Truck, describes the major operating components,
systems, controls, and other features of your truck and tells how
they function.
Section 4, Daily Safety Inspection, presents added details on how to
perform the operator’s daily safety inspection.
Section 5, Operating Procedures, discusses more specific instructions
on the safe, efficient operation of your lift truck.
Section 6, Planned Maintenance, describes the PM program.
Section 7, Specifications, provides reference information and data on
features, components, and maintenance items.
Also, the Index helps you locate information about various topics.
