BT-Prime Mover CSX Electric Counter Balanced Stacker Truck Parts Manual PDF

Description

BT-Prime Mover CSX Electric Counter Balanced Stacker Truck Parts Manual – PDF DOWNLOAD

FILE DETAILS:

BT-Prime Mover CSX Electric Counter Balanced Stacker Truck Parts Manual – PDF DOWNLOAD

Language : English
Pages : 176
Downloadable : Yes
File Type : PDF

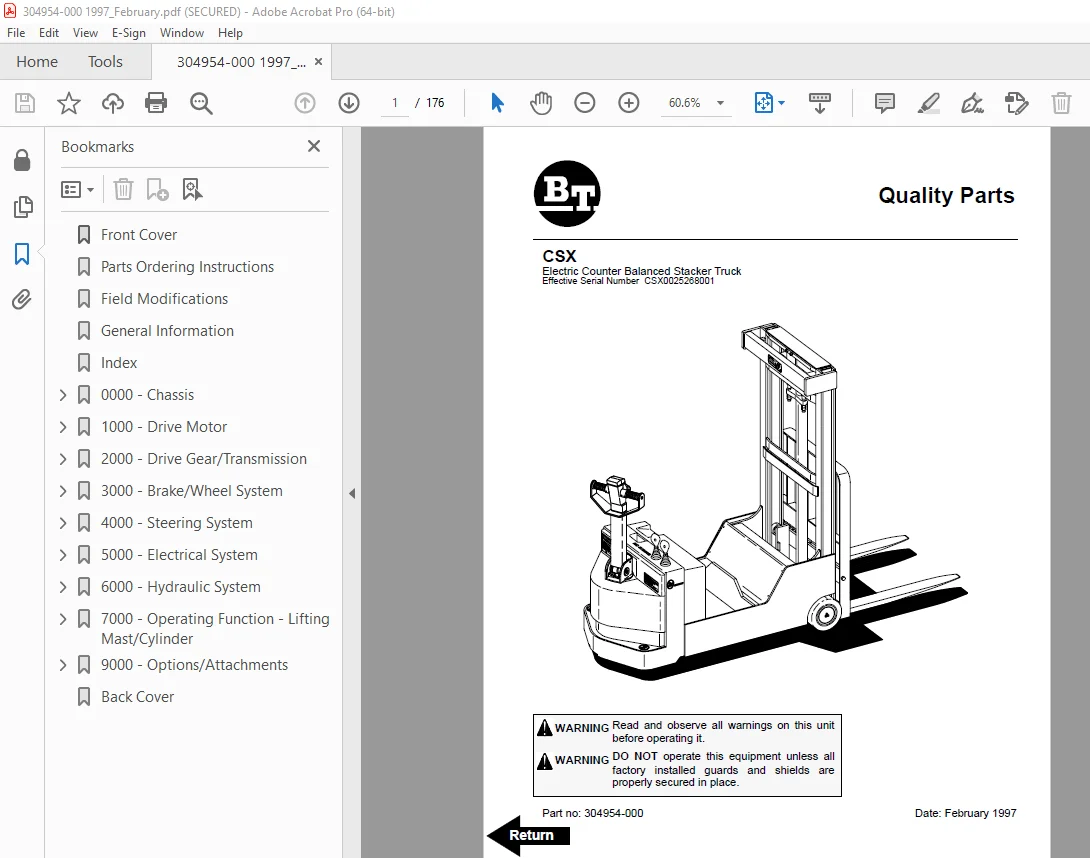

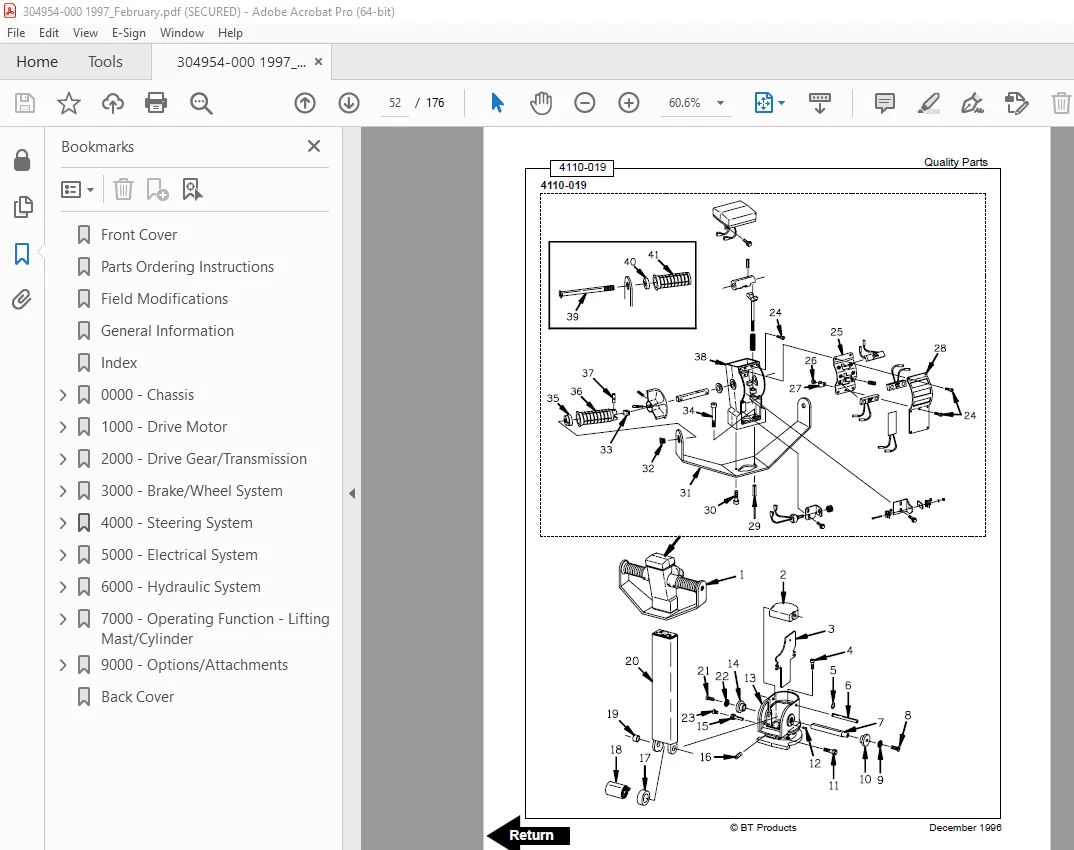

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

BT-Prime Mover CSX Electric Counter Balanced Stacker Truck Parts Manual – PDF DOWNLOAD

Manual Part no: 304954-000
Effective Serial Number CSX0025268001

Front Cover 1
Parts Ordering Instructions 2
Field Modifications 2
General Information 3
Index 5
0000 – Chassis 10
0300-005 Frame/Chassis 11
0340-002 Inspection Covers (“EE” electrical box) 13
0340-005 Inspection Covers (shields & guards) 15
0370-001 Counter Balance Weight 17
0390-000 Battery Compartment Parts (7″ battery) 19
0390-001 Battery Compartment Parts (13 3″ battery) 21
0640-003 Drivers Controls (one spool valve handle) 23
0640-005 Drivers Controls (two spool valve handle) 25
0640-016 Drivers Controls (speed & direction) 27
0840-011 Driver Protection 29
0850-002 Signs, Warnings 31
1000 – Drive Motor 32
1700-002 Electrical Drive Motor (200AMP traction system) 33
1700-004 Electrical Drive Motor (300AMP traction system) 35
2000 – Drive Gear/Transmission 36
2550-001 Mechanical Drive Gear Unit 37
3000 – Brake/Wheel System 38
3300-000 Parking Brake System (200AMP traction system) 39
3300-001 Parking Brake System (300AMP traction system) 41
3360-000 Brake Drum/Disc Assembly 43
3530-000 Drive Wheel 45
3540-001 Support/Swivel Wheel 47
3550-001 Fork/Support Arm Wheels 49
3560-001 Stabilizer Wheel 51
4000 – Steering System 52
4110-019 Steering Arm/Wheel 53
4180-001 Steering/Radial Bearing 55
5000 – Electrical System 56
5160-011 General Alarm Signal 57
5180-000 Current Collector, Cable Drum 59
5190-009 Battery Cut Out Contactor/Plug (battery connector) 61
5190-010 Battery Cut Out Contactor/Plug (200AMP traction system) 63
5230-002 Voltage/Battery Indicator 67
5290-001 Hourmeter/Speedometer 69
5310-017 Start/Stop Switch 71
5330-011 Speed Controls 73
5390-001 Control Cables/Harnesses 75
5430-011 Motor Cables, Resistors (200AMP traction system) 77
5430-013 Motor Cables, Resistors (300AMP traction system) 79
5460-014 Transistor Panel (300AMP traction system) 81
5460-015 Transistor Panel (200AMP traction system) 83
5510-010 Micro Switches 85
5550-001 Electromagnetic Valve 87
5590-002 Control Cables, Harness 89
5610-001 Pump Contactor 91
5810-002 Pump Motor 93
6000 – Hydraulic System 94
6100-000 Hydraulic Pump (Model # DM-1005) 95
6100-001 Hydraulic Pump (Model # DM-1006) 97
6110-001 Hydraulic Tank 99
6120-001 Hoses, Pipes, Connections, Mounting Points (one spool valve) 101
6120-002 Hoses, Pipes, Connections, Mounting Points (two spool valve) 103
6125-000 Hoses, Pipes, Connections, Mounting Points (two stage mast) 105
6125-001 Hoses, Pipes, Connections, Mounting Points (two stage full freelift) 107
6125-002 Hoses, Pipes, Connections, Mounting Points (two stage mast) 109
6125-013 Hoses, Pipes, Connections, Mounting Points (three stage mast) 111
6125-014 Hoses, Pipes, Connections, Mounting Points (two stage mast) 113
6160-001 Control Valve (one spool control valve) 115
6160-002 Control Valve (two spool control valve) 117
6170-001 Pressure/Flow Control Valve 119
7000 – Operating Function – Lifting Mast/Cylinder 120
7105-000 Mast Pivot 121
7110-006 Mast Section (two stage mast) 123
7110-007 Mast Section (two stage mast) 125
7110-008 Mast Section (two stage full freelift mast) 127
7110-009 Mast Section (three stage mast) 129
7170-000 Lifting Gear (two stage full freelift mast) 131
7170-001 Lifting Gear (two stage mast) 133
7170-002 Lifting Gear (two/three stage mast) 135
7210-001 Sideshifter/Fork Spreader 137
7310-001 Lift Cylinder (two stage mast) 139
7310-002 Lift Cylinder (two stage mast) 141
7310-003 Lift Cylinder (two stage full freelift staging cylinder) 143
7310-004 Lift Cylinder (two stage full freelift, freelift cylinder) 145
7310-005 Lift Cylinder (three stage mast freelift cylinder) 147
7310-006 Lift Cylinder (three stage mast staging cylinder) 149
7320-000 Tilt Cylinder 151
7410-001 Fork, Carpet Boom, Hook 153
7420-001 Fork Carriage Unit (two stage mast) 155
7420-002 Fork Carriage Unit (two stage mast) 157
7420-003 Fork Carriage Unit (two stage full freelift mast) 159
7420-004 Fork Carriage Unit (three stage mast) 161
9000 – Options/Attachments 162
9100-002 Attachments (auxiliary/sideshifter two stage mast) 163
9100-003 Attachments (auxiliary/sideshifter three stage mast) 165
9370-003 Warning Lights/Alarm 167
9390-000 Positioning Equipment 169
9500-006 Extra Mechanical Equipment 171
9660-000 Electrical Heater 173
9910-000 Electrical Controllers (handset) 175
Back Cover 176

DESCRIPTION:

BT-Prime Mover CSX Electric Counter Balanced Stacker Truck Parts Manual – PDF DOWNLOAD

Manual Part no: 304954-000
Effective Serial Number CSX0025268001

PARTS ORDERING INSTRUCTIONS
HOW TO ORDER

• When you order, supply the part number, quantity, model and serial numbers of your machine. Supplying this information will assure prompt, efficient handling of your order. The pictorial reference number is not needed and including it can only add confusion.
• Since your dealer carries many parts in stock and maintains up-to-date prices on all parts, he will be able to process your order immediately. If, for some reason, the part is not in stock, he will order it from the factory. In either event, he maintains a current file of service manuals, which give all available parts ordering or technical information.
• All prices are FOB factory in Muscatine, Iowa. Shipping charges are added to the price of the part shipping from the factory.

WHERE TO ORDER
Always order parts from the dealer who sold you your BT Prime-Mover. If it is necessary for the dealer to order parts from the factory, he is able to get prompt service for you. Parts are shipped in accordance with shipping instructions given on the order.
