BT Forklift RRX Electric Reach Truck Operator’s Manual 306754-000 – PDF DOWNLOAD

Description

BT Forklift RRX Electric Reach Truck Operator’s Manual 306754-000 (January 1997) – PDF DOWNLOAD

FILE DETAILS:

BT Forklift RRX Electric Reach Truck Operator’s Manual 306754-000 (January 1997) – PDF DOWNLOAD

Language : English
Pages : 82
Downloadable : Yes
File Type : PDF

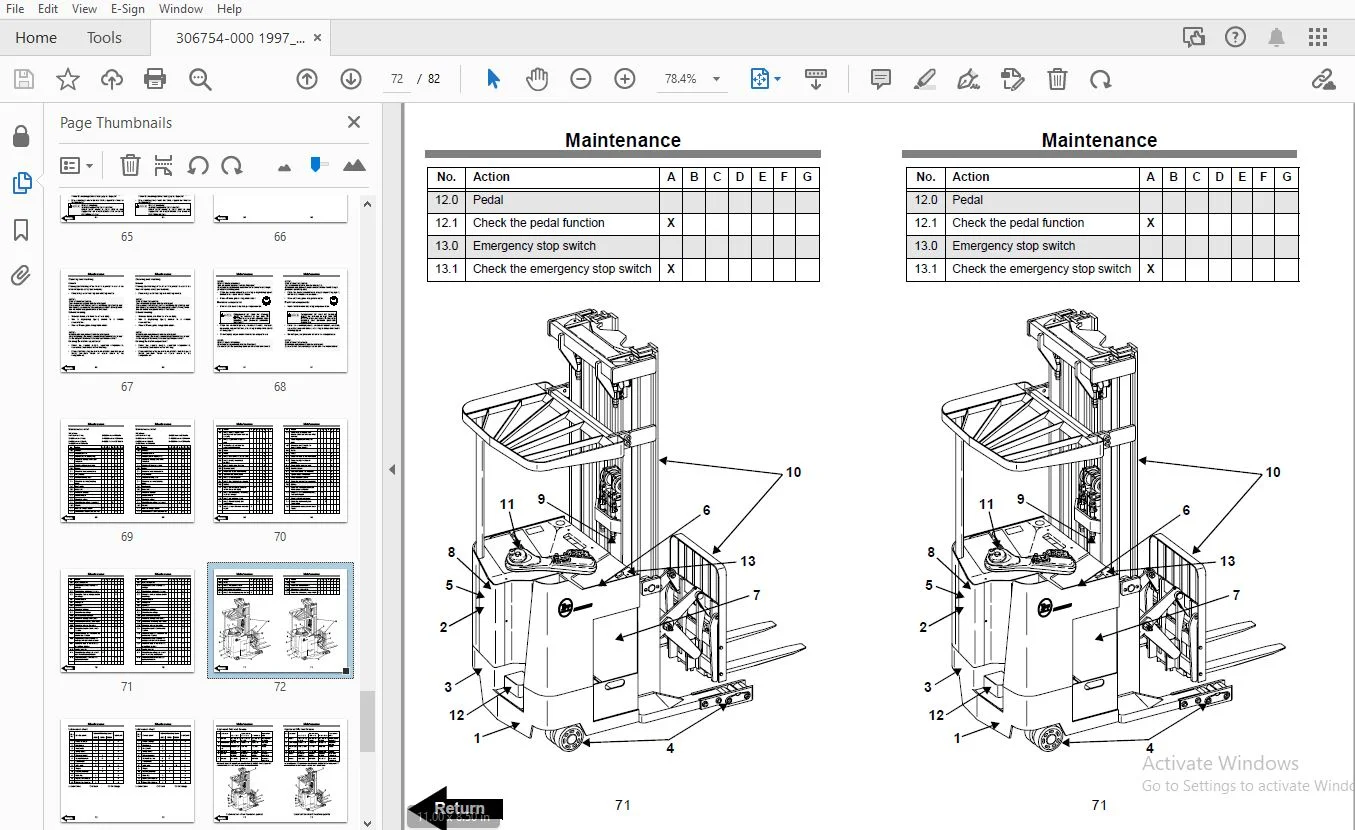

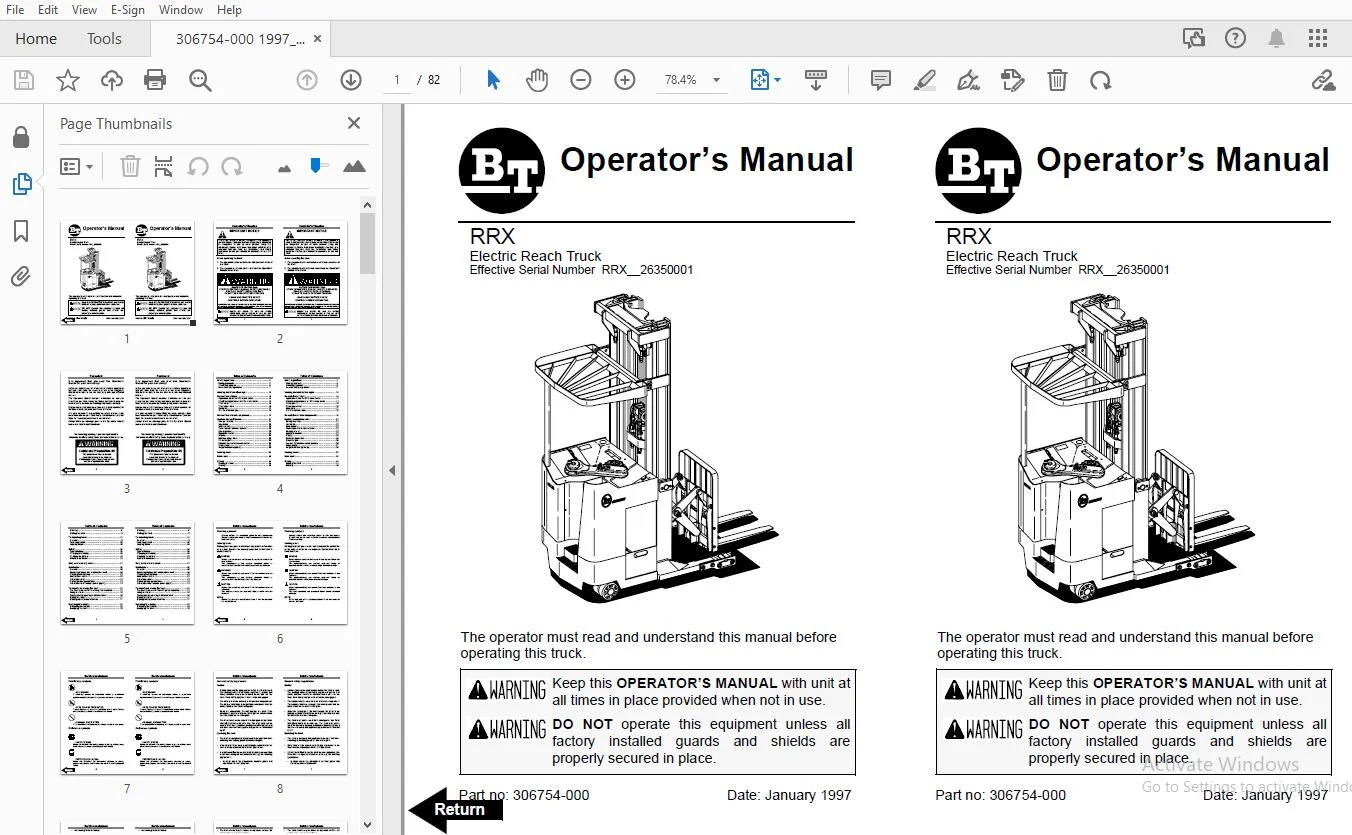

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

BT Forklift RRX Electric Reach Truck Operator’s Manual 306754-000 (January 1997) – PDF DOWNLOAD

Front Cover...................................................................... 1
Operator's Warning............................................................... 2
	Important Notice............................................................. 2
	Before Operating the Truck................................................... 2
Foreword......................................................................... 3
Table of Contents................................................................ 4
Safety Regulations............................................................... 6
	Warning Symbols.............................................................. 6
	Warning Levels............................................................... 6
	Prohibitory Symbols.......................................................... 7
	Ordinance Symbols............................................................ 7
	General Safety Regulations................................................... 8
		Control.................................................................. 8
		Operating the Truck...................................................... 8
		Operator's Responsibility................................................ 9
		Working Areas............................................................ 9
		Driving and Conduct While Driving........................................10
		Handling Loads...........................................................12
		Parking the Truck........................................................12
		Handling the Battery.....................................................13
		Maintenance and Repair...................................................13
Warning and Information Signs....................................................14
Presentation of Truck............................................................15
	Application Area for BT's Reach Trucks.......................................15
	Prohibited Applications for BT's Reach Trucks................................15
	Truck Data...................................................................16
	Truck Dimensions.............................................................17
	Data Plate...................................................................18
	U. L. Construction Type......................................................19
Presentation of Main Components..................................................20
Controls and Instruments.........................................................22
	Emergency Stop...............................................................22
	Key Switch...................................................................23
	Horn Control.................................................................23
	Travel Speed/Direction Selector..............................................23
	Steering Wheel...............................................................24
	Hydraulic Controls...........................................................25
	Display......................................................................27
	Preset Height (option).......................................................30
	Programming..................................................................32
		Programming a Level......................................................32
		Collection Level.........................................................32
		Leaving Level............................................................32
	Erasing Programmed Levels....................................................33
	Automatic Operations.........................................................33
	Collecting a Load............................................................34
	Leaving a Load...............................................................34
	Control......................................................................35
	Error Codes..................................................................36
	Controls for Control Console Position........................................37
	Brake Pedal..................................................................38
	Height Indicator (optional)..................................................39
Warning Codes....................................................................40
Error Codes......................................................................43
Driving..........................................................................45
	Starting the Truck...........................................................45
	Braking......................................................................47
	Steering.....................................................................48
	Parking the Truck............................................................49
Transporting Loads...............................................................50
	General......................................................................50
	Collecting a Load............................................................52
	Leaving a Load...............................................................54
Battery..........................................................................55
	Type of Battery..............................................................55
	Changing the Battery.........................................................55
	Charging the Battery.........................................................57
		General Prohibition......................................................57
	Pre-Charging.................................................................58
	During Charging..............................................................58
	After Charging...............................................................58
	Battery Maintenance..........................................................60
		Each Week................................................................60
		Each Month...............................................................60
Daily Service/Safety Checks......................................................62
Maintenance......................................................................64
	General......................................................................64
	Safety Regulations with Maintenance Work.....................................64
	Maintenance Work that can be Carried Out by You..............................66
	Maintenance Work that may be Carried Out by Trained Maintenance Personnel....66
	Other Service and Repair Work................................................66
	Cleaning and Washing.........................................................67
		General..................................................................67
		External Cleaning........................................................67
		Cleaning the Motor Compartment...........................................67
		Electrical Components....................................................68
	Maintenance Chart............................................................69
	Lubrication Chart............................................................73
	Approved Oils and Grease.....................................................74
Transporting and Storing the Truck...............................................75
	Lifting the Truck............................................................76
	Towing and Transporting a Disabled Truck.....................................77
	Storing the Truck............................................................78
		Battery..................................................................78
		Hydraulic System.........................................................78
		Drive Unit...............................................................78
	Starting After a Period of Disuse............................................78
Recycling/Discarding.............................................................79
	Discarding the Battery.......................................................79
	Scrapping the Truck..........................................................79
		Chassis..................................................................79
		Hydraulic System.........................................................80
		Electrical System........................................................80
Back Cover.......................................................................82

DESCRIPTION:

BT Forklift RRX Electric Reach Truck Operator’s Manual 306754-000 (January 1997) – PDF DOWNLOAD

• Before you start to use this truck it is of extreme importance that you have read the contents of the entire Operator’s Manual to be able to use the truck in a safe and efficient manner.
• This Operator’s Manual contains information on how you should use the truck, safety regulations and how to keep the truck in a safe condition by following daily service routines.
• Only personnel that have been trained as a truck operator, for this type of truck, are permitted to use this truck.
• It is your employer’s responsibility to ensure that you have been trained to use your truck safely. Contact your supervisor if you feel uncertain about how to use this truck.
• Always follow the warnings given in this Operator’s Manual and on the truck to avoid accidents .
