BT FORKLIFT CMX OPERATOR’S MANUAL 302823-004 – PDF DOWNLOAD

Description

BT FORKLIFT CMX OPERATOR’S MANUAL 302823-004 1998_June – PDF DOWNLOAD

FILE DETAILS:

BT FORKLIFT CMX OPERATOR’S MANUAL 302823-004 1998_June – PDF DOWNLOAD

Language : English
Pages : 78
Downloadable : Yes
File Type : PDF

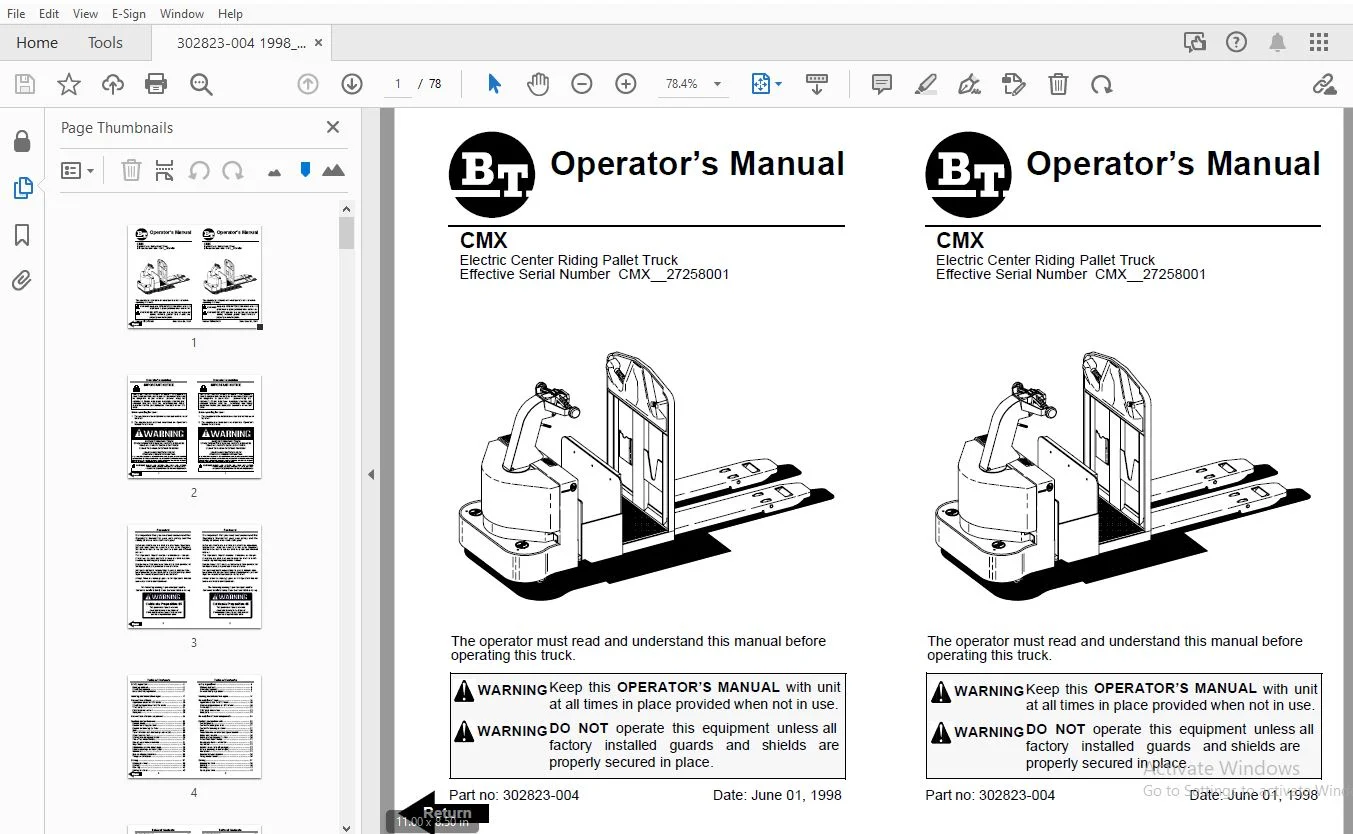

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

BT FORKLIFT CMX OPERATOR’S MANUAL 302823-004 1998_June – PDF DOWNLOAD

Front Cover............................................ 1
Operator's Warning..................................... 2
Foreword............................................... 3
Table of Contents...................................... 4
Safety Regulations..................................... 6
	Warning Symbols.................................... 6
	Prohibitory Symbols................................ 7
	General Safety Regulations......................... 8
		Control........................................ 8
		Operating the Truck............................ 9
		Operator's Responsibility......................10
		Working Area...................................11
		Driving and Conduct While Driving..............12
		Handling Loads.................................14
		Parking the Truck..............................15
		Handling the Battery...........................16
		Maintenance and Repair.........................17
Warning and Information Signs..........................18
	Warning Decals.....................................19
Presentation of Truck..................................20
	Application Area for BT's Trucks...................21
	Prohibited Applications for BT's Trucks............21
	Truck Data.........................................22
	Truck Battery Dimensions...........................22
	CMX Truck Dimensions...............................23
	Data Plate.........................................24
Presentation of Main Components........................25
Controls and Instruments...............................27
	Control Handle.....................................27
		Control for Raising the Forks..................28
		Control for Lowering the Forks.................28
		Horn...........................................29
		Travel Direction Selector and Speed Control....29
		Brake Lever Controls...........................30
			Braking Using Plugging Function............31
	Dash Controls and Locations........................32
		Prime-Trak Switch..............................32
		Emergency Disconnect Switch....................32
		Key Switch.....................................33
		BDI/Hourmeter with Lift Interrupt..............34
		Battery Discharge Indicator (BDI)..............34
		Hourmeter......................................35

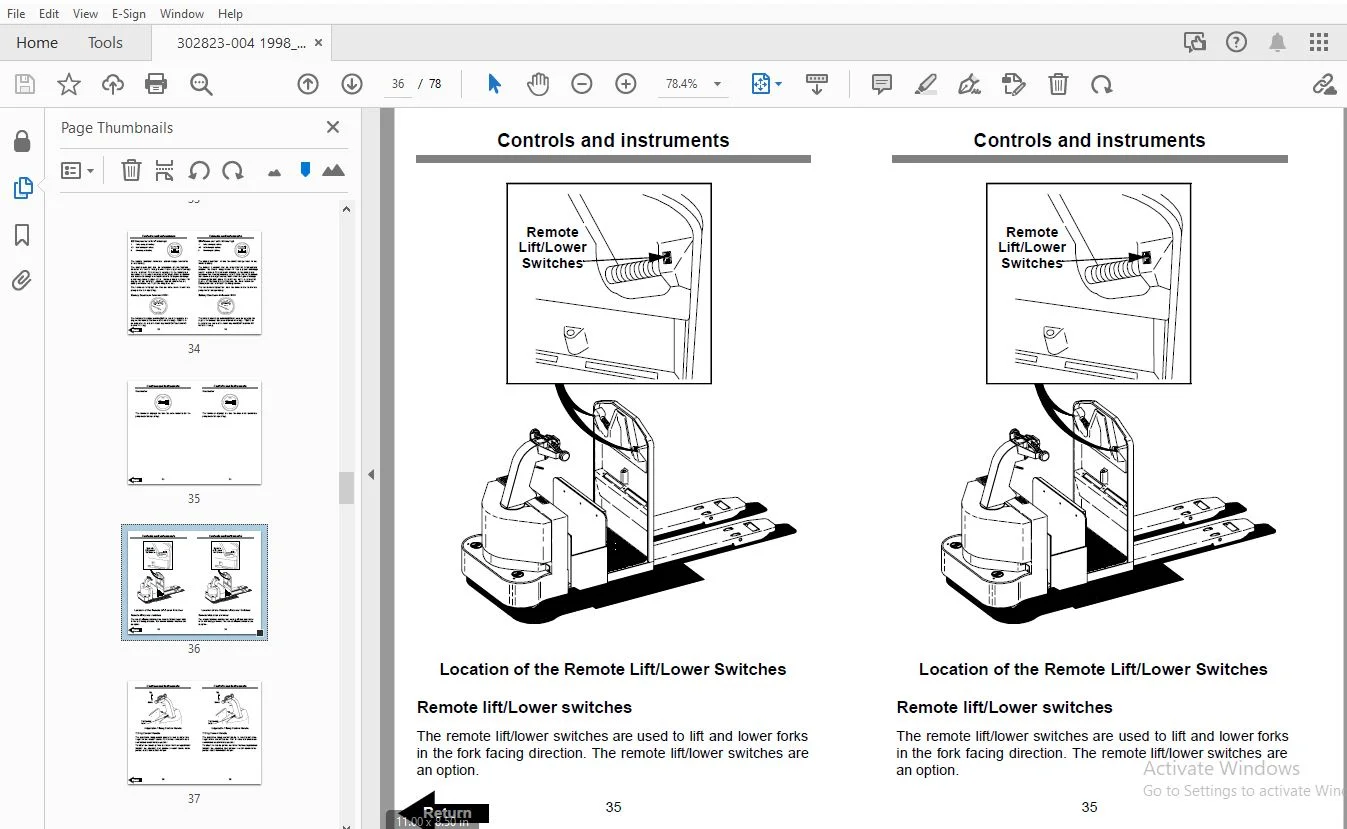

	Remote Lift/Lower Switches.........................36
	Tilting Control Handle.............................37
Driving................................................38
	Starting the Truck.................................39
	Braking............................................41
	Steering...........................................43
	Parking the Truck..................................44
Transporting Loads.....................................45
	General............................................45
	Collecting a Load..................................48
	Leaving a Load.....................................49
Battery................................................50
	Type of Battery....................................50
	Changing the Battery...............................50
	Charging the Battery...............................52
		General Prohibition............................52
		Pre-charging...................................53
		During Charging................................53
		After Charging.................................54
	Battery Maintenance................................55
Daily Service/Safety Checks............................57
Maintenance............................................61
	General Information................................61
	Safety Regulations with Maintenance Work...........61
	Cleaning and Washing...............................65
		General........................................65
		External Cleaning..............................65
		Cleaning the Motor Compartment.................65
		Electrical Components..........................66
	Maintenance Chart..................................67
	Lubrication Chart..................................71
	Approved Oils and Grease...........................72
Transporting and Storing the Truck.....................73
	Truck's Dimensions and Weight as Standard..........73
	Lifting the Truck..................................73
	Towing and Transporting a Disabled Truck...........74
	Storing the Truck..................................75
		Battery........................................75
		Hydraulic System...............................75
		Drive Unit.....................................75
	Starting After a Period of Disuse..................75
Recycling/Discarding...................................76
	Discarding the Battery.............................76
	Scrapping the Truck................................76
		Chassis........................................76
		Hydraulic System...............................77
		Electrical System..............................77
Back Cover.............................................78

DESCRIPTION:

BT FORKLIFT CMX OPERATOR’S MANUAL 302823-004 1998_June – PDF DOWNLOAD

• Before you start to use this truck it is of extreme importance that you have read the contents of the entire Operator’s Manual to be able to use the truck in a safe and efficient manner.
• This Operator’s Manual contains information on how you should use the truck and how to keep the truck in a safe condition by following daily service routines.
• Only personnel that have been trained as a truck operator, for this type of truck, are permitted to use this truck.
• It is your employer’s responsibility to ensure that you have been trained to use your truck safely. Contact your supervisor if you feel uncertain about how to use this truck.
• Always follow the warnings given in this Operator’s Manual and on the truck to avoid accidents.
