Briggs Stratton Single Cylinder L head Engine Service Repair Manual
File Details:
Briggs Stratton Single Cylinder L head Engine Service Repair Manual
- File Format:PDF
- Downloadable:yes
- Pages:338
- Language:English
Sample Page from The Manual:
Briggs Stratton Single Cylinder L head Engine Service Repair Manual
Disassemble
1. To service governor, remove crankcase cover.
2. Loosen the screw on the governor lever (1) and pull lever from governor shaft (2).
3. Loosen the two mounting screws to remove gear housing (8). As the housing is removed, the governor gear (6) will slip off the housing shaft. Note the steel thrust washer (7) between the gear and the governor housing.
4. Remove roll pin (3) and washer from governor shaft.
5. Unscrew shaft from follower (4) by turning clockwise to remove
Assemble
1. Push governor shaft (2) into crankcase cover, with threaded end in.
2. Assemble small washer on the inner end of the shaft, then screw shaft into governor follower (4) by turning shaft counterclockwise.
3. Tighten securely. Turn shaft until follower (4) points down as illustrated, Fig. 16.
4. Place washer on outside end of shaft.
5. Install roll pin (3). The leading end of the pin should just go through the shaft so pin protrudes from only one side of shaft.
6. Place thrust washer and then governor gear on shaft in gear housing.
7. Hold governor housing in a vertical (normal) position (8) and assemble housing with gear in position so point of steel cup on gear (9) rests against crank follower.
8. Tighten housing with two mounting screws.
9. Assemble governor lever to lever shaft with lever pointing downward at about a 30° angle. Final adjustment will be made later when carburetor linkage is assembled.

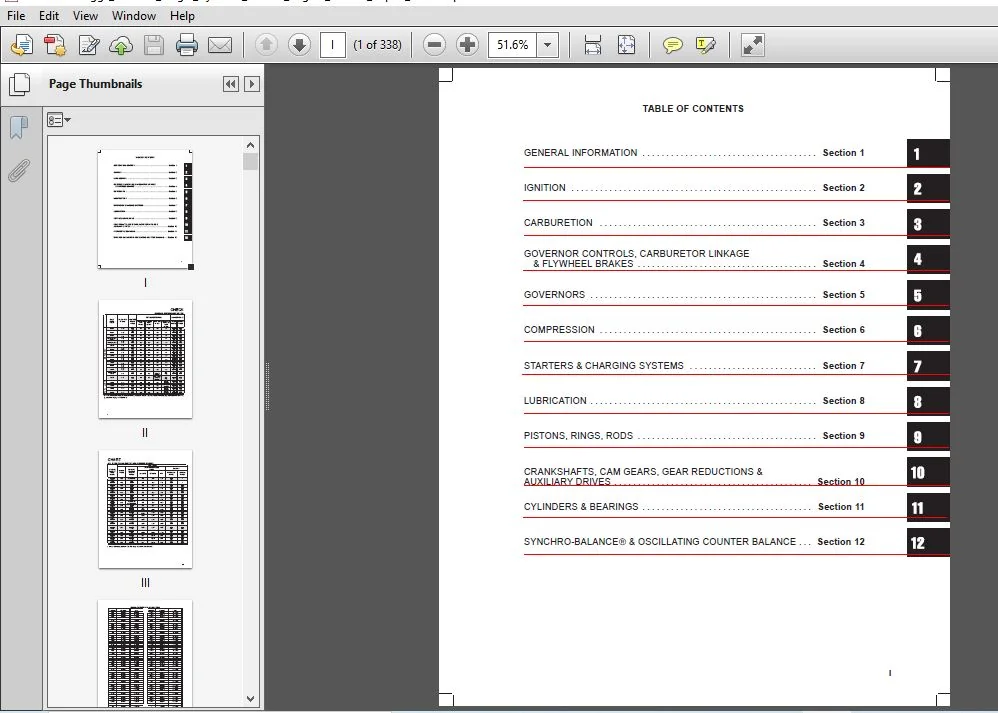

Table Of Contents:
Briggs Stratton Single Cylinder L head Engine Service Repair Manual
GENERAL INFORMATION Section 1
IGNITION Section 2
CARBURETION Section 3
GOVERNOR CONTROLS, CARBURETOR LINKAGE & FLYWHEEL BRAKES Section 4
GOVERNORS Section 5
COMPRESSION Section 6
STARTERS & CHARGING SYSTEMS Section 7
LUBRICATION Section 8
PISTONS, RINGS, RODS Section 9
CRANKSHAFTS, CAM GEARS, GEAR REDUCTIONS & AUXILIARY DRIVES Section 10
CYLINDERS & BEARINGS Section 11
SYNCHRO-BALANCE & OSCILLATING COUNTER BALANCE Section 12

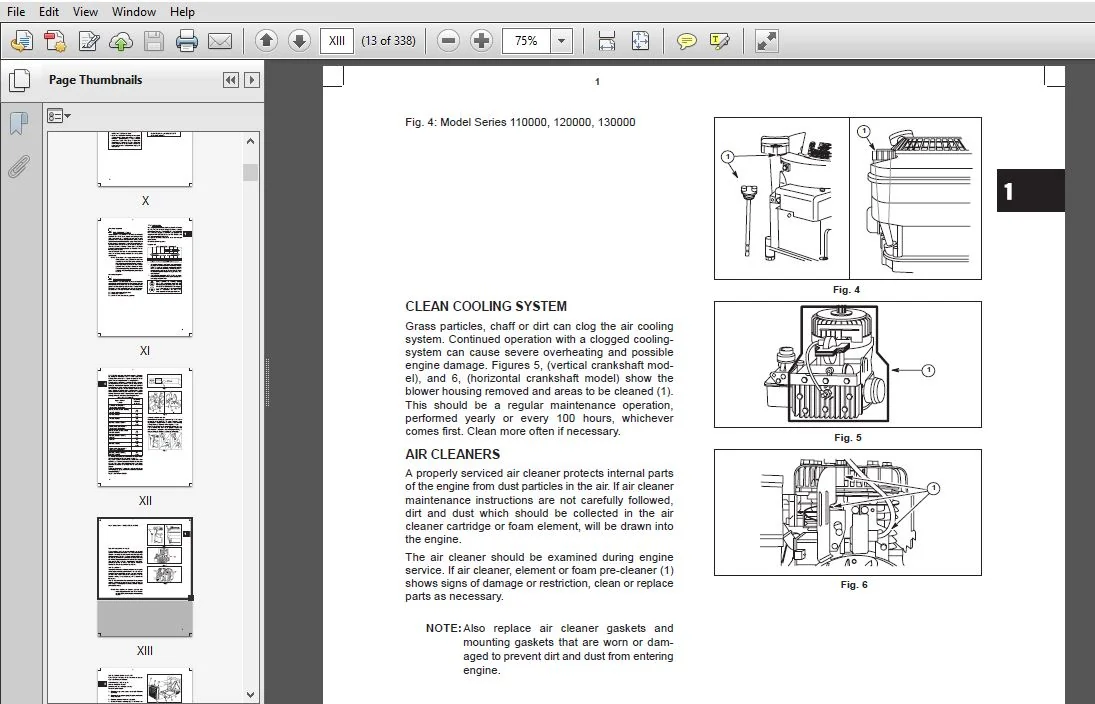

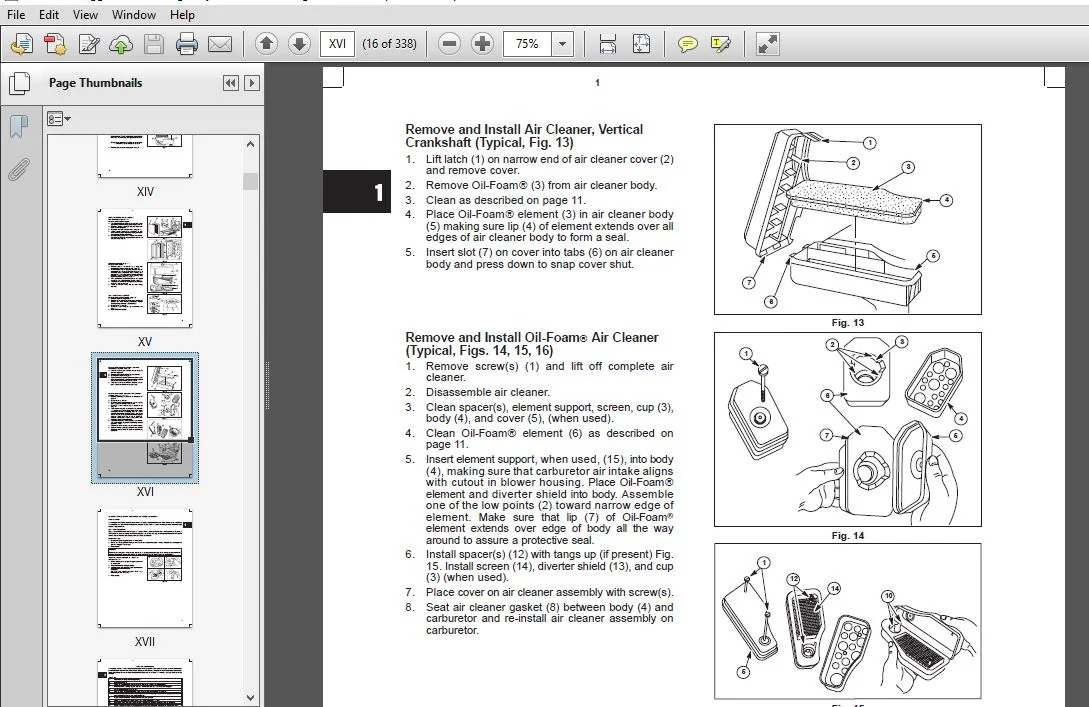

Image Preview:
