Bomag Single Drum Rollers BW 213 D DH PDH-3 BW 214 DH PDH-3 Deutz 2012C 1013EC Service Traning Manual 00809977 – PDF DOWNLOAD
FILE DETAILS:
Bomag Single Drum Rollers BW 213 D DH PDH-3 BW 214 DH PDH-3 Deutz 2012C 1013EC Service Traning Manual 00809977 – PDF DOWNLOAD
Language : English
Pages : 197
Downloadable : Yes
File Type : PDF
Size: 7.39 MB
DESCRIPTION:
Bomag Single Drum Rollers BW 213 D DH PDH-3 BW 214 DH PDH-3 Deutz 2012C 1013EC Service Traning Manual 00809977 – PDF DOWNLOAD
Foreword:
Reliable construction equipment is of greatest advantage for all parties involved in this business:
• for the customer/user it is a basis for an exact calculation of utilization periods and the completion of
projects as scheduled.
• in the rental business it means that the equipment can be reliably used and planned without having
to stock a large number of stand-by machines.
• for the manufacturer it means that customers are satisfied, provides him with a good image and gives
him a feeling of confidence.
It is BOMAG’s philosophy to design and produce the machines with highest possible reliability.
However, it is the responsibility of the customer to have the daily routine maintenance work performed
by his personnel. This aspect of simple and easy maintenance was one of the key issues when
developing and designing the machine:
• the location of components in the machine eases maintenance work,
• the high quality standard of BOMAG is the basis for the considerable extension of the service and
maintenance intervals,
• the After Sales Service of BOMAG, including excellent operating and maintenance instruction
manuals, high quality training courses and on-site machine demonstrations helps the customer to
maintain their machines in good condition over a long period of time.
Permanent training of BOMAG’s own service personnel as well as the service personnel of BOMAG
Profit Centres and dealers is therefore a general prerequisite for BOMAG’s excellent world-wide service.
This program of permanent training is only possible with appropriate and up-to-date training material for
trainers as well as persons attending the training courses.
This training manual has not only been written as a support for the professional work of the trainer, but
also for the trainees attending these training courses.
The different levels of product training demand, that the training performed by BOMAG, its Profit Centres
or its dealers reflects the high qualoity of the training conducted at the Training Centre at BOMAG in
Boppard. For this reason we invested a lot of time in the preparation of these materials .
The structure of this training manual enables us to change or up-date individual chapters in case of
major alterations to the machine.
General:
Single drum rollers of generation 3 are self-propelled soil compaction machines, which are particularly
suitable for heavy-duty compaction applications in earth construction.
The product range of single drum rollers includes also the machines:
• BW 213 (available in different versions)
• BW 214
The machines are available with two different types of drums, whereby the correct selection of the drum
depends on the type of material to be compacted.
- The smooth drum is particularly suitable for the compaction of mixed soils, sand, gravel and rock,
whereas the padfoot drum shows its advantages on cohesive soils. The use of a machine with padfoot
drum on sand and gravel is not recommended. - The BW 213 D-3 model 2003 is powered by a water cooled 4-cylinder Deutz engine of series BF4M
2012C. - All other models of the product range BW 213 DH/PDH-3 and BW 214DH/PDH-3 are powered by a
water cooled 4-cylinder Deutz engine of series BF4M 1013EC. - Engine driven pumps transfer the output power of the engine via hydrostatic circuits to the drum, the
rear wheels and the steering cylinder. These hydrostatic drives guarantee lowest possible power losses
and high efficiency. - Front and rear frames are connected by an oscillating articulated joint. The amply dimensioned
oscillation angle makes sure that drum and wheels are always in ground contact. - The rear axle is fitted with multi-disc brakes in the planetary drives. These brakes have the function of
parking brakes. When starting the diesel engine the brakes are released by the increasing charge
pressure. When shutting the engine down they are closed again by spring pressure. The brakes can
also be applied while the engine is running. This requires only the actuation of the respective brake
control valve. However, this feature should only be used if the machine is to be parked for a short while
with the engine running. This parking brake must never be used as a service brake, because the
deceleration effect is very high and the brake discs would be damaged.

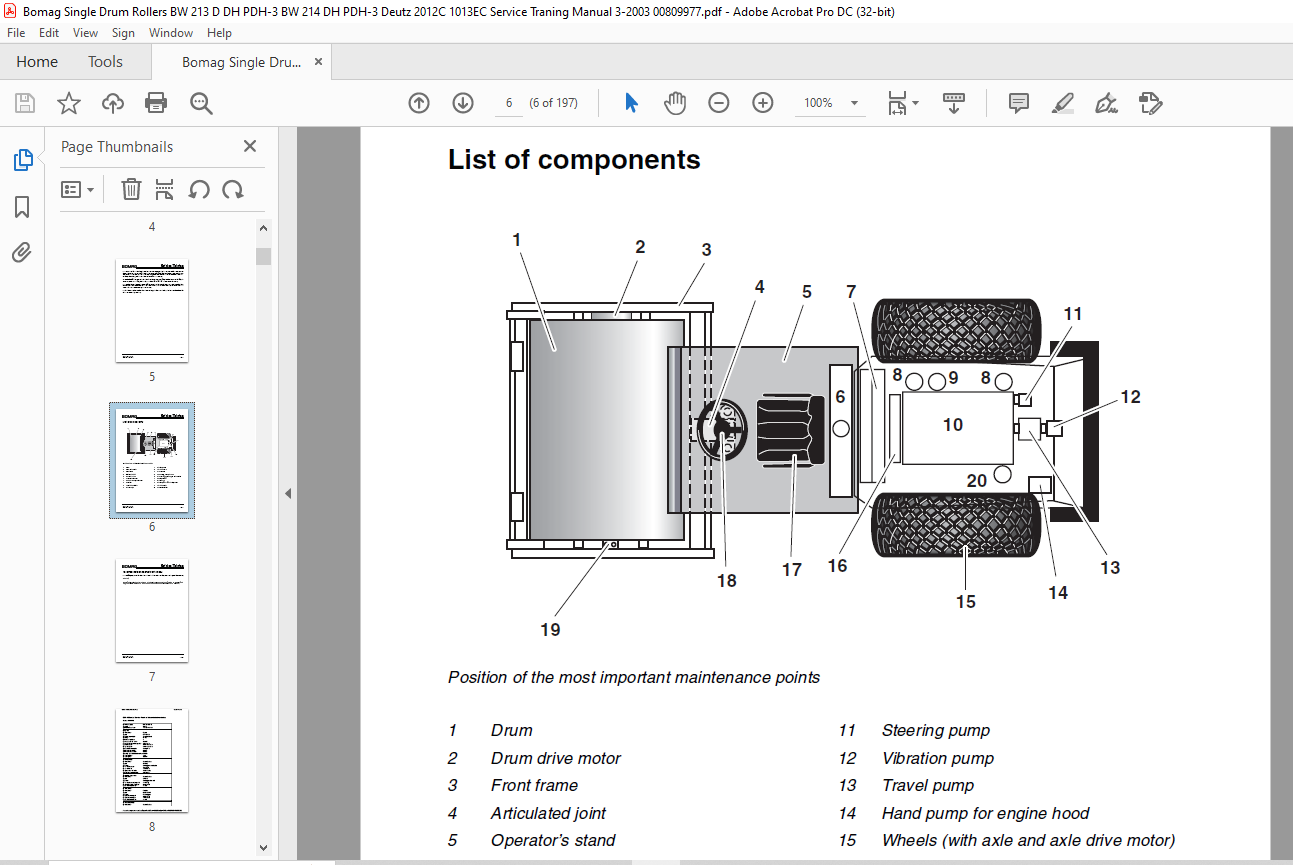

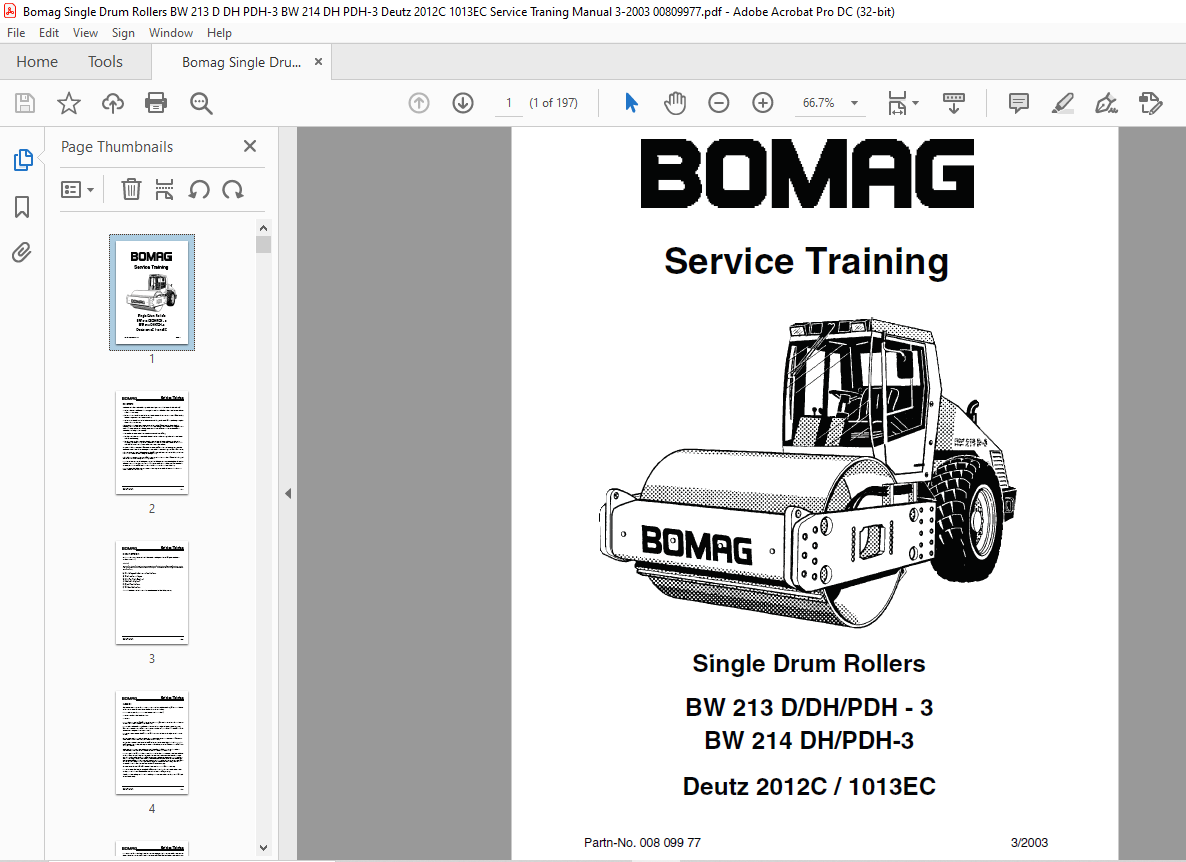

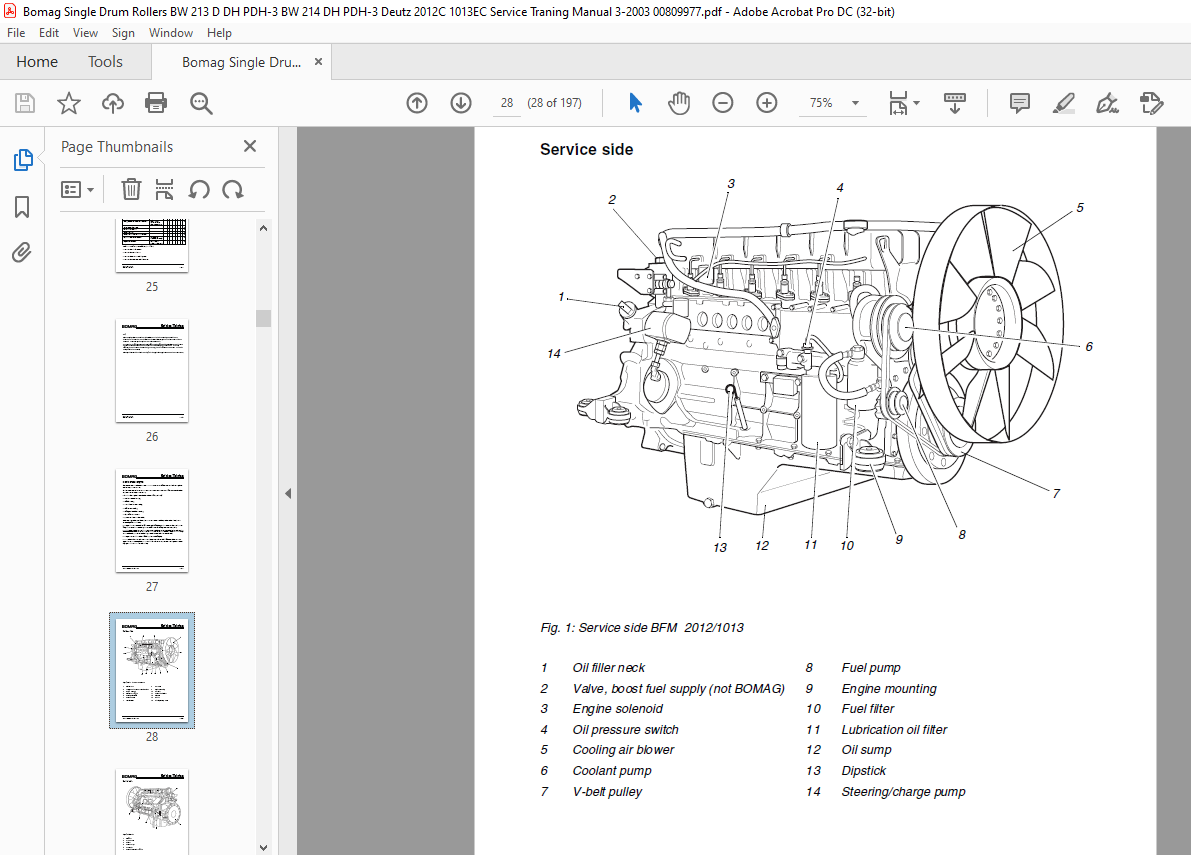

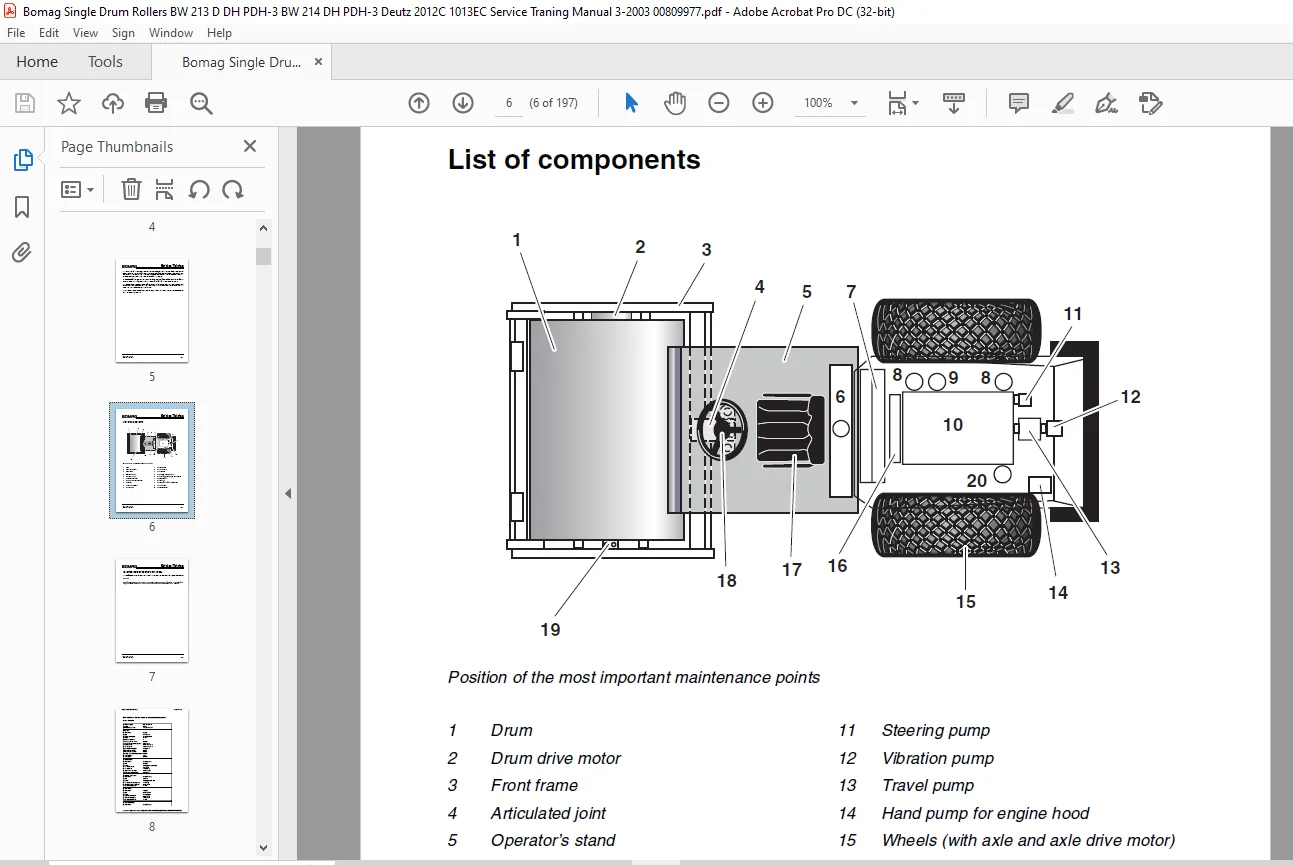

IMAGES PREVIEW OF THE MANUAL:
VIDEO PREVIEW OF THE MANUAL:
