BOBCAT TELEHANDLER T3571-T3571L Parts Manual – PDF DOWNLOAD
FILE DETAILS:
BOBCAT TELEHANDLER T3571-T3571L Parts Manual – PDF DOWNLOAD
Format: PDF
Language: English
Brand: BOBCAT
DESCRIPTION:
BOBCAT TELEHANDLER T3571-T3571L Parts Manual – PDF DOWNLOAD

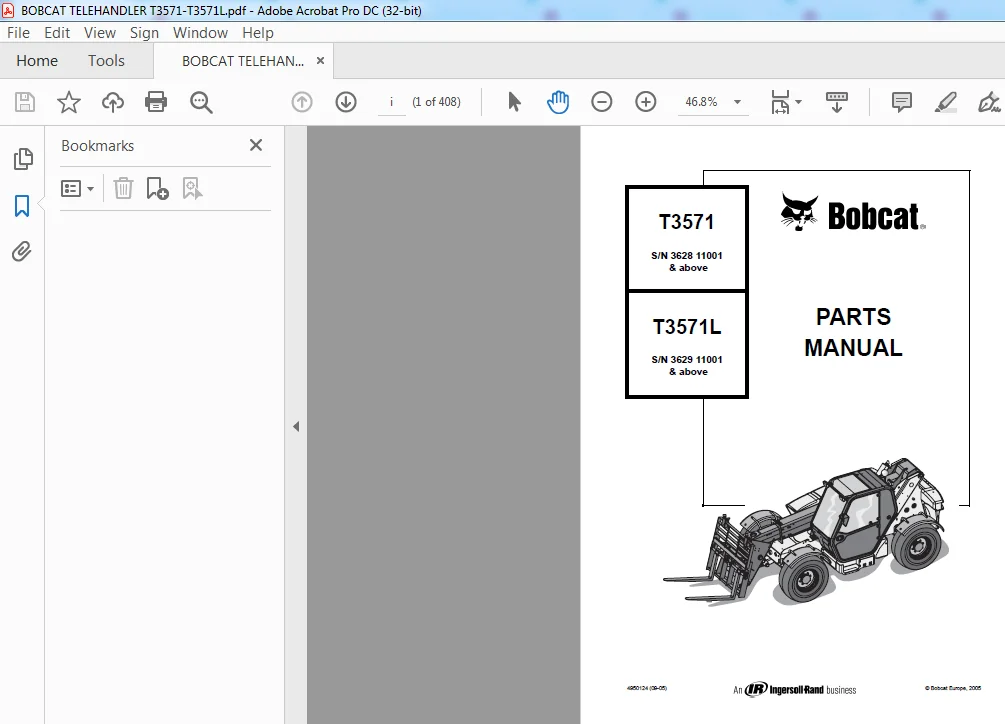

T3571
S/N 3628 11001
& above
T3571L
S/N 3629 11001
& above
- When using the machine serial number (S/N), use the complete number. In the serial number column S/N ranges are displayed as follows: S/N 3632 11001 & above : range starting from and including S/N 3632 11001 S/N 3632 11001 & below : range up to and including S/N 3632 11001 3632 11001 thru 3632 11059 : from S/N 3632 11001 up to and including S/N 3632 11059.
- The number shown in the quantity column in this manual is the number of parts needed for the illustration on the page. For some parts an “x” will be shown in the quantity column. This ”x” indicates that the quantity to be used is ”As Needed”. When references L.H. and R.H. are used in this manual, it is done from the operator’s seat in the forward operating position.
- Some of the illustrations and information found in this parts manual were supplied to Bobcat by machine component companies. ABBREVIATIONS & SYMBOLS NAP: Not Available as Parts NSS: Not Serviced Separately * : Changed or added pages or lines Qty: Quantity Pos.: See position .. on illustration Order: Order now the following part number for this part. See page .. for details: Refers to a page where more details on this part can be found.

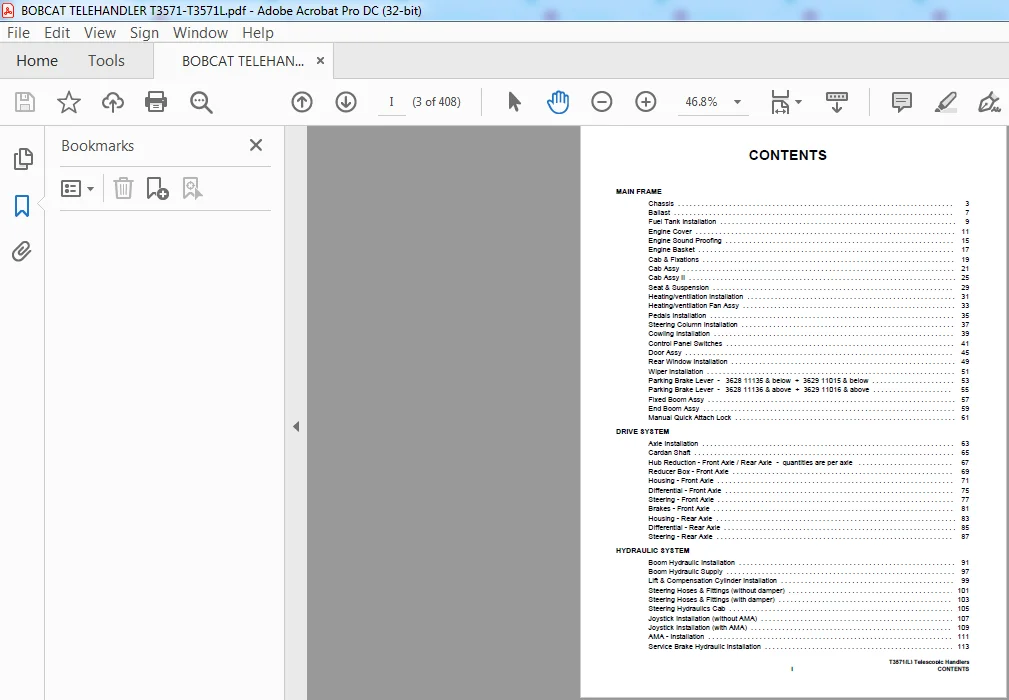

TABLE OF CONTENTS:

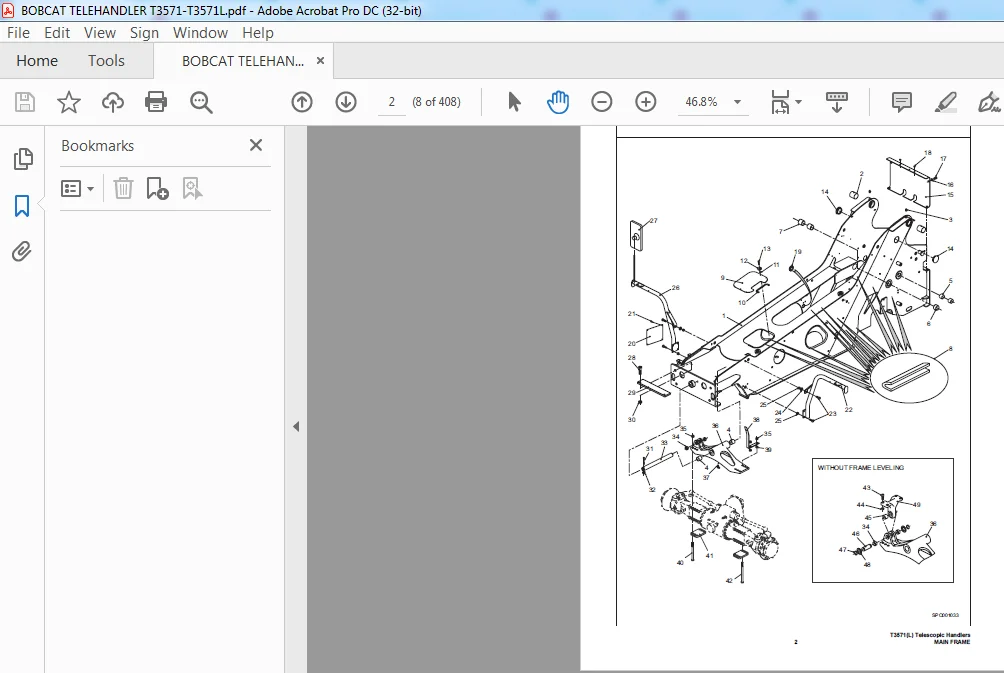

MAIN FRAME
Chassis 3
Ballast7
Fuel Tank Installation 9
Engine Cover 11
Engine Sound Proofing 15
Engine Basket17
Cab & Fixations 19
Cab Assy 21
Cab Assy II25
Seat & Suspension 29
Heating/ventilation Installation31
Heating/ventilation Fan Assy 33
Pedals Installation35
Steering Column Installation 37
Cowling Installation 39
Control Panel Switches 41
Door Assy45
Rear Window Installation 49
Wiper Installation 51
Parking Brake Lever – 3628 11135 & below + 3629 11015 & below 53
Parking Brake Lever – 3628 11136 & above + 3629 11016 & above55
Fixed Boom Assy 57
End Boom Assy 59
Manual Quick Attach Lock61
DRIVE SYSTEM
Axle Installation 63
Cardan Shaft 65
Hub Reduction – Front Axle / Rear Axle – quantities are per axle 67
Reducer Box – Front Axle69
Housing – Front Axle 71
Differential – Front Axle 75
Steering – Front Axle 77
Brakes – Front Axle 81
Housing – Rear Axle 83
Differential – Rear Axle85
Steering – Rear Axle 87
HYDRAULIC SYSTEM
Boom Hydraulic Installation 91
Boom Hydraulic Supply 97
Lift & Compensation Cylinder Installation99
Steering Hoses & Fittings (without damper) ; 101
Steering Hoses & Fittings (with damper); 103
Steering Hydraulics Cab ; 105
Joystick Installation (without AMA) ; 107
Joystick Installation (with AMA) ; 109
AMA – Installation; 111
Service Brake Hydraulic Installation ; 113
I
T3571(L) Telescopic Handlers
CONTENTS
Parking Brake Hydraulic Installation ; 115
Parking Brake Hydraulic Installation (accumulator) ; 117
Quick Attach Installation ; 119
Hydraulic Tank Installation ; 121
Frame Level Installation ; 125
Lift Cylinder ; 127
Compensating Cylinder ; 129
Telescope Cylinder – 6912582 ; 131
Telescope Cylinder – 6913007 ; 133
Tilt Cylinder ; 135
Quick Attach Cylinder; 137
Frame Level Cylinder; 139
Hydraulic Motor – for cooler fan; 141
Hydraulic Pump Installation ; 143
Hydraulic Pump Assy; 145
Hydraulic Control Valve Fixations; 147
Hydraulic Control Valve Installation ; 149
Hydraulic Control Valve: In- and Outlet ; 155
Hydraulic Control Valve Lift Section ; 157
Hydraulic Control Valve Tilt Section ; 159
Hydraulic Control Valve Telescope Section ; 161
Hydraulic Control Valve Auxiliary Hydraulics Section ; 163
HYDROSTATIC SYSTEM
Hydrostatic Hoses and Fittings ; 165
Hydrostatic Pump Assy – 6910533 3628 11091 & below + 3629 11008 & below; 169
Hydrostatic Pump Assy – 6913565 3628 11092 & above + 3629 11009 & above; 173
Hydrostatic Motor Assy ; 179
ELECTRICAL SYSTEM
Electrical Circuit Chassis; 183
Electrical Circuit Cab; 187
Electrical Circuit Engine ; 189
Ventilation Reverse Electrical; 191
Joystick ; 193
Joystick / Susmic Installation; 195
Security Circuit ; 197
POWER UNIT
Engine Installation; 199
Exhaust System ; 205
Cooling System Installation ; 207
Cooling Fan Circuit ; 211
Cooling Fan Circuit (with optional reverse) ; 213
Cylinder Block; 215
Crankshaft – Pistons ; 219
Flywheel and Drive Pulley ; 221
Cylinder Head; 223
Rocker Shaft ; 227
Timing Gear ; 229
Oil Sump – Oil Pump ; 231
Fuel Injection Equipment; 233
Fuel Feeding ; 237
Cylinder Head Cover; 239
Oil Cooler and Filter ; 241
Water Pump and Thermostat; 243
II
T3571(L) Telescopic Handlers
CONTENTS
Turbocharger; 245
Alternator; 249
Flywheel Housing and Starter; 251
Engine Gaskets Sets; 253
ACCESSORIES & OPTIONS
Air Conditioning Installation ; 255
DUNLOP 400/80-R24 153B Wheels ; 261
DUNLOP 400/80-R24 156B Wheels ; 263
TITAN 400/70-R20 Wheels ; 265
DUNLOP 405/70-R20 SPT9 Wheels; 267
MICHELIN 440/70 XM37 Wheels; 269
BFGOODRICH 400/70-20 Wheels ; 271
Mudguard 20″; 273
Mudguard 24″; 275
Tow Valve Installation; 277
Wheel Wedge Option; 279
Valve Braking Switch Option; 281
Matriculation Plate Option; 283
Trailer Plug ; 285
Tow Hitch; 287
Rear View Mirror ; 289
Backup Alarm; 291
Windshield Protection Grill ; 293
2nd Hydraulic Function On Boom; 297
Rear Hydraulic Function ; 299
Rear Hydraulic Hook ; 303
Hook ; 307
Trailer Brake ; 309
Bobcat Decals; 311
Germany Version; 313
Italy Version ; 315
Italy Version with hook ; 317
Fuel Pre-Filter Kit; 319
Hydraulic Tank Filling Kit; 321
Damper Kit ; 323
Kit Boom Head Reinforcement at “Z” Bar Pin ; 325
Kit Boom Head Reinforcement at Carriage Connection ; 327
Pression Retaining Kit for Rear Hydr Function ; 329
Lift Cylinder Accumulator Kit ; 331
Tool Adaptor Kit ; 333
Concrete Bucket ; 335
Jig + Hook; 337
Floating Pallet Forks ; 339
Bales Pikes – Narrow Quick Attach; 341
Rigid Forks Holder – Narrow Quick Attach ; 343
Toothless Buckets – Narrow Quick Attach ; 345
Toothed Bucket – Narrow Quick Attach
