Bobcat 974 975 Operation & Maintenance Manual – PDF DOWNLOAD
FILE DETAILS:
Bobcat 974 975 Operation & Maintenance Manual – PDF DOWNLOAD
Language : English
Pages : 86
Downloadable : Yes
File Type : PDF

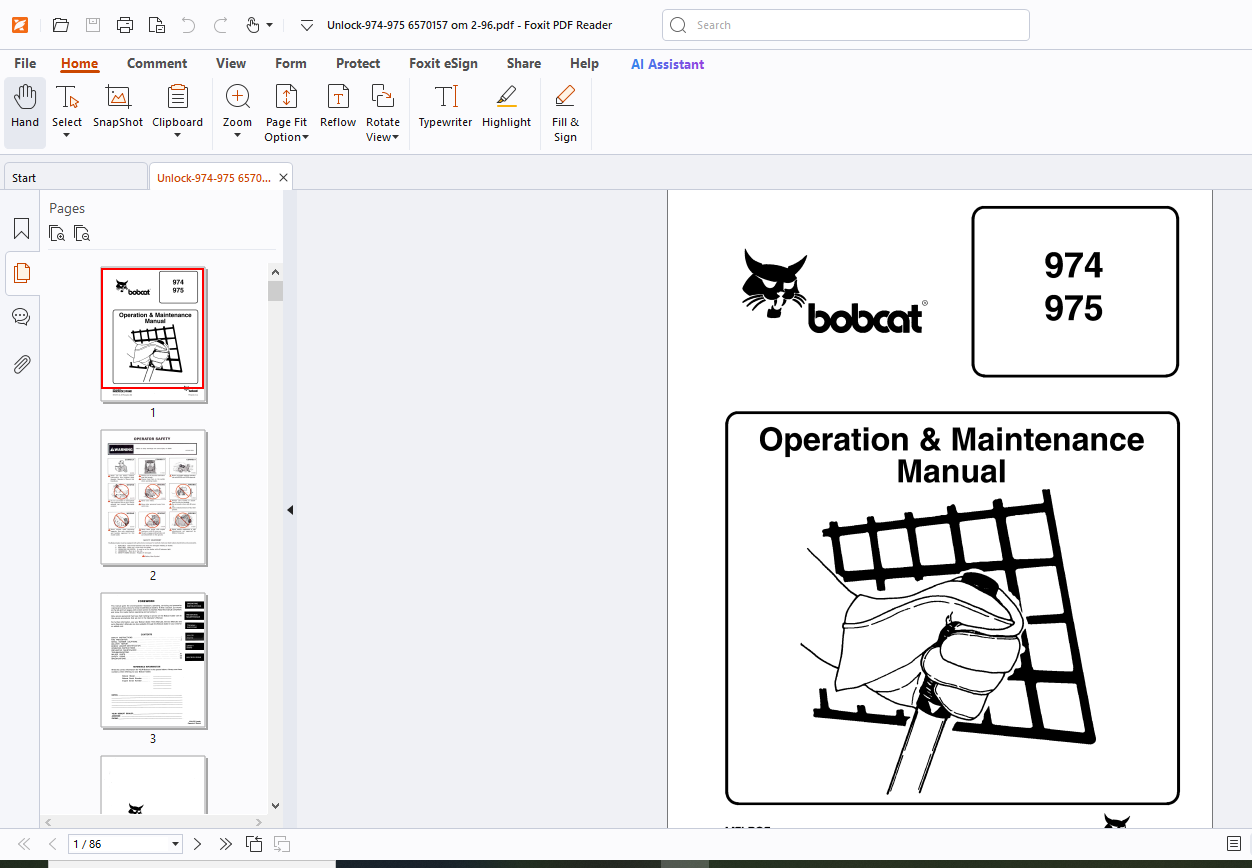

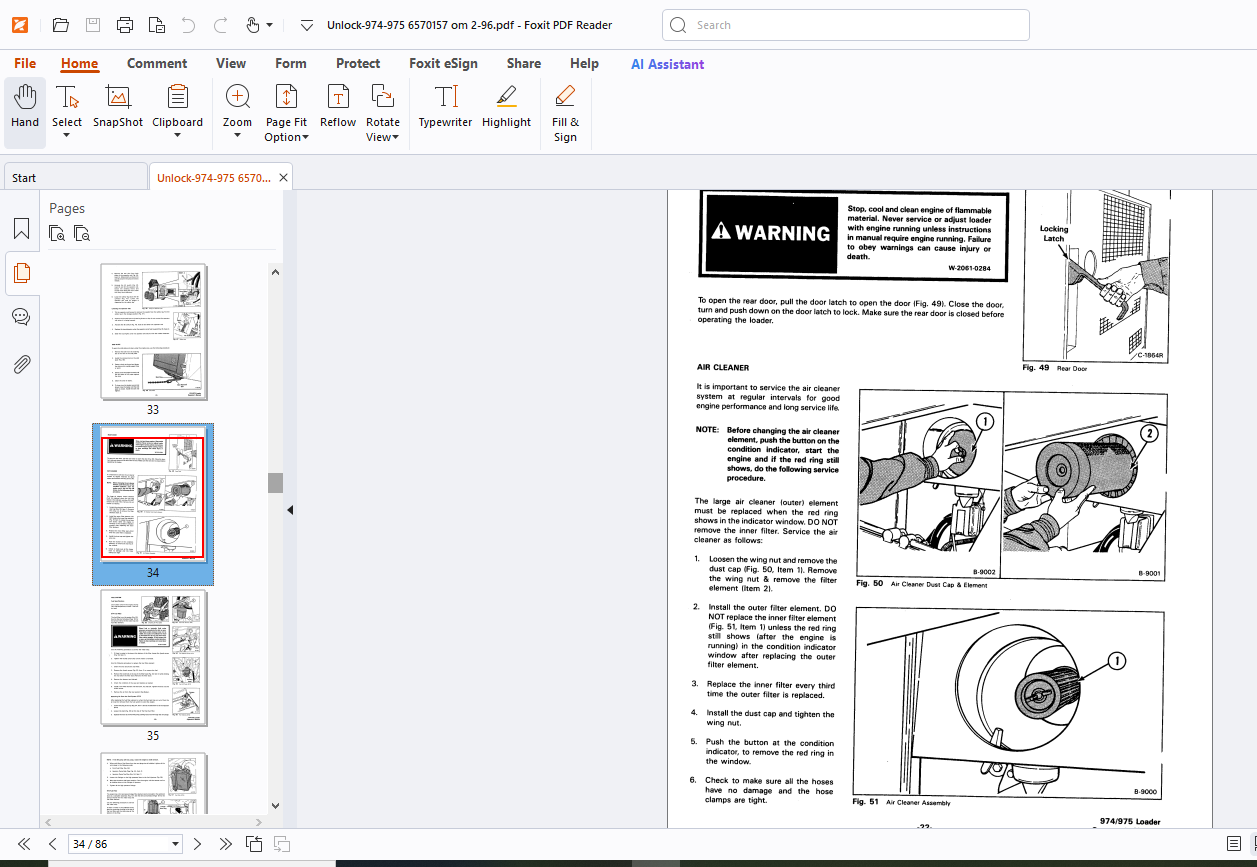

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Bobcat 974 975 Operation & Maintenance Manual – PDF DOWNLOAD
OPERATOR SAFETY 2
FOREWORD 3
CONTENTS 3
REFERENCE INFORMATION 3
SAFETY INSTRUCTIONS 5
Safety Is Your Responsibility 5
Before Operating The Bobcat Loader 5
Safe Operation Needs A Qualified Operator 6
FIRE PREVENTION 6
SERIAL NUMBER LOCATIONS 7
LOADER SERIAL NUMBER 7
ENGINE SERIAL NUMBER LOCATION 7
DELIVERY REPORT 7
BOBCAT SKID STEER LOADER IDENTIFICATION 8
OPERATING INSTRUCTIONS 9
OPERATING INSTRUCTIONS11
GETTING ON AND OFF THE LOADER11
SAFETY SIGNS (DECALS)12
LEARNING THE CONTROLS12
SAFETY SIGNS (DECALS)13
INSTRUMENT PANEL15
THROTTLE CONTROL15
PARKING BRAKE/CLUTCH PEDAL15
STEERING LEVERS16
SPEED-RANGE CONTROL16
SEAT BAR SYSTEM17
HYDRAULIC CONTROLS17
Left Foot Pedal/Lift Arm Operation17
Left Foot Pedal/Float Position For The Lift Arms17
Right Foot Pedal/Tilt (Bucket) Operation17
Left Foot Pedal/Bucket Positioning17
Center Pedal/Auxiliary Operation18
Flow Lever/Auxiliary Operation18
BEFORE STARTING THE ENGINE18
STARTING THE ENGINE20
Cold Temperature Starting20
Starting The 974 Bobcat Loader With Pre-Heat21
Starting The 974 (Opt Ether Start) and 975 Bobcat Loader21
Warming The Hydrostatic Transmission21
ATTACHMENTS AND BUCKETS22
Bucket Or Fork Installation23
Bucket Or Fork Removal23
OPERATING PROCEDURES24
Filling The Bucket25
Emptying The Bucket25
Digging Into The Ground26
Leveling The Ground (Using Float Position For The Lift Arms)26
Backfilling27
STOPPING THE ENGINE AND PARKING THE LOADER27
TOWING THE BOBCAT LOADER27
TRANSPORTING THE BOBCAT LOADER28
LIFTING THE BOBCAT LOADER28
PREVENTIVE MAINTENANCE29
WARNINGS30
SERVICE SCHEDULE31
LIFT ARM STOP32
OPERATOR CAB32
Raising The Operator Cab32
Lowering The Operator Cab33
SKID PLATE33
REAR DOOR34
AIR CLEANER34
FUEL SYSTEM35
Fuel Specifications35
974 Fuel Filter35
Removing Air From The Fuel System (974)35
975 Fuel Filter36
Removing Air From The Fuel System (975)36
ENGINE LUBRICATION SYSTEM37
974 Engine Oil And Filter Replacement37
975 Engine Oil And Filter Replacement38
COOLING SYSTEM38
Coolant Level38
Coolant Replacement38
ALTERNATOR BELT39
ELECTRICAL SYSTEM39
Battery Disconnect Switch39
Electrical System Service39
Operator Cab / Engine Diagram40
Using An Extra Battery (Jump Starting)42
Battery Replacement43
HYDRAULIC / HYDROSTATIC SYSTEM43
Hydraulic / Hydrostatic Fluid Reservoir43
Checking And Adding Fluid43
Hydraulic Fluid Replacement43
Hydraulic / Hydrostatic Diagram44
HYDRAULIC FILTERS45
Replacement Of The Primary Filter45
Replacement Of The Secondary Filters45
SPARK ARRESTOR MUFFLER46
FINAL DRIVE TRANSMISSION47
Chaincase47
Chaincase Fluid Level47
Reduction Gearcase47
TIRE MAINTENANCE47
Tire Rotation47
Wheel Nuts48
LOADER LUBRICATION48
BOB-TACH48
SEAT BAR SYSTEM49
Inspection Of The Seat Bar49
Service Of The Seat Bar49
TROUBLESHOOTING51
TROUBLESHOOTING THE ENGINE53
TROUBLESHOOTING THE DRIVE SYSTEM54
TROUBLESHOOTING THE HYDRAULIC SYSTEM54
MAJOR PARTS55
MAIN FRAME57
FUEL TANK & PANELS58
DRIVE TRAIN59
BRAKES & REDUCTION GEARCASE60
HYDRAULIC SYSTEM61
HYDROSTATIC CIRCUITRY62
STEERING LEVERS & CONTROL PEDALS63
ENGINE COOLING & MOUNTING PARTS (PERKINS – 974)64
ENGINE FUEL & EXHAUST SYSTEM (PERKINS – 974)65
ENGINE LUBRICATION & ELECTRICAL ATTACHING PARTS (PERKINS – 974)66
ENGINE COOLING & MOUNTING PARTS (JOHN DEERE – 975)67
ENGINE FUEL & EXHAUST SYSTEM (JOHN DEERE – 975)68
ENGINE LUBRICATION & ELECTRICAL ATTACHING PARTS (JOHN DEERE – 975)69
SAFETY SIGNS71
IMPORTANT – 656057373
SERVICE SCHEDULE – 659153074
WARNING – 659189675
WARNING – 656598076
WARNING – 659188177
DECALS78
DECALS79
SPECIFICATIONS81
SPECIFICATIONS83
ENGINE83
LOADER HYDRAULICS84
ELECTRICAL84
DRIVE SYSTEM84
CAPACITIES84
TIRES84
WARRANTY85
DESCRIPTION:
Bobcat 974 975 Operation & Maintenance Manual – PDF DOWNLOAD
SAFETY INSTRUCTIONS:
SAFETY IS YOUR RESPONSIBILITY:
- The Skid Steer Loader is a highly maneuverable and compact machine. In operation, it is rugged and useful under a wide variety of conditions. This presents an operator with hazards which are common for off highway, rough terrain applications but are not unique for use of Bobcat loaders. The loader has an internal combustion engine with resultant heat and exhaust. All exhaust gases can kill so the loader must be used with adequate ventilation. The loader must not be used in an area with explosive dusts or gases or so that the engine exhaust can contact flammable material. The loader has a spark arrestor muffler which is required for operation in certain areas
- The dealer recommends the capabilities and restrictions of the loader and attachments for each application. The dealer demonstrates the safe operation of the loader according to the manufacturer’s instructional materials which are also available to all operators. The dealer can also identify unsafe modifications or use of unapproved attachments. The attachments and buckets are designed for rated capacity and secure fastening to the loader. For each model loader, the user must check with the dealer or manufacturer’s literature to identify each bucket or attachment for safe loads of materials of specified densities.
