Bobcat 2410 Operation & Maintenance Manual – PDF DOWNLOAD
FILE DETAILS:
Bobcat 2410 Operation & Maintenance Manual – PDF DOWNLOAD
Language : English
Pages : 70
Downloadable : Yes
File Type : PDF

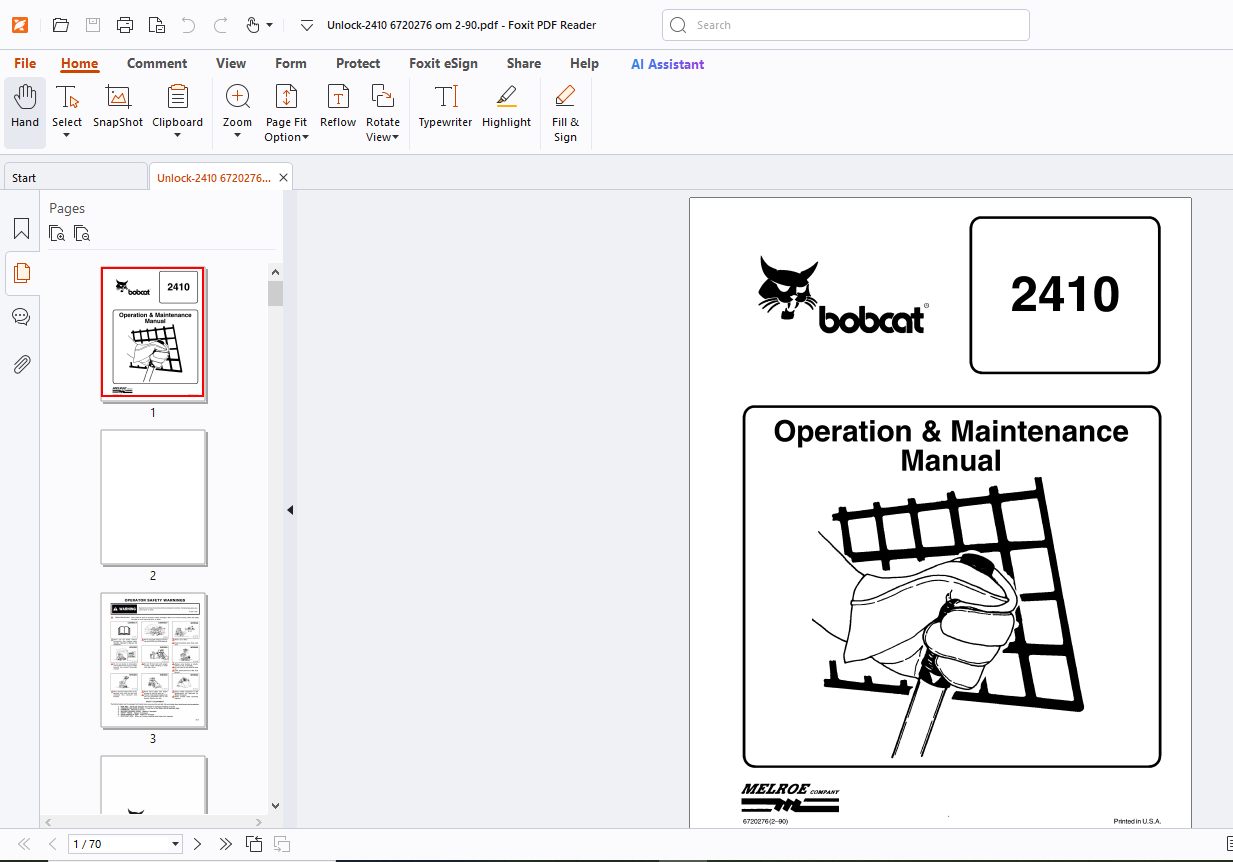

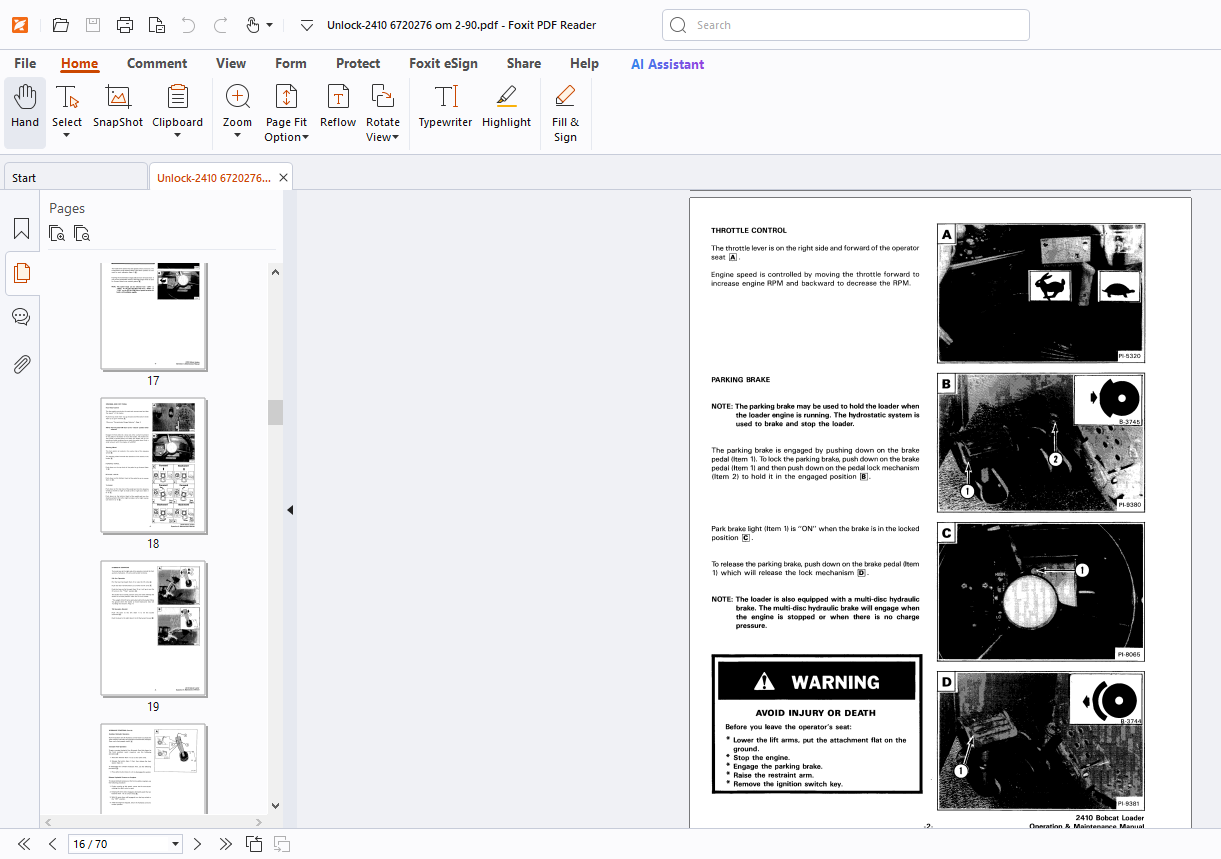

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Bobcat 2410 Operation & Maintenance Manual – PDF DOWNLOAD
OPERATOR SAFETY WARNINGS 3
FOREWORD 5
CONTENTS 5
REFERENCE INFORMATION 5
SAFETY INSTRUCTIONS 7
Safety Is The Operator’s Responsibility 7
Before Operating The Bobcat Loader 7
Safe Operation Needs A Qualified Operator 8
FIRE PREVENTION 8
SERIAL NUMBER LOCATIONS 9
LOADER SERIAL NUMBER 9
ENGINE SERIAL NUMBER 9
DELIVERY REPORT 9
BOBCAT LOADER IDENTIFICATION10
SAFETY SIGNS (DECALS)11
OPERATING INSTRUCTIONS13
INSTRUMENT PANEL15
THROTTLE CONTROL16
PARKING BARKE16
TRANSMISSION RANGE SELECTOR17
STEERING AND FOOT PEDAL18
Foot Pedal Control18
Steering wheel18
HYDRAULIC CONTROLS19
Lift Arm Operation19
Tilt Operation (Bucket)19
Auxiliary Hydraulic Operation20
Constant Flow Operation20
Release Hydraulic Pressure At Couplers20
DAILY INSPECTION21
COUNTERWEIGHT22
GETTING READY FOR OPERATION22
STARTING THE ENGINE24
Normal Starting Condition24
Cold Temperature Starting25
Warming The Hydrostatic Transmission25
ATTACHMENTS & BUCKETS26
Rated Operating Capacity26
Installation Of Bucket (Attachment)27
Removing The Bucket (Attachment)27
Bucker Indicator Linkage Adjustment28
OPERATING PROCEDURE29
Operating On Slopes29
Filling The Bucket30
Emptying The Bucket30
Digging Into The Ground31
Leveling The Ground31
Backfilling32
PARKING THE LOADER32
TRANSPORTING THE LOADER33
TOWING THE LOADER34
PREVENTIVE MAINTENANCE35
MAINTENANCE SAFETY36
SERVICE SCHEDULE39
LIFT ARM STOP40
STEERING FRAME LOCK40
ENGINE HOOD41
ENGINE REAR DOORS41
AIR CLEANER42
FUEL SYSTEM44
Filling The Fuel Tank44
Fule Filter44
Removing Air From The Fuel System46
ENGINE LUBRICATION SYSTEM47
Engine Oil And Filter Replacement47
COOLING SYSTEM48
Radiator Side Screen48
Cooling Syatem Maintenance48
Checking Coolant Level49
Removing Coolant From The Cooling System49
ALTERNATOR BELT50
Adjusting The Alternator Belt50
ELECTRICAL SYSTEM51
Description51
Electrical System Service51
Fuses51
Using A Booster Battery (Jump Starting)52
Battery Removal And Installation53
HYDRAULIC / HYDROSTATIC SYSTEM54
Checking And Adding Fluid54
Hydraulic / Hydrostatic Filter Replacement54
Hydraulic Fluid Replacememnt55
SPARK ARRESTOR MUFFLER56
TIRE MAINTENANCE57
Wheel Nuts57
Tire Rotation57
Tire Inflation57
FRONT AND REAR DIFFERENTIAL58
Checking Differential Oil Level58
Checking Gear-Drop Box Oil Level58
Checking Wheel End Oil Level58
DRIVE BELT59
Adjustment59
Removal And Installation59
LUBRICATION OF THE LOADER61
BOB-TACH64
BLOWER FILTER (OPERATOR CAB)64
SPECIFICATIONS65
LOADER DIMEMSIONS67
OPERATION AND PERFORMANCE67
ENGINE67
HYDRAULIC SYSTEM68
ELECTRICAL68
DRIVE SYSTEM68
CAPACITIES68
TIRES68
WARRANTY69
DESCRIPTION:
Bobcat 2410 Operation & Maintenance Manual – PDF DOWNLOAD
SAFETY INSTRUCTIONS:
SAFETY IS YOUR RESPONSIBILITY:
- The Bobcat loader is a higly maneuverable and compact machine. In operation, it is rugged and useful under a wide variety of conditions. This presents the operator with hazards which are common for off highway rough terrain applications but are not unique for use of Bobcat loaders.
- The loader has an internal combustion engine with resultant heat and exhaust. All exhaust gases can kill so that the loader must be used with adequate ventilation. The loader must not be used in space with explosive dusts or gases or so that the engine exhaust contacts flammable material.
- The loader has a spark arrestor muffler which is required for operation in certain area. For loader applications, the dealer recommends the capabilities and restrictions of the loader and attachments for each application. The dealer demonstrates the safe operation of the loader according to the manufacturer’s instructional materials which are also available to all operators. The dealer can also identify unsafe modifications or use of unapproved attachments.
- The attachments and buckets are designed for rated capacity and secure fastening to the loader. For each model loader, the user must check with the dealer or manufacturer’s literature to identify each bucket or attachment for safe loads of materials of specified densities.
G.B 12/03/25
