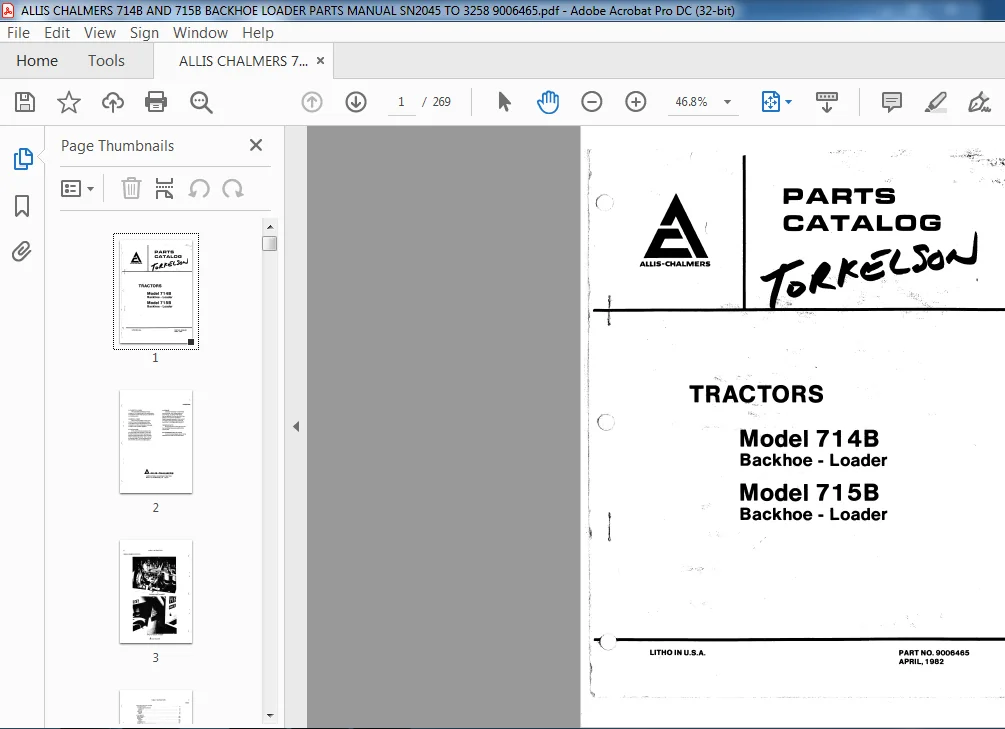

ALLIS CHALMERS 714B AND 715B BACKHOE LOADER PARTS MANUAL SN2045 TO 3258 9006465 – PDF DOWNLOAD
DESCRIPTION:
ALLIS CHALMERS 714B AND 715B BACKHOE LOADER PARTS MANUAL SN2045 TO 3258 9006465 – PDF DOWNLOAD

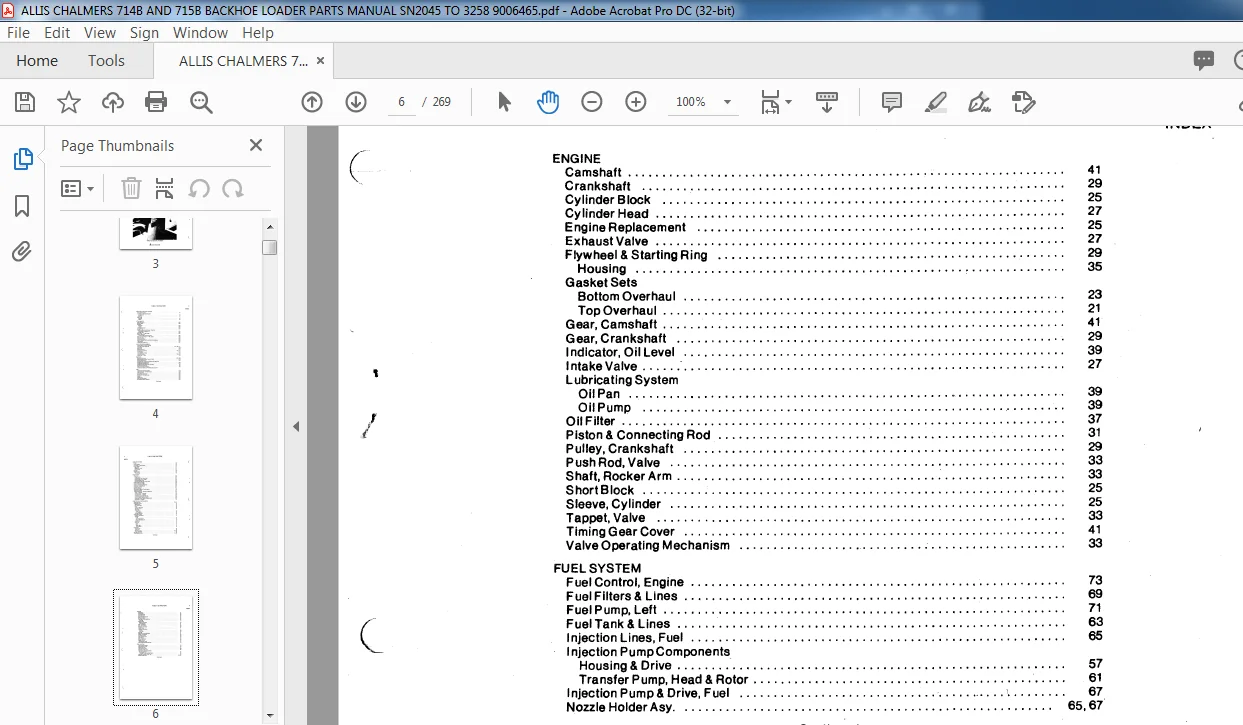

ALPHABETICAL INDEX
The complete alphabetical index appears at the beginning of this publication. It is used to locate major groups, assemblies and components.
NUMERICAL INDEX
- The numerical index of this publication follows the Alphabetical Index at the beginning of the publication and indicates at which grid location and page number a part number appears.

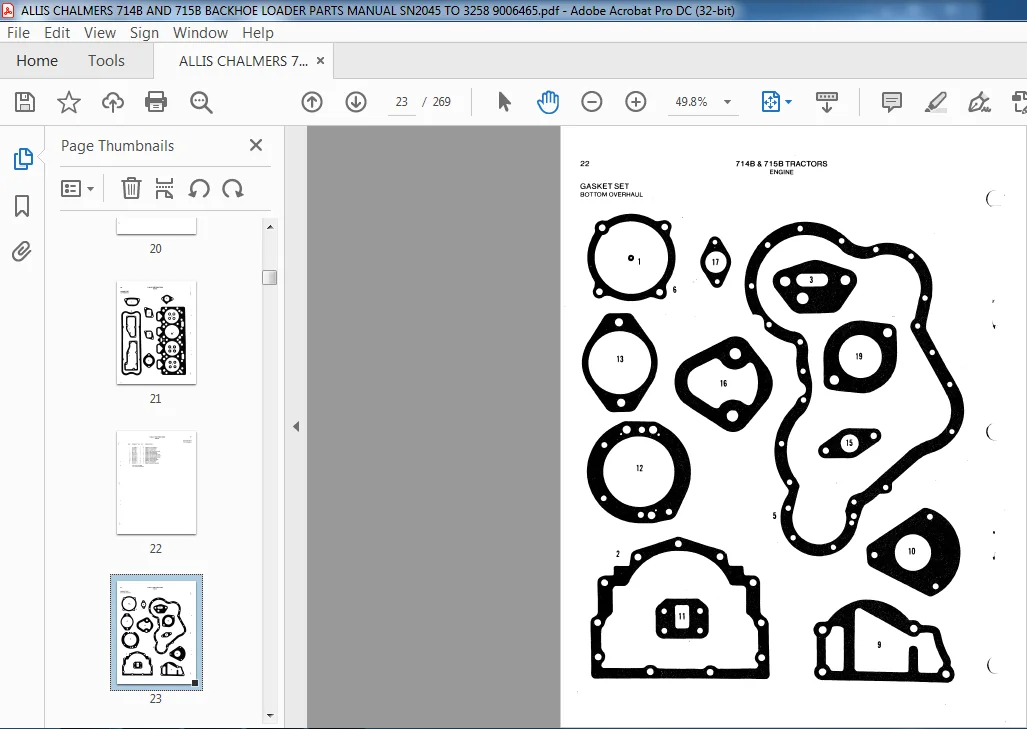

ILLUSTRATIONS
- All illustrations are located on the left hand page with the text on the right. Except for some common hardware, all parts are identified with an item number which corresponds to the “item” column on the text page. This is followed by the part number, quantity and description.
HARDWARE
- Common hardware not identified such as bolts, nuts, cotter pins and lube fittings, are listed indented in the text beneath the item to which they attach or fit. Common hardware listed indented beneath an item is NOT included unless specified. Example: (Incl. BOLT, LOCKWASHER AND NUT).
ORDERING PARTS
- Be sure to refer to both the text and the illustration to assure ordering the correct part.
RECOMMENDED DEALER STOCK
- A recommended dealer stock listing appears at the end of this publication
TABLE OF CONTENTS:
ALLIS CHALMERS 714B AND 715B BACKHOE LOADER PARTS MANUAL SN2045 TO 3258 9006465 – PDF DOWNLOAD
AIR INTAKE & EXHAUST SYSTEM
Air Cleaner Group
Air Intake & Exhaust System
Cleaner, Air
Muffler
Manifolds
Exhaust
Intake
ATTACHMENTS
Back-Up Alarm
Block Heater
Buckets
Backhoe
Loader
Cold Start Group
Filter
Counterweight Installation – Front for
Extendable
License Plate
Mounting, — 714B Loader
Power Take-Off
714B Loader w/3 Point Hitch
Rear Counterweight – 714B Loader
Return to Dig
Rotating Beacon
Spool Release Positioner Electric Magnetic
Tachometer
Vandalism Protection
AXLE, STEERING & WHEELS Axles (Refer to DRIVE TRAIN)
Cylinder, Power Steering
Front Axle
Mounting
Power Steering
Steering Column
Tie Rod
Tires & Wheel – Rear
Valve, Steering
Wheel – Front
BACK HOE
Backhoe Controls
Backhoe Mainframe, Pin-on (714B)
Boom & Hydraulics
Cylinder (Refer to HYDRAULICS section)
Hydraulics
Extendable
Stabilizer Pad & Stabilizer Cylinder
Stabilizer Street Pad
Swing Frame & Cylinders
Valve . (Refer to HYDRAULICS section)
CAB
Cab Frame (Prior S/N 500)
Cab Frame (Eff. S/N 500 & Up)
Defroster Fan
Doors (Prior S/N 500)
Doors (Eff. S/N 500 & Up)
Heater
Heater
Rear Window Wiper
Windshield Wiper & Motor
Continued
COOLING SYSTEM
Filter 55
Front Weight 55
Oil Cooler, Transmission 55
Pump, Water 51
Belt, Fan 51
Blade Fan 51
Hub, Pulley 51
Radiator 55
Water Outlet 53
Thermostat 55
DRIVE TRAIN
Axle 119
Brake Parts 125
Differential Rear Axle 121
Differential Lock Linkage 125
Housing, Rear Drive 119
Housing & Brake Rear Axle 123
Brake Pedal & Linkage 133
Clutch Pedal & Linkage 131
Controls, Forward & Reverse 129
Controls, Parking Brake 117
Differential Lock 127
Main Drive Shaft 117
Mounting, Engine & Transmission 99
Torque Converter 101
Transmission Forward & Reverse 101
Case – 4-Speed 111
Control Cover – 4-Speed 115
Countershaft – 4-Speed 115
Drive Gear & Forward Clutch 107
Front Pump & Reverse Clutch 109
Housing, Pinion Cage & Output Shaft 103
4-Speed 113
ELECTRICAL & INSTRUMENTS
Alternator 75,81
Electrical Group 75
Battery Box 75
Fan, Alternator 75
Horn 75
Pulley, Alternator 75
Sending Units 75
Switches
Oil Pressure 75
Wiring & Battery 75
Instrument Panel 77
Fuse & Fuse Block 77
Gauges
Fuel 77
Oil Temperature 77
Water Temperature 77
Switches 77
Horn 77
Key 77
Stop Light 77
Turn Signal 77
Lamp
Flood Lamp 97
Tail Lamp 97
Warning Lamp 83,97
Lamps w/o ROPS 85
Starting Motor 75,79
ENGINE
Camshaft
Crankshaft
Cylinder Block
Cylinder Head
Engine Replacement
Exhaust Valve
Flywheel & Starting Ring
Housing
Gasket Sets
Bottom Overhaul
Top Overhaul
Gear, Camshaft
Gear, Crankshaft
Indicator, Oil Level
Intake Valve
Lubricating System
Oil Pan
Oil Pump
Oil Filter
Piston & Connecting Rod
Pulley, Crankshaft
Push Rod, Valve
Shaft, Rocker Arm
Short Block
Sleeve, Cylinder
Tappet, Valve
Timing Gear Cover
Valve Operating Mechanism
FUEL SYSTEM
Fuel Control, Engine
Fuel Filters & Lines
Fuel Pump, Left
Fuel Tank & Lines
Injection Lines, Fuel
Injection Pump Components
Housing & Drive
Transfer Pump, Head & Rotor
Injection Pump & Drive, Fuel
Nozzle Holder
HYDRAULICS
Auxiliary Backhoe Hydraulics
Auxiliary Hydraulics
Extendable
Auxiliary Loader Hydraulics
Backhoe
Control Valves
Backhoe
Swing
Cylinders
Boom
Bucket
Extension
Stabilizer
Swing
Cushion
Valve & Lines
Backhoe
Swing
Backhoe to Loader Hydraulics – 714B
Filter
Hydraulic Group
3-Point Hitch – 714B Loader
Loader
Control Valve
Cylinders
Lift
Tilt
Pitch
Valve & Lines
Lift
Tilt
Pressure Lines
Priority Valve
Pump Implement
Reservoir
Suction & Return Lines
LOADER
Controls
Lift Arms
Linkage & Cylinders
NUMERICAL INDEX
RECOMMENDED DEALER STOCK LIST
SHEET METAL, FRAME & SEAT
Decals
Fenders
Grille
Mainframe, Tractor
Platform
Rear Axle Mounting
Rollover Structure
Canopy & Lights
Seat & Seat Support
3-POINT HITCH – 7148 LOADER
Control Valve
Hydraulic Group
Lift Cylinder
Mounting
Pitch Cylinder
Tilt Cylinder
