AEON COBRA 220 Service Manual – PDF DOWNLOAD

Description

AEON COBRA 220 Service Manual – PDF DOWNLOAD

FILE DETAILS:

AEON COBRA 220 Service Manual – PDF DOWNLOAD

Language :English
Pages :105
Downloadable : Yes
File Type : PDF

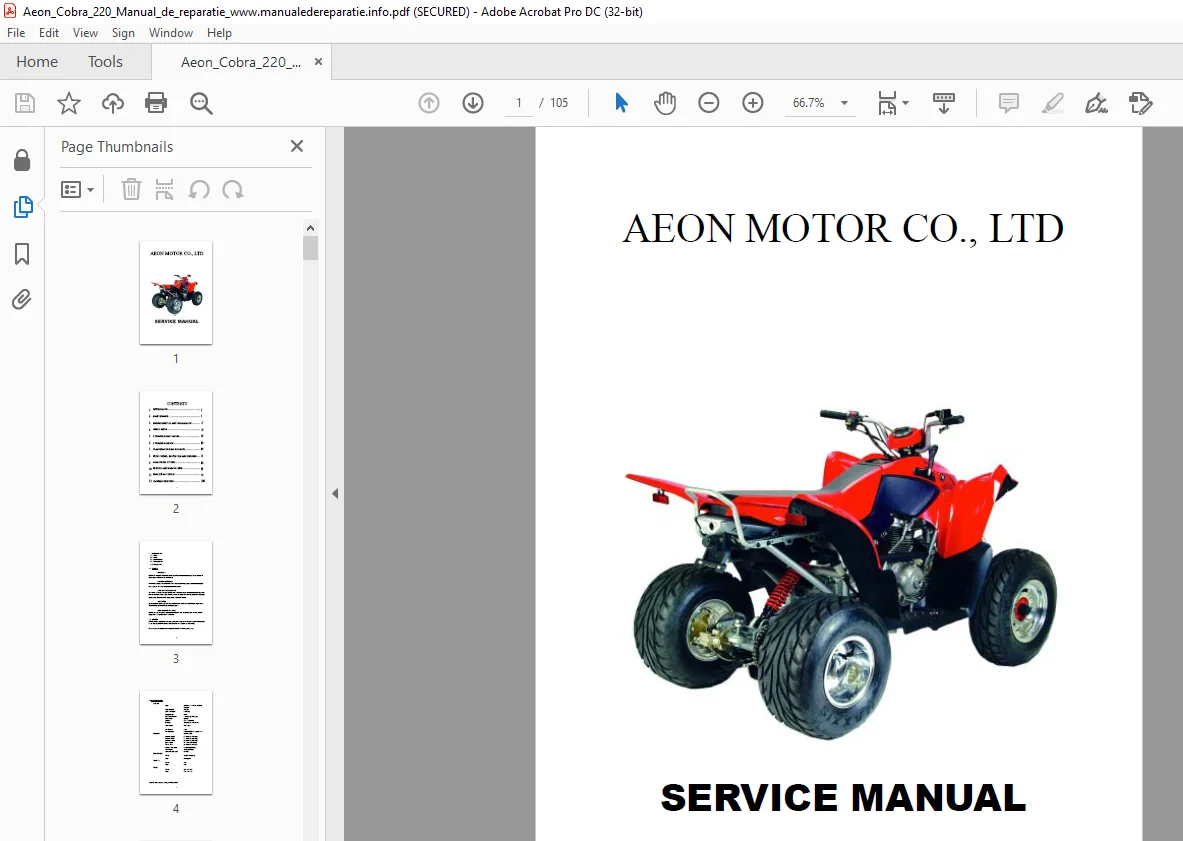

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

AEON COBRA 220 Service Manual – PDF DOWNLOAD

1. INFORMATION
1.1 Safety
1.2 Notes
1.3 Specifications
1.4 Serial number
1.5 Torque valve

1.1 SAFETY
GASOLINE
Gasoline is extremely flammable and is explosive under certain condition. Do not smoke or allow sparks or flames in your work area.
CARBON MONOXIDE
Never run the engine in a closed area. The exhaust contains poisonous carbon monoxide gas that may cause loss of consciousness and lead to death.
BATTERY ELECTROLYTE
The battery electrolyte contains sulfuric acid. Protect your eyes, skin and clothing. If you come into contact with the electrolyte, flush the area thoroughly with water. If you get the electrolyte in your eyes, flush with water and contact a doctor immediately.
HOT PARTS
Engine and exhaust pipe become very hot and remain hot for one hour after the engine is run Wear insulated gloves before handling these parts.
USED ENGINE/GEAR OIL
Used engine oil and gear oil may cause skin disease after repeated contact with the skin for long periods. Keep out of reach of children.

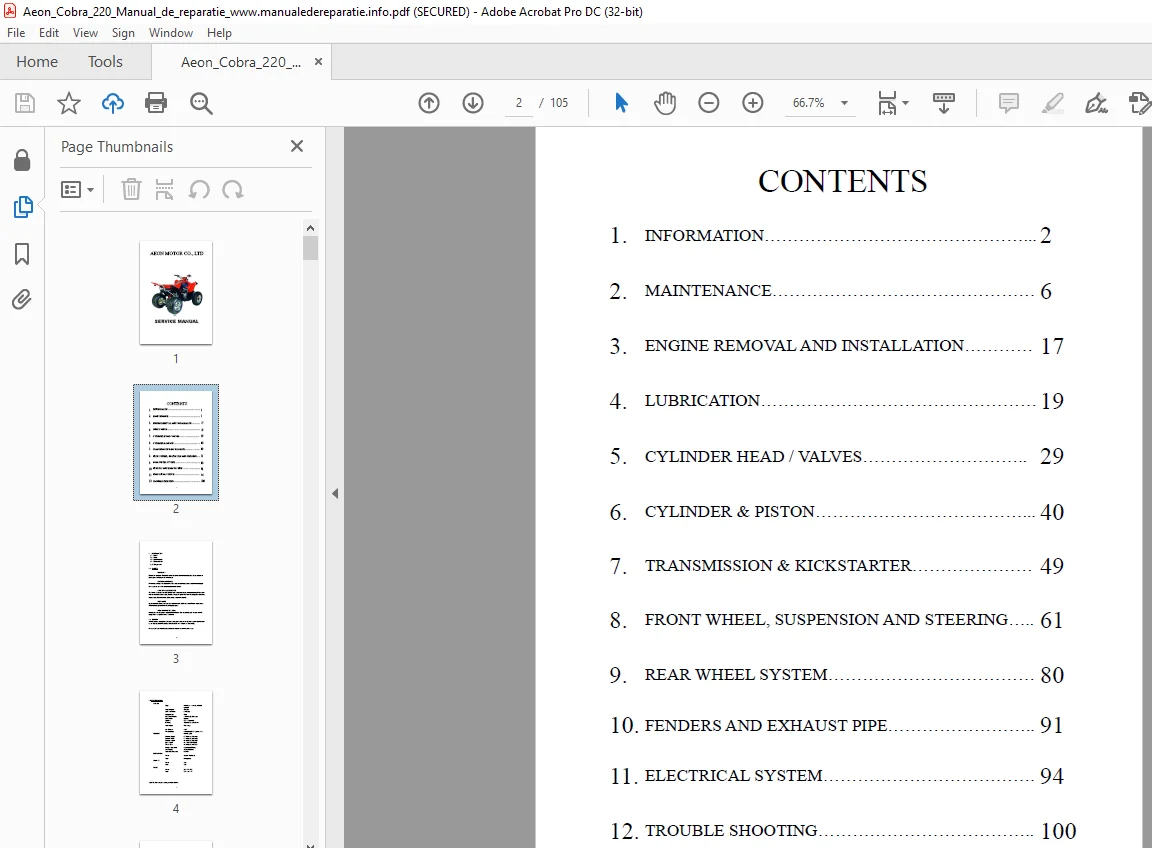

TABLE OF CONTENTS:

AEON COBRA 220 Service Manual – PDF DOWNLOAD

1. INFORMATION …2
2. MAINTENANCE . 6
3. ENGINE REMOVAL AND INSTALLATION 17
4. LUBRICATION 19
5. CYLINDER HEAD / VALVES .. 29
6. CYLINDER & PISTON … 40
7. TRANSMISSION & KICKSTARTER 49
8. FRONT WHEEL, SUSPENSION AND STEERING .. 61
9. REAR WHEEL SYSTEM 80
10. FENDERS AND EXHAUST PIPE .. 91
11. ELECTRICAL SYSTEM . 94
12. TROUBLE SHOOTING .. 100

S.M 20/3/2025
