2009 Lamborghini Gallardo Coupé LP560-1 L714 SERVICE MANUAL – PDF DOWNLOAD
VIDEO PREVIEW:

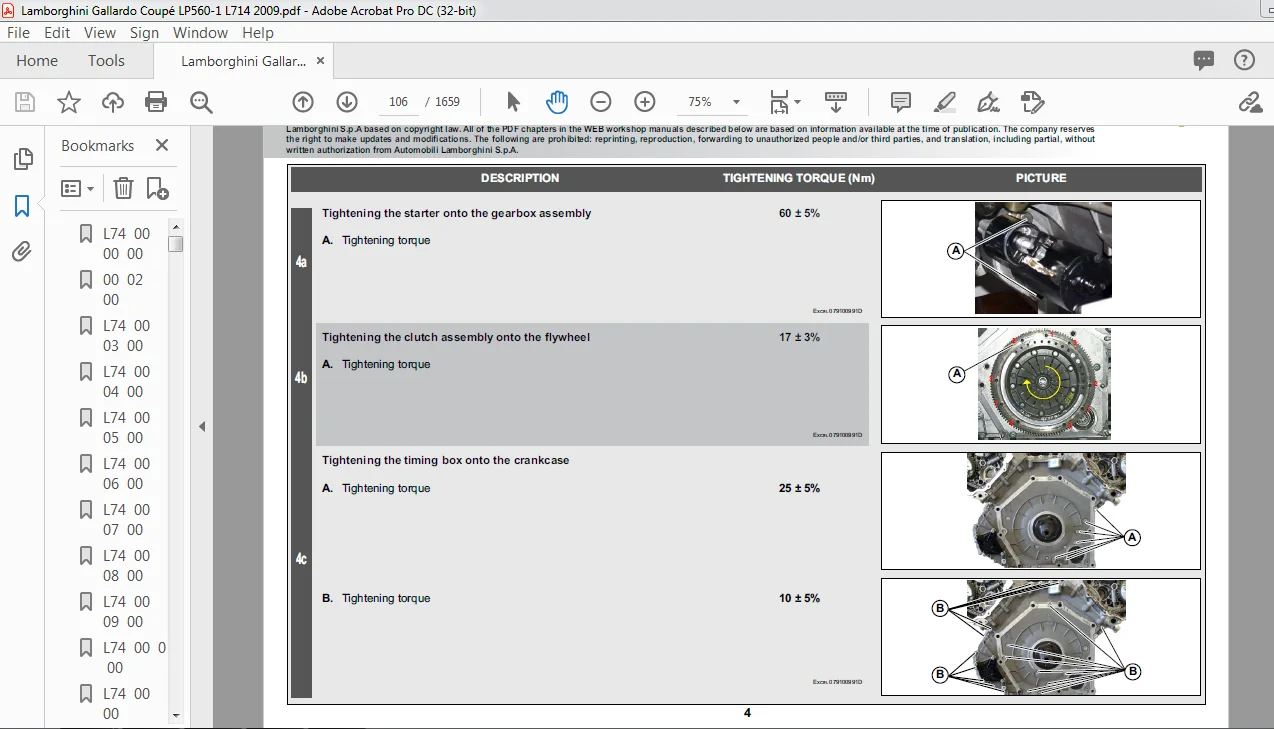

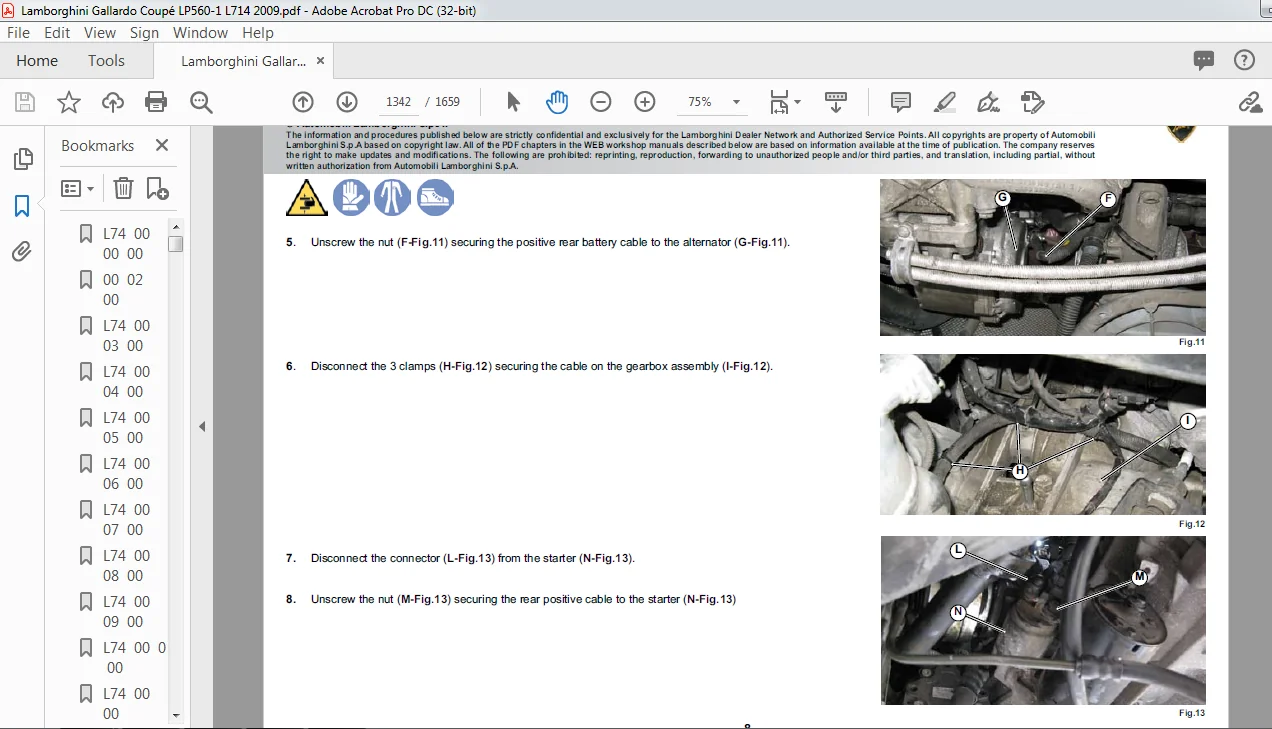

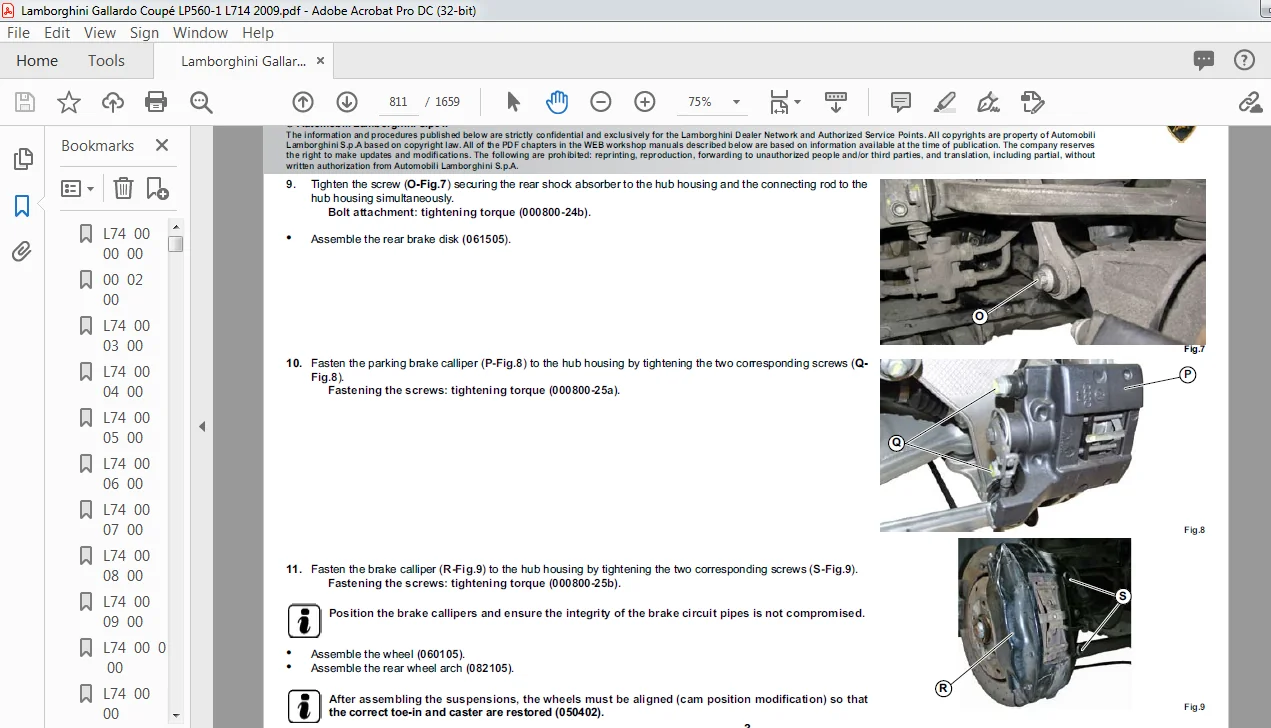

IMAGE PREVIEW:
DESCRIPTION:
2009 Lamborghini Gallardo Coupé LP560-1 L714 SERVICE MANUAL – PDF DOWNLOAD
• California Proposition no. 65: Battery posts. terminals. and related accessories contain lead and lead compounds. chemicals known to the State of California to cause cancer and reproductive ham Handle with care and then wash hands carefully.
• California Proposition no. 65: Engine exhaust manifolds and some of their components. as well as other vehicle components. either contain or issue chemical substances. known to the State of California to cause cancer. birth defects and other reprod uctive harm. Furthermore. some fluids contained in vehicles. as well as other wear prevention products. contain or issue chemical products. known to the State of California to cause cancer. birth defects and other reproductive ham
• Some vehicles described in this manual are equipped with a safety system (SRS) which. during certain types of impact. deploy the airbags and seatbelts. These items are deployed by explosive devices. If handled improperly or without the due precautions. said devices could deploy accidentally and cause serious injury. To avoid personal injury or damage to the SRS systems. every test. disassembly. repair or disposal procedure carried out on the SRS systems shall be executed exclusively by qualified Lamborghini technicians.
• Do not use light indicators to carry out electrical tests on the SRS system. The SRS system may only be tested by qualified Lamborghini technicians who possess special equipment for vehicles: LARA-AS. SRS system components may only be electrically tested when installed on the vehicle.
• While driving a vehicle equipped with an SRS safety system. do not hold control devices in your hand or on your knees while the vehicle is in motion. Any objects located between the driver and the airbag can increase the risk of injury in case of an accident
• Some tyre inflation canisters are highly inflammable. Take the utmost care while repairing tyres inflated with this type of canister. To reduce the risk of fire or injury. always avoid sparks. naked flames or other sources of ignition in the area where tyres are being repaired. Inflate and deflate tyres at least four times before detaching the bead from the wheel rim. Completely extract the tyre from the wheel rim before carrying out any replacements.
TABLE OF CONTENTS:
2009 Lamborghini Gallardo Coupé LP560-1 L714 SERVICE MANUAL – PDF DOWNLOAD
Description
01 Equipment 01 Check (control)
02 Special tools 02 Adjustment
89 PDI (pre-delivery checks) 86 Frequency 1
90 Maintenance plan and frequency 87 Frequency 2
91 Car general presentation 88 Frequency 3
89 Frequency 4
90 Frequency 5
91 Frequency 6
92 Frequency 7
93 Frequency 8
94 Frequency 9
95 Frequency 10
96 Frequency 11
97 Frequency 12
98 Frequency 13 01 Check (control)
03 Crankcase, cylinder, cylinder head 02 Adjustment
05 Crankshaft, connecting rods 03
07 Pistons, rings, pins, liners 04 Cleaning
09 Camshaft, valves 05
15 Oil pump 06 Bleeding
17 Oil cooler 08 Filling and topping up
19 Air intercooler 09 Overhaul
21 Water cooling 10 Error code
22 Water pump 11
27 Fuel pump & lines 12 Running-in
28 Injection system 13 Adjustment coding
29 Air intake manifold 14
31 Catalyst
42 Automatic clutch (E-gear)
90 Timing system
98 Repair kit
PLEASE NOTE:
- This is the SAME exact manual used by your dealers to fix your vehicle.
- The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
- Any queries / doubts regarding your purchase, please feel free to contact [email protected]
