2007 Eaton Fuller Medium Heavy Transmissions TRSM0202 Service Manual – PDF DOWNLOAD
FILE DETAILS:
2007 Eaton Fuller Medium Heavy Transmissions TRSM0202 Service Manual – PDF DOWNLOAD
Language : English
Pages : 102
Size : 39.2 MB
Downloadable : Yes
Format : PDF
DESCRIPTION:
2007 Eaton Fuller Medium Heavy Transmissions TRSM0202 Service Manual – PDF DOWNLOAD
INTRODUCTION:
These 950 lb.-ft. torque capacity units are designed to take advantage of the power curve of the high torque rise engines and to give the ratio spread necessary for construction vehicles. The T-955AL and T0-955AL six speed models have ratios for construction vehicles, especially dump truck operation. The 11.17 low gear provides ample reduction for starting heavy loads, yet can be shifted progressively without stopping vehicle.
- The two reverse ratios, progressively shifted, provide fast backing speeds plus deep reduction for job-site spotting. The T0-955AL overdrive model gives a .65 overdrive ratio where heavy duty drive axles are needed and ratio choices are limited. The T-955ALL and T0-955ALL seven speed models, especially suited for both dump and mixer operations, provide the reduction for extremely adverse conditions, also ratios for curbing and paving.
- Three reverse ratios give a range for stockpiling, job-site work and load spotting. The T0-955ALL overdrive model is available to obtain highway speeds when heavy duty axle ratio choice is limited. The T-955GL model has special “gathered” ratios for vehicles operating primarily on highway.
TABLE OF CONTENTS:
2007 Eaton Fuller Medium Heavy Transmissions TRSM0202 Service Manual – PDF DOWNLOAD
Model Designations 3
Description 4
Specifications 4
Gear Ratios 5
Operation 6
Lubrication 10
Preventive Maintenance Check Chart 12
Disassembly Precautions 14
Disassembly Instructions 15
I Shifting Controls
A Low Gear Shift Air System (T-955ALLModels) 16
B Gear Shift Lever Housing Assembly 17
C Shift Bar Housing Assembly 18
II Clutch Housing, Companion Flange and
Auxiliary Section
A Removal of the Clutch Housing 22
B Companion Flange or Yoke 23
C Auxiliary Rear Section 23
III Front Section
A Auxiliary Drive Gear Assembly 24
B Left Reverse Idler Gear Assembly 26
C Right Countershaft Bearing Removal 28
D Mainshaft Assembly 29
E Left Countershaft Bearing Removal 31
F Input Shaft and Drive Gear Assembly 32
G Countershaft Assemblies 34
H Right Reverse Idler Gear Assembly 35
IV Auxiliary Section – T-955AL, T-955GL Models
A First-reverse Speed Sliding Clutch Gear 36
B Auxiliary Countershaft Assemblies 37
C First Speed Gear, Output Shaft
and Rear Bearing Assembly 38
V Auxiliary Section – T-955ALL Models
A Auxiliary Cou~tershaft Assemblies 40
B Sliding Clutch and First Speed Gear 41
C Low Gear Shift Cylinder 42
D Range Mainshaft 44
E Low Speed Gear, Output Shaft
and Rear Bearing Assembly 45
2
Inspection 46
Gasket Locations 4 7
Torque Ratings 48
Reassembly Precautions 49
Reassembly Instructions 50
I Auxiliary Section – T-9 55 ALL Models
A Low Speed Gear and Output Shaft 50
B Rear Bearing Assembly 52
C Low Gear Shift Cylinder Assembly 54
D Range Mainshaft and First Speed Gear 56
E_ Auxiliary Couptershafts 58
II Auxiliary Section -T-955AL, T-955GL Models
A First Speed Gear and Output Shaft 60
B Output Shaft and Rear Bearing Installation 62
C Auxiliary Countershaft Assemblies 64
D First-reverse Speed Sliding Clutch 65
III Front Section
A Right Reverse Idler Gear Assembly 66
B Countershaft Assemblies 68
C Drive Gear Assembly 70
D Left Countershaft Installation 73
E Mainshaft Assembly 74
F Right Countershaft Installation 81
G Left Reverse Idler Gear Assembly 82
H Auxiliary Drive Gear Assembly 84
IV Clutch Housing, Companion Flange
and Auxiliary Section
A Clutch Housing 86
B Auxiliary Rear Housing 87
C Companion Flange or Yoke 87
V Shifting Controls
A Shift Bar Housing Assembly 88
B Gear Shift Lever Housing Assembly 92
C Low Gear Air System (T-955ALL Models) 93
Air System 94
Mainshaft Axial Clearance Chart 9 5
Tool Reference 96
VIDEO PREVIEW OF THE MANUAL:

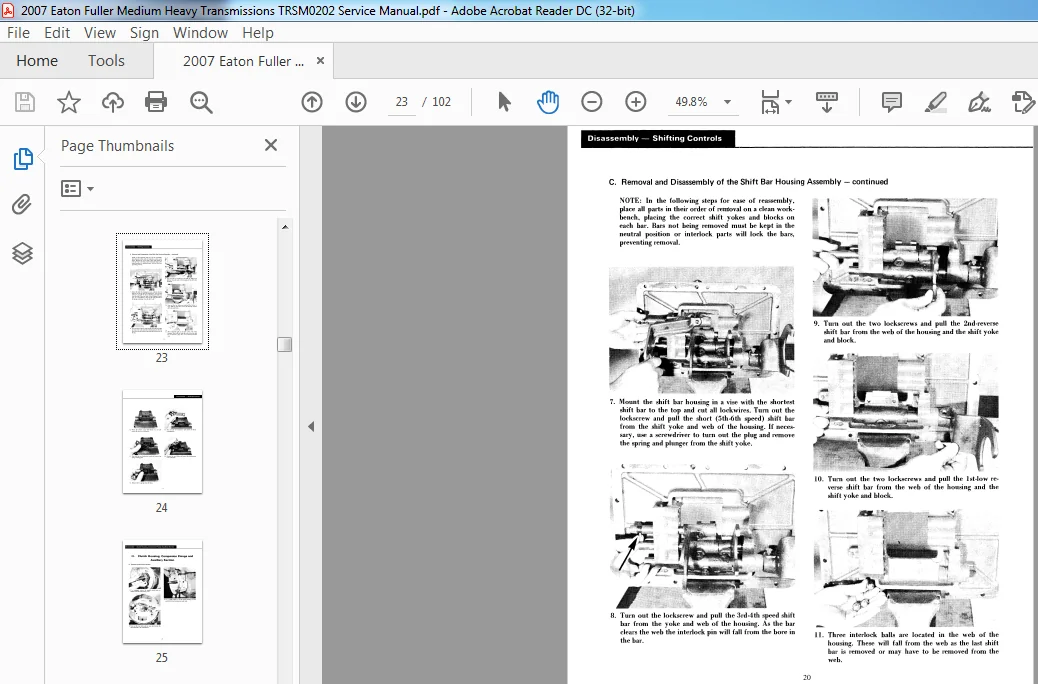

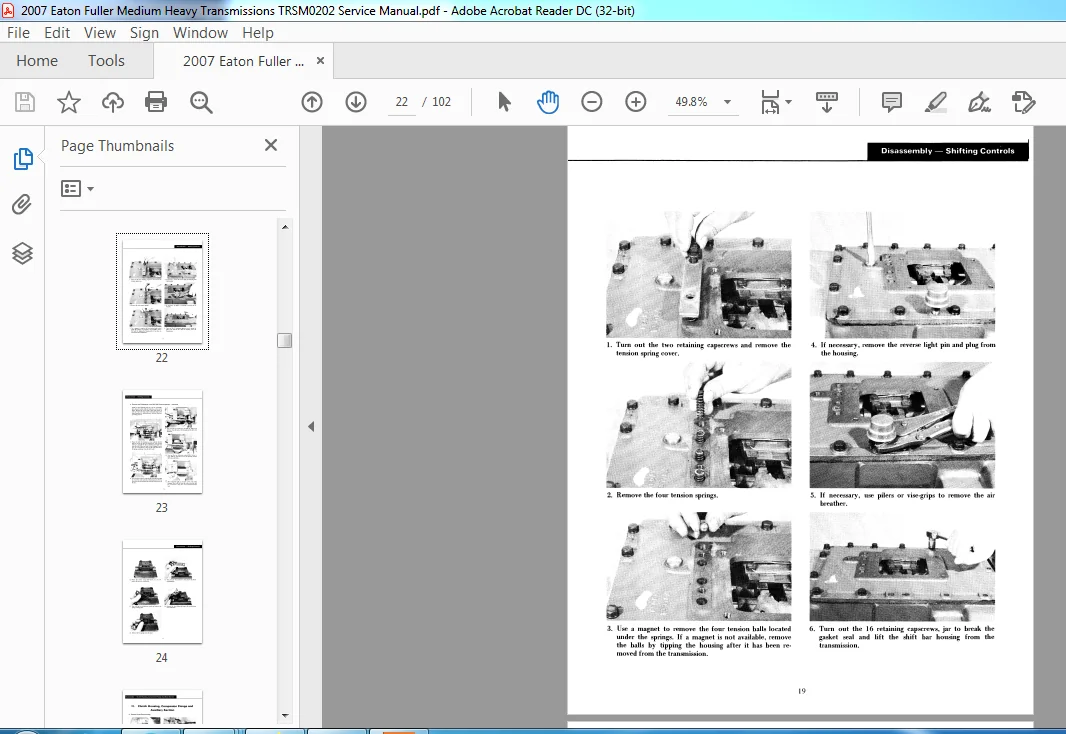

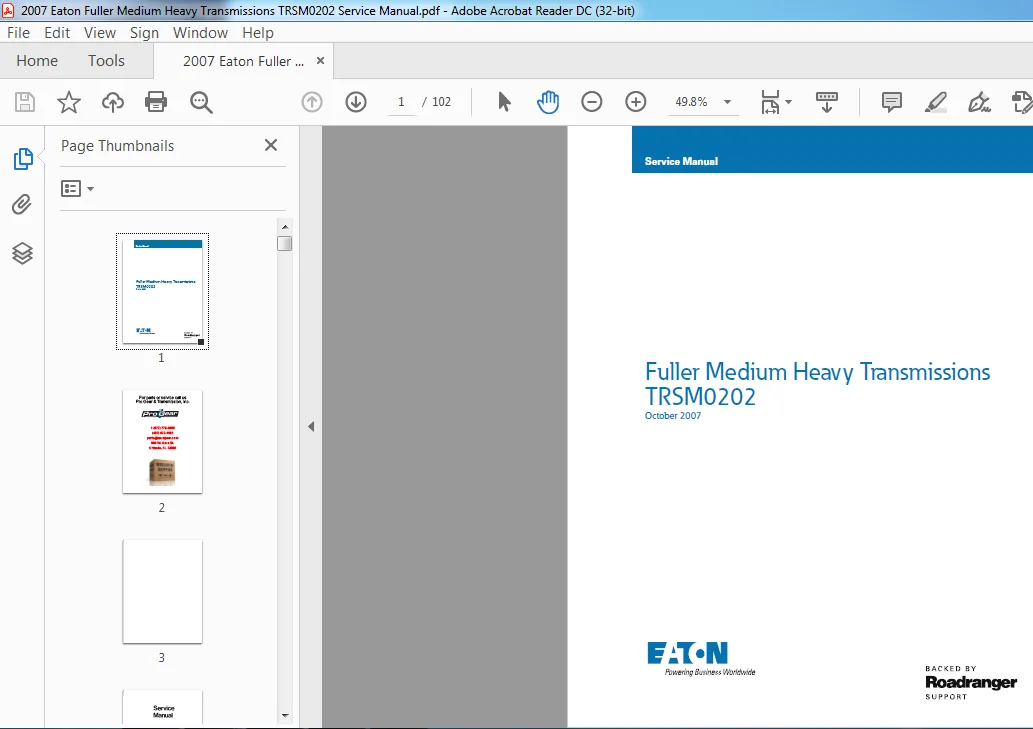

IMAGES PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
- This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
- Require some other service manual or have any queries: please WRITE to us at [email protected]
