2001 Mercedes-Benz ML320 Complete Service Manual – PDF DOWNLOAD
FILE DETAILS:
2001 Mercedes-Benz ML320 Complete Service Manual – PDF DOWNLOAD
Language : English
Pages : 3040
Downloadable : Yes
File Type : PDF
Size: 118 MB

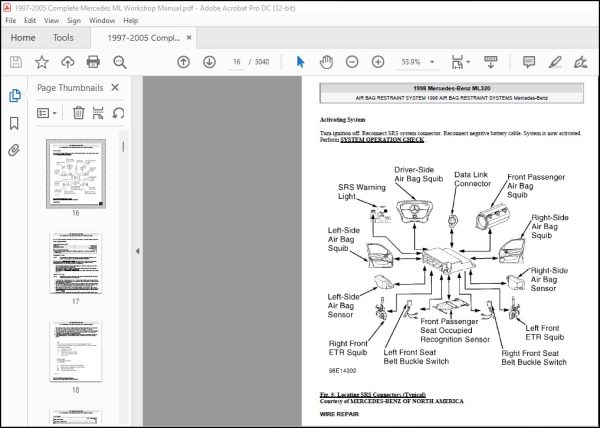

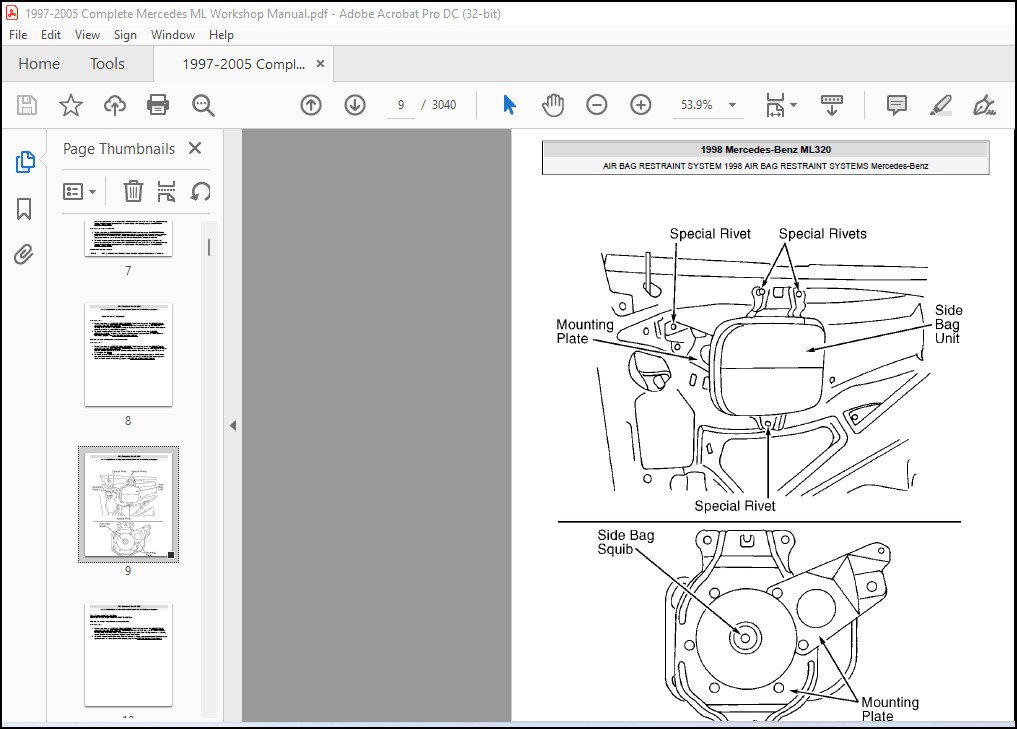

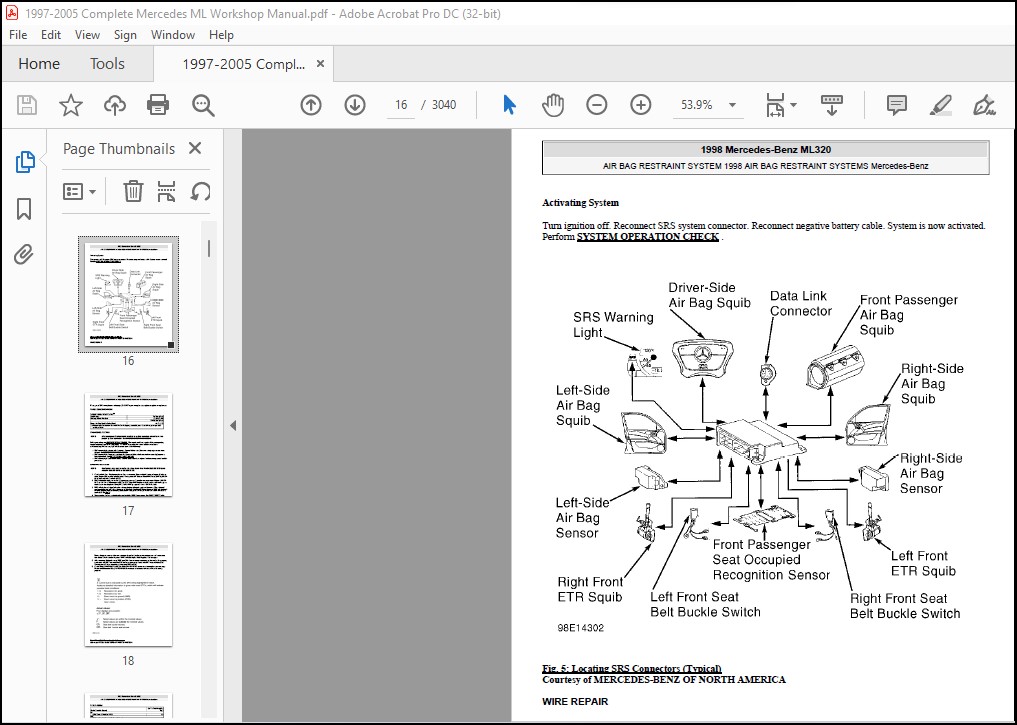

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
2001 Mercedes-Benz ML320 Complete Service Manual – PDF DOWNLOAD

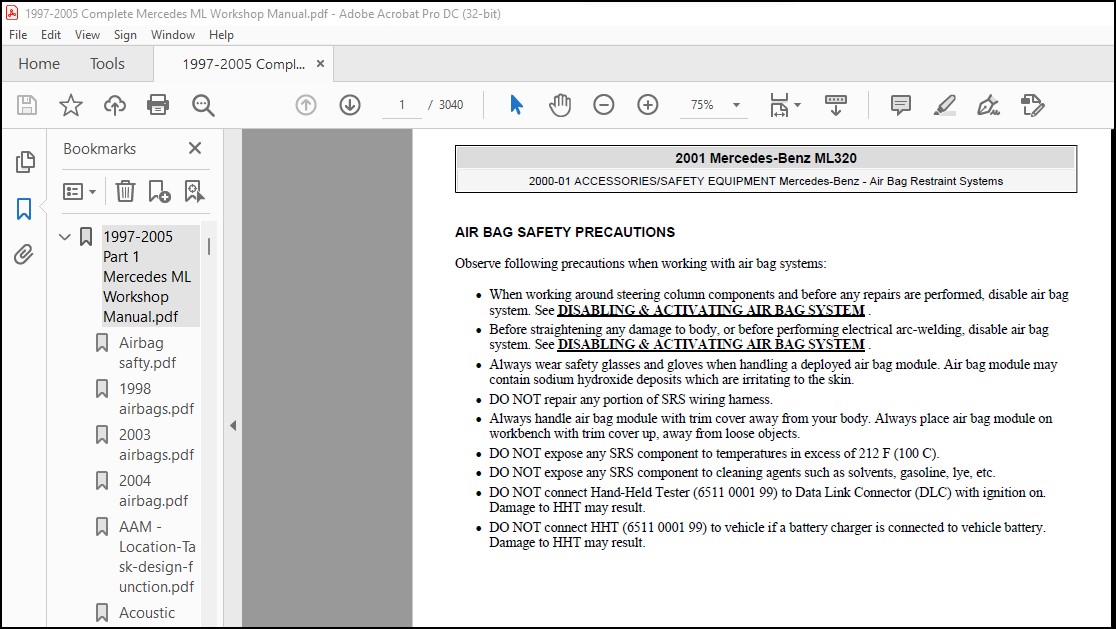

AIR BAG SAFETY PRECAUTIONS:
Observe following precautions when working with air bag systems:
When working around steering column components and before any repairs are performed, disable air bag
system. See DISABLING & ACTIVATING AIR BAG SYSTEM .
Before straightening any damage to body, or before performing electrical arc-welding, disable air bag
system. See DISABLING & ACTIVATING AIR BAG SYSTEM .
Always wear safety glasses and gloves when handling a deployed air bag module. Air bag module may
contain sodium hydroxide deposits which are irritating to the skin.
DO NOT repair any portion of SRS wiring harness.
Always handle air bag module with trim cover away from your body. Always place air bag module on
workbench with trim cover up, away from loose objects.
DO NOT expose any SRS component to temperatures in excess of 212 F (100 C).
DO NOT expose any SRS component to cleaning agents such as solvents, gasoline, lye, etc.
DO NOT connect Hand-Held Tester (6511 0001 99) to Data Link Connector (DLC) with ignition on.
Damage to HHT may result.
DO NOT connect HHT (6511 0001 99) to vehicle if a battery charger is connected to vehicle battery.
Damage to HHT may result
TABLE OF CONTENTS:
2001 Mercedes-Benz ML320 Complete Service Manual – PDF DOWNLOAD
1997-2005 Part 1 Mercedes ML Workshop Manual pdf 1
Airbag safty pdf 1
1998 airbags pdf 2
2003 airbags pdf 49
2004 airbag pdf 53
AAM – Location-Task-design-function pdf 72
Acoustic warnings – Function pdf 73
Air Intake -cover – remove&install pdf 74
Air intake turbocharger pdf 75
A-Pillar – Panelling – remove&install pdf 90
Assignment&cable connections of fuse blocks pdf 91
Auto Trans – Overhaul pdf 92
Auto Trans – Thickness of Friction and Steel disks K3 changed pdf 411
Auto Trans – Thickness of steel plates of B1,K1, and K2 modified pdf 412
Auto Trans Index pdf 413
Battery – remove&install pdf 414
Bench – bottom cover – remove&install pdf 416
Bench – rear seat bearing – replace pdf 418
Bench – remove&install pdf 419
Body Electrical pdf 421
Brush Guard Removal MY98-01 pdf 889
Brush Guard Removal MY2002 pdf 890
Bumper – Facelift – Brush Guard Remove pdf 891
Bumper – Facelift – Fog Lamps check pdf 892
Bumper – Facelift – Fog Lamps Remove&install pdf 893
Bumper – Facelift – Headlamp adjustment pdf 894
Bumper – Facelift – Rear Remove&install pdf 896
Bumper – Headlamp cleaning System – telescopic nozzle – location+task+design+func pdf 898
Bumper – Headlamp cleaning System – Survey of Components – Location pdf 899
Bumper – Headlamp cleaning System – Survey of Components pdf 900
Bumper – Headlamp cleaning System – telescopic nozzle – Function pdf 901
1997-2005 Part 2 Mercedes ML Workshop Manual pdf 902
Bumper – Headlamp cleaning System – telescopic nozzle – remove&install pdf 902
Bumper – Original – Brush Guard – Removal pdf 903
Bumper – Original – Front – remove&install pdf 904
Bumper – Original – Rear – Remove&install (1) pdf 906
Bumper – Original – Rear – remove&install pdf 908
Bumper – Styling (AMG) – Fog Lamp – Remove&install pdf 910
Bumper – Styling (AMG) – Fog Lamp Bulb – Remove&install pdf 911
Bumper – Styling (AMG) – Front – Parktronic Remove&install pdf 912
Bumper – Styling (AMG) – Front – remove&install pdf 913
Bumper – Styling (AMG) – Rear – Parktronic Remove&install pdf 915
Bumper – Styling (AMG) – Rear – Remove&install MY00-01 pdf 916
Bumper – Styling (AMG) – Rear – Remove&install MY02 pdf 917
Bumper Front Removal MY98-01 pdf 918
Bumper Front Removal MY2002 pdf 920
Bumper Rear Removal ML55 pdf 922
Bumper Rear Removal MY98-01 w Spare Wheel pdf 923
Bumper Rear Removal MY98-01 pdf 925
Bumper Rear Removal MY2002 AMG pdf 927
Bumper Rear Removal MY2002 pdf 928
CAN data lines test pdf 930
CAN input resistance, testing electrical system of IC pdf 931
Caps for solenoid valve pdf 932
Center Console – (as of 01 09 01) – disassembly&assembly pdf 933
Center Console – (as of 01 09 01) – front ashtray pdf 934
Center Console – (as of 01 09 01) – gear shift lever cover – remove&install pdf 935
1997-2005 Part 3 Mercedes ML Workshop Manual pdf 936
Center Console – (as of 01 09 01) – rear air nozzle pdf 936
Center Console – (as of 01 09 01) – rear ashtray pdf 937
Center Console – (as of 01 09 01) – rear beverage holder 1 pdf 938
Center Console – (as of 01 09 01) – rear beverage holder 2 pdf 939
Center Console – (as of 01 09 01) – rear center console switch module pdf 940
Center Console – (as of 01 09 01) – rear center console pdf 941
Center Console – (as of 01 09 01) – switch group pdf 942
Center Console – (up to 31 08 01) – disassembly&assembly pdf 943
Center Console – (up to 31 08 01) – front ashtray housing pdf 944
Center Console – (up to 31 08 01) – rear center section of console pdf 945
Center Console – (up to 31 08 01) – switch group pdf 946
Center Console – (up to 31 08 01) gear shift lever cover – remove&install pdf 947
Center Console – Armrest Lid – remove&install pdf 948
Center Console – remove&install pdf 949
Center Shift modified pdf 950
Centering sleeve – mounting pdf 951
Central Locking – Location of Components pdf 952
Central Locking – Test of Actuators pdf 953
Charge Air Cooler – remove&install (1) pdf 954
Charge Air Cooler – remove&install pdf 956
Charge indicator lamp, exterior lamp failure pdf 958
Charging pdf 959
Check tires for damage & cracks pdf 985
closing – function pdf 987
Comand Software Service CD pdf 988
1997-2005 Part 4 Mercedes ML Workshop Manual pdf 989
Compass – Service Info pdf 989
Control Buttons – Location, Task pdf 990
Convenience control – function pdf 991
Coolant – drain&pour pdf 992
Coolant – draining & pouring pdf 994
Coolant – ML270CDI -Drain&fill pdf 999
Coolant level switch pdf 1001
Cooling Sys-Remove oil from cooling & heating system pdf 1002
cover on bottom of rear seat – remove&install pdf 1006
crankshaft position sensor – DIY pdf 1008
crankshaft position sensor – remove&install pdf 1009
crankshaft position sensor pdf 1011
Cross Member – Front – remove&install pdf 1012
cylinder head – engine 112 – remove&install (1) pdf 1013
cylinder head – engine 112 – remove&install pdf 1021
Cylinder head cover trim – remove&install pdf 1029
Deletion of lever for shift lock cable ignition lock at transmission pdf 1030
Deletion shift lock cable ignition lock to transmission pdf 1031
Diagnostic Codes-(German) MB Codes pdf 1032
Disconnecting Airbag Certificate pdf 1133
Display Instruments – Location,task,function pdf 1134
Display Instruments, Multifunction display function check IC pdf 1135
Displaying Coolant Level – as of 03 99 pdf 1136
Displaying service – function pdf 1137
Dome Lamp – Front – remove&install pdf 1138
Door – catch – remove&install pdf 1139
Door – Front – Handle – Exterior – Remove&Install pdf 1141
Door – Front – Liner – remove&install pdf 1143
1997-2005 Part 5 Mercedes ML Workshop Manual pdf 1144
Door – Front – Lock – adjusting pdf 1144
Door – Front – Lock – remove&install pdf 1145
Door – Front – Lock – service information – adjusting pdf 1146
Door – Front – Lock – service information – modifications pdf 1147
Door – Front – Mirror – adjustment motor – remove&install pdf 1148
Door – Front – Mirror – cover – remove&install pdf 1149
Door – Front – Mirror – glass – remove&install pdf 1150
Door – Front – Mirror – remove&install pdf 1151
Door – Front – modifications pdf 1152
Door – Rear – Liner – remove&install pdf 1153
Door – Sill moulding – remove&install (1) pdf 1154
Door – Sill moulding – remove&install pdf 1155
Door Handle Removal – Front pdf 1156
Door Sill Moulding – remove&install pdf 1159
D-Pillar – Panelling – remove&install pdf 1160
Drain fuel pdf 1162
Draining Tirefit sealant out of tires pdf 1165
Drive Authorization Module – remove&install pdf 1166
EAM – Location-Task pdf 1167
EAM – Task pdf 1168
Easy Entry will not operate pdf 1169
electrical components pdf 1170
electrical system engine pdf 1184
Electronic Clock – Location, function pdf 1257
Empty tank if fuel pump is faulty pdf 1258
Engine – Bottom Compartment Paneling – remove&install pdf 1261
Engine – Oil and Filter change pdf 1262
engine compartment panelling – remove&install pdf 1265
Engine oil monitor function pdf 1266
Engine runs rough, surges or does not turn over pdf 1269
1997-2005 Part 6 Mercedes ML Workshop Manual pdf 1271
Engine runs rough, surges or does not turn over pdf 1271
Engine sometimes fails to start (start error in IC) pdf 1273
engine timing pdf 1274
engine pdf 1388
ESA – contents pdf 1542
Extended Activity Module (EAM) – remove&install pdf 1543
Extract oil pdf 1544
feed pressure valve pdf 1545
Fog Lamps check MY2002 pdf 1546
Fog Lamps Removal MY2002 pdf 1547
Footwell – Right – Panelling – remove&install pdf 1548
Frame Paneling – Rear Roof – remove&install pdf 1549
Friction bearing in sun wheel or rear plant gear set converted to anti-friction bearing pdf 1551
front axle pdf 1552
Front Door Speakers in Mirror Triangle – remove&install pdf 1614
Fuel Cooler – ML270CDI – remove&install pdf 1615
Fuel Filler Flap – Locking Motor – remove&install (1) pdf 1618
Fuel Filler Flap – Locking Motor – remove&install pdf 1619
Fuel Filler Flap central locking motor – remove&install pdf 1620
Fuel Filter – replace ML270CDI pdf 1621
Fuel full-flow filter – ML270CDI remove&install pdf 1623
Fuel full-flow filter – remove&install pdf 1625
Fuel Guage not registering correctly after refueling pdf 1627
Fuel Level Sensor – ML270CDI remove&install pdf 1628
Fuel Lines – separate form engine pdf 1631
Fuel Pump – faulty pdf 1632
Fuel Tank – Capacity pdf 1635
Fuel Tank – emptying&filling pdf 1638
Fuel Tank – removing&installing pdf 1640
1997-2005 Part 7 Mercedes ML Workshop Manual pdf 1644
fuel tank pressure sensor (usa only) – remove&install pdf 1644
Fuel Vapor expansion reservoir – remove&install pdf 1645
fuses pdf 1647
general info pdf 1678
Glove Compartment – New – remove&install pdf 2210
Glove Compartment – Old – adjust lid pdf 2211
Glove Compartment – Old – lid – remove&install pdf 2212
Glove Compartment – Old – remove&install pdf 2213
Glove Compartment – Old (up to 31 08 99) – lid – disassembly&assembly pdf 2214
Hand Held Tester (HHT) – Location, Task pdf 2215
Hand Held Tester (HHT) connect & readout pdf 2216
Hand Held Tester (HHT) notes on previous knowledge IC pdf 2217
Headlamp adjustment MY2002 pdf 2218
HHT interface test electrics IC pdf 2220
High oil consumption – blue smoke pdf 2221
High oil consumption pdf 2222
Hood – Adjust pdf 2225
Hood – alignment pdf 2227
Hood – control cable – remove&install pdf 2229
Hood – emblem – remove&install pdf 2230
Hood – Hinge – remove&install pdf 2231
Hood – hinge support – reinforce (left) pdf 2232
Hood – hinge support – reinforce (right) pdf 2235
Hood – Lock – as of (01 09 99) – remove&install pdf 2238
Hood – Lock – lubricate catch, hook, hinges pdf 2239
Hood – Lock – up tp (31 08 99) – remove&install pdf 2240
Hood – remove&install pdf 2241
Hood – struts – release gas pdf 2242
Hood – struts – remove&install pdf 2243
hvac manual pdf 2244
hvac pdf 2277
1997-2005 Part 8 Mercedes ML Workshop Manual pdf 2510
IC test of electrical system coolant level indicator pdf 2510
Indicator – Warning Displays – function pdf 2511
Indicator – Warning messages displays – Function pdf 2512
Indicator – Warning messages triggered via CAN data buses – function pdf 2513
Indicator & Warning Signals triggered over direct lines pdf 2514
Information on Tires-Rims pdf 2515
inner clamp – detach & attach pdf 2517
Inside rearview Mirror – remove&install pdf 2518
Instrument Cluster – Bulbs – installing bulbs pdf 2519
Instrument Cluster – Bulbs – Remove & Install pdf 2520
Instrument Cluster – Bulbs – removing bulbs pdf 2521
Instrument Cluster – Housing – Remove & Install pdf 2522
Instrument Cluster – Location of Components – 01 pdf 2523
Instrument Cluster – Remove & Install pdf 2524
Instrument Cluster – Testing electrical system IC pdf 2526
Instrument Cluster (IC) – Diagnosis Troubleshooting pdf 2527
Instrument Cluster Block Diagram pdf 2528
Instrument CLuster indicates oil sensor defective, level below min pdf 2529
Instrument Panel – Bottom Section – Remove&Install pdf 2530
Instrument Panel – Center Section – Remove&Install pdf 2532
Instrument Panel – Combination Switch – Remove&Install pdf 2534
Instrument Panel – Cover below (left) – remove&install pdf 2536
Instrument Panel – Cover below (right) – 1 – remove&install pdf 2537
1997-2005 Part 9 Mercedes ML Workshop Manual pdf 2538
Instrument Panel – Cover below (right) – 2 – remove&install pdf 2538
Instrument Panel – Heater,Ventilation switch – ( as of 01 09 01) Remove&Install pdf 2539
Instrument Panel – Heater,Ventilation switch – ( up to 31 08 01) Remove&Install pdf 2540
Instrument Panel – panel carrier – remove&install pdf 2541
Instrument Panel – Parktronic Display – Remove&Install pdf 2543
Instrument Panel – Passenger Airbag – Remove&Install pdf 2544
Instrument Panel – Remove&Install pdf 2546
Instrument Panel – Ticking Noise pdf 2548
Intake air temperature sensor – remove&install pdf 2549
interior equipment pdf 2550
Lifting – pit lift or Workshop jack pdf 2632
Liquid Crystal Display pdf 2633
location of components pdf 2634
Luggage Floor Covering – remove&install pdf 2635
Magnet in Oil Pan pdf 2637
Noise Encapsulation – Front – remove&install pdf 2638
Noise encapsulation – Modify pdf 2639
Noise encapsulation – remove&install pdf 2640
Note on Self Locking Nuts & Bolts pdf 2641
OBD2 Connector Pinout pdf 2642
Oil consumption too high pdf 2643
Oil drain plug on torque converter pdf 2644
Oil Filter element – replace & drain oil filter pdf 2645
Oil Filter element – replace & drain oil pdf 2646
Oil leak out of drain opening – left side of engine (cyl 6) pdf 2648
Oil Pan and Overflow tube modified pdf 2649
Oil Sensor – function pdf 2650
1997-2005 Part 10 Mercedes ML Workshop Manual pdf 2651
Oil Sensor – Location,task,design,function pdf 2651
Oil Sensor – position pdf 2652
Oils – Multigrade (sheet 229 3) pdf 2653
Opening – popup – function pdf 2657
Outside Door Rearview Mirror – Covering – remove&install pdf 2658
Outside Door Rearview Mirror – Covering (up to 31 08 01) – remove&install pdf 2659
Outside Door Rearview Mirror – Mirror Glass – remove&install pdf 2660
Outside Temperature display – Location,function pdf 2661
Overhead control Panel – popup,sliding roof – remove&install pdf 2662
Overhead control Panel – remove&install pdf 2663
Parktronic Removal MY2002 pdf 2664
perpare glue cartridge pdf 2665
Piston B2 changed pdf 2666
Piston rings – measure clearance pdf 2667
Piston rings – measure gap pdf 2668
Piston Rings – remove&install pdf 2669
Pistons – remove&install pdf 2671
Plain Bearing of input shaft changed to anti-friction bearing pdf 2676
Primary pump non-return valve pdf 2677
Quartz – Location,Function pdf 2678
Radiator – ML320 – electric fan – remove&install pdf 2679
Radiator – ML320 – remove&install pdf 2680
Radiator – Electric Fan – remove&install pdf 2683
Radiator – Install&remove pdf 2684
Radio – remove&install pdf 2688
Raising or jacking up vehicle pdf 2690
Rear Roof Frame Panelling – remove&install (1) pdf 2691
Rear Roof Frame Panelling – remove&install pdf 2693
Replace Spark plugs pdf 2695
Replace Tire pdf 2697
1997-2005 Part 11 Mercedes ML Workshop Manual pdf 2699
Retrofit fender flares pdf 2699
Retrofiting rings for child seat restraint attachments pdf 2702
Roof Paneling – modify for handle & clamping strap mounts – 02 pdf 2705
Roof Paneling – modify for handle & clamping strap mounts pdf 2706
Seal on popup roof gutter loosens pdf 2707
Seat – Front – Adjustment – Control module – Remove&Install pdf 2708
Seat – Front – Adjustment – Switch – Remove&Install pdf 2710
Seat – Front – Backrest – Remove&Install pdf 2711
Seat – Front – Backrest – Shell – Remove&Install pdf 2713
Seat – Front – Cover – Backrest Remove pdf 2714
Seat – Front – Cover – Cushion – Remove&Install pdf 2715
Seat – Front – Frame Trim – Remove&Install pdf 2716
Seat – Front – Memory – function pdf 2717
Seat – Front – Motor – Backrest – Remove&Install pdf 2719
Seat – Front – Motor – Group – Remove&Install pdf 2720
Seat – Front – Remove&Install pdf 2722
Seat – Rear – Covers – bottom – remove&install pdf 2724
Seat – Rear – Cushion cover – remove&install pdf 2726
Seat – Rear – Cushion frame – remove&install pdf 2728
Seat – Rear – Folding – lock mechanism – remove&install pdf 2730
Seat – Rear – Tilting – remove&install pdf 2732
Seat Belt – 3rd row – remove&install pdf 2734
Seat Belt – Front – belt buckle – remove&install pdf 2735
Seat Belt – Front – w emergeny tensioning retractor – remove&install pdf 2736
1997-2005 Part 12 Mercedes ML Workshop Manual pdf 2738
Seat Belt – Rear – 01 remove&install pdf 2738
Seat Belt – Rear – belt buckle – 01 – remove&install pdf 2740
Seat Belt – Rear – belt buckle – 02 – remove&install pdf 2741
Seat Belt – Rear – belt buckle – 03 – remove&install pdf 2742
Seat Belt – Rear – belt buckle – remove&install pdf 2743
Seat Belt – Rear – center – 01 – remove&install pdf 2744
Seat Belt – Rear – center – remove&install pdf 2746
Seat Belt – Rear – remove&install pdf 2748
Service Info – Bowden Cables pdf 2749
Service Info – Fuel tank leaks pdf 2750
Service Info – Procedure when tank is filled with incorrect fuel pdf 2751
Service Info – reverse child seat – airbag immobilization pdf 2752
Service Information – Oil Sludge pdf 2754
Sliding – Popup – Function pdf 2756
Spare Wheel Cover – AMG – install&remove pdf 2757
Spare Wheel Cover – ML55 – remove&install (1) pdf 2758
Spare Wheel Cover – ML55 – remove&install pdf 2759
Speed control pdf 2760
Star Diagnosis – connect & readout – 01 pdf 2798
Star Diagnosis – connect & readout pdf 2799
Star Diagnosis – procedural schematic pdf 2801
Starter pdf 2802
Steering lock switch testing electrical system of IC pdf 2814
Steering Rack Boot – check & replace pdf 2815
Steering Wheel – Airbag – (up to 31 08 01) – remove&install pdf 2816
Steering Wheel – contact spiral – remove&install pdf 2818
Steering Wheel – remove&install pdf 2819
1997-2005 Part 13 Mercedes ML Workshop Manual pdf 2821
Steering-Rack and Pinion Steering – remove & install pdf 2821
Steering-Tie rod – Pressing out and attaching track rod joint at steering knuckle pdf 2824
Steering-Tie Rod – remove&install pdf 2825
Steering-tie rod and drag link joint – checking for play & checking ribber boots pdf 2827
Steering-tie rod inner with axial joint remove&install pdf 2828
Stepper Motor pdf 2829
Strainer for modulating pressure and shift pressure control solenoid valve pdf 2830
Strainer in inlet to converter lock-up control solenoid valve pdf 2831
Styling Package – Cutting Tool pdf 2832
Styling Package – Prepare Body pdf 2833
Styling Package – Prepare detachable body components pdf 2834
Styling Package – Separate detachable body components pdf 2835
Suspension pdf 2837
Synchronizing Sliding-popup roof – function pdf 2865
Tirefit puncture sealing compund – check expiry date pdf 2866
Tirefit tire sealant pdf 2869
trim panel – charge air distribution – 611 engine pdf 2870
trim panel – charge air distribution – 612 engine pdf 2871
trim panel – charge air distribution – 613 engine pdf 2872
Trip Computer – Compass Location pdf 2873
Trip Computer – Compass Purpose pdf 2874
Trip Computer – Design jpg (1) pdf 2875
Trip Computer – Design jpg pdf 2876
Trip Computer – Location, Task pdf 2877
Trip Computer – LocationTaskDesign pdf 2878
1997-2005 Part 14 Mercedes ML Workshop Manual pdf 2879
Trip Computer – remove&install pdf 2879
Trip Computer – Task pdf 2880
troubleshooting – instruments controlled directly – IC pdf 2881
troubleshooting – instruments controlled via CAN – IC pdf 2882
Viscosity classes of engines oils (Car engines) pdf 2883
Viscous fan clutch – remove&install pdf 2884
Warning Buzzer function Check IC pdf 2886
Wheel sensor – remove&install pdf 2887
Wheels – Balancing pdf 2889
Wheels – condition of rim pdf 2891
Wheels – remove&install (rotate if necessary) pdf 2892
Wind noise at outside mirror pdf 2894
Wiper – Arms – remove&install pdf 2895
Wiper – System – remove&install pdf 2896
Wiring pdf 2897
1997-2005 Part 15 Mercedes ML Workshop Manual pdf 3032
V60 Programming Bulletin pdf 3032
V60-Hand Set my05 pdf 3035
Video System – Retrofit pdf 3038
VIDEO PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the SAME MANUAL used by the dealerships to diagnose your vehicle
- No waiting for couriers / posts as this is a PDF manual and you can download it within 2 minutes time once you make the payment.
- Your payment is all safe and the delivery of the manual is INSTANT – You will be taken to the DOWNLOAD PAGE.
- So have no hesitations whatsoever and write to us about any queries you may have : heydownloadss @gmail.com
S.V
