2000 Volvo S80 Wiring Diagrams Download
FILE DETAILS:
2000 Volvo S80 Wiring Diagrams Download
FILE TYPE:PDF
MANUAL LANGUAGE:ENGLISH
DOWNLOADABLE:YES
PAGES:700+

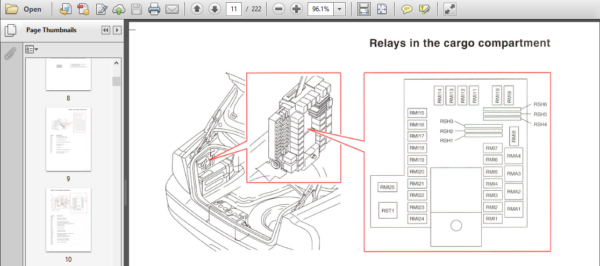

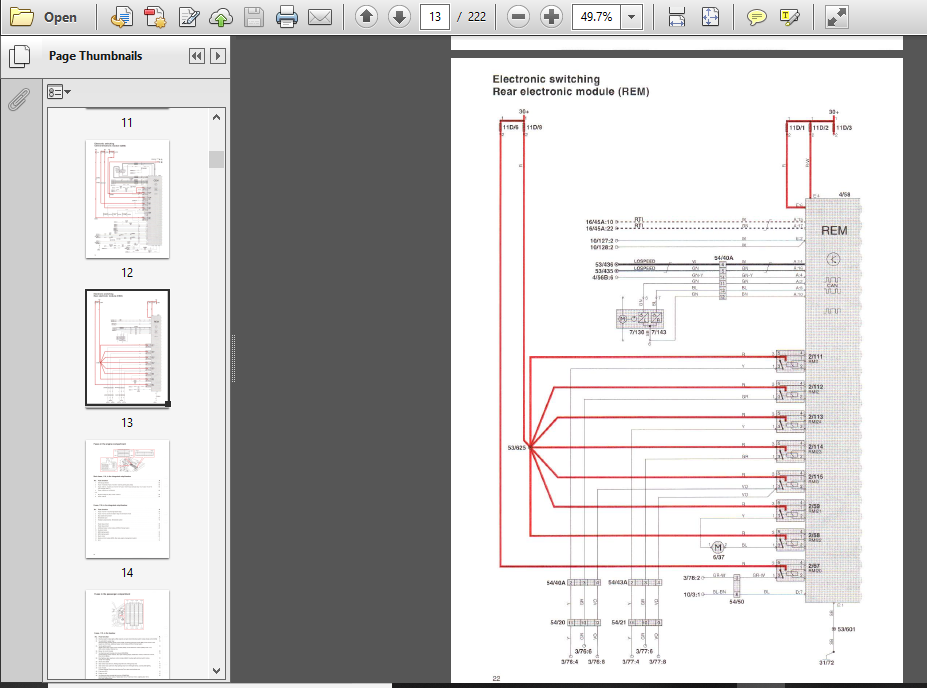

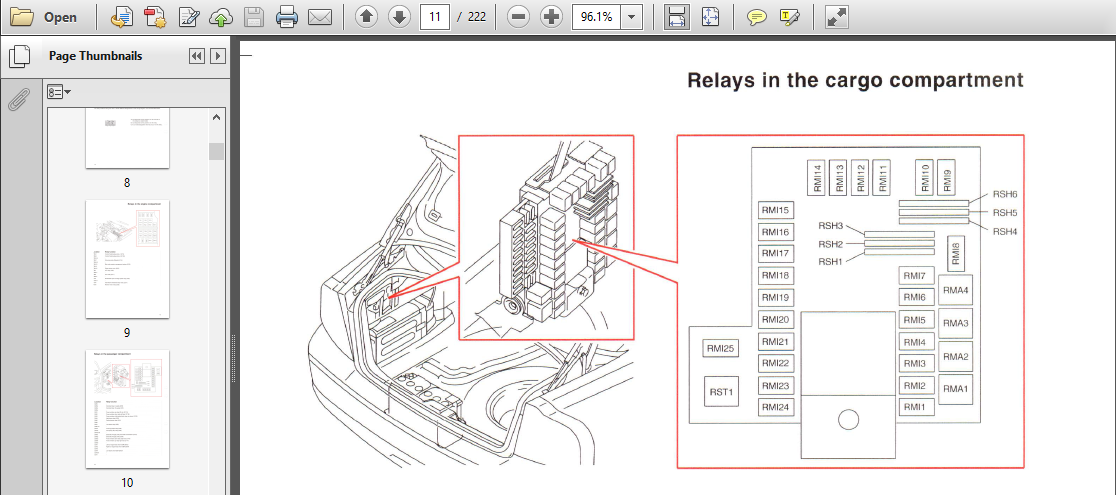

SAMPLE PAGE FROM THE MANUAL:
2000 Volvo S80 Wiring Diagrams Download
Dashboard or round steering-column cover
Ensure that the SRS wires are not trapped , rubbed or drilled through by screws when working on the sound wall , knee protect旧n ， ignition lock , steering-column covers , glove box and dashboard， as well as sills and B pillars
Tunnel console
The SRS impact sensor SRS is located between the handbrake and the gear lever in the center console. Never install accessories by the sensor
Steering and front end work
Where applicable , work on the steering wheel , steering shaft or steering gear must be carried out in accordance with the methods in the SRS service manual. Read the appropriate sections! The contact reel wiU be damaged if the steering wheel is turned more than three times in either direction!
Seats
The SIPS bag sensor unit is located to the front of the seat compartment. The SIPS bag can be r~leased by hitting or pressi.ng against the sea!.compart.ment orby objects being caught against the seat compartment when the door is closed. When working on the seats , see the service manual on the SIPS bag
Test link
Interior data link connector
TABLE OF CONTENTS:
2000 Volvo S80 Wiring Diagrams Download
Abbreviations 3
How to use the wiring diagram 4
Fuses
in the engine compartment 6
in the passenger compartment 8
in the cargo compartment 10
Ignition switch 12
Relays
general 12
in the engine compartment 13
in the passenger compartment 14
in the cargo compartment 15
in the engine compartment fuse box 16
Electrical distribution 18
Data communication 22
Electronic switching
Central electronic module (CEM) 26
Rear electronic module (REM) 30
Cable harnesses – overview 34
Cable harness routing in vehicle 36
Connectors – overview 50
Connectors 52
Junction points 75
Ground connection 97
Control modules – overview 102
Engine control system, Denso 104
Engine control system, ME7
5 cyl 108
6 cyl 112
Engine control system, MSA 15 8 116
Emissions control, Denso 120
Emissions control, ME7 122
Group 26
Electric cooling fan 124
Group 27
Cruise control 126
Group 32
Power supply 128
Group 33
Starting system 130
Group 35
High beam, low beam, and auxiliary light wiring 132
Beam length adjustment 134
Fog lights (S80) 136
Fog lights (V70) 138
Parking lights, taillights, and license plate lighting (S80) 140
Parking lights, taillights, and license plate lighting (V70) 142
Brake lights (S80) 144
Brake lights (V70) 146
Reversing lights (S80) 148
Reversing lights (V70) 150
Interior lighting (S80) 152
Interior lighting (V70) 154
Instrument and control lighting 156
Safety lighting 158
Group 36
Turn signals and hazard warning flashers (S80) 160
Turn signals and hazard warning flashers (V70) 162
Horn 164
Windshield wiper/washer 166
Headlight wiper/washer 168
Rear window wiper/washer 170
Cigarette lighter 172
Anti-theft alarm (S80) 174
Anti-theft alarm (V70) 176
Electronic immobilizer 178Cars with SRS
Content 1:2, 2:2
Abbreviations
How to use the wiring diagra1:2, 2:2
Fuses in the engine compartment 1:2, 2:2
Fuses in the passenger compartment 1:2, 2:2
Fuses in the cargo compartment 1:2, 2:2
Ignition switch
Relays general
Relays in the engine compartment
Relays in the passenger compartment
Relays in the cargo compartment
Relays in the engine compartment fuse box 1:2, 2:2
Electricadistribution
Electricadistribution 1:4
Electricadistribution 2:4
Electricadistribution 3:4
Electricadistribution 4:4
Data communication
Data communication 1:4
Data communication 2:4
Data communication 3:4
Data communication 4:4
Electronic switching
Centraelectronic module (CEM) 1:4
Centraelectronic module (CEM) 2:4
Centraelectronic module (CEM) 3:4
Centraelectronic module (CEM) 4:4
Electronic switching
Centraelectronic module (REM) 1:4
Centraelectronic module (REM) 2:4
Centraelectronic module (REM) 3:4
Centraelectronic module (REM) 4:4
Cable harnesses – overview 1:2, 2:2
Cable harness routing in vehicle
Engine harness (ME7 / Denso)
Engine harness (MSA 15.8)
Engine compartment harness (LHD)
Engine compartment harness (RHD)
Front harness and soft nose harness
Roof harness S80/V70 and inflatable curtain harness V70
Passenger compartment harness, front portion (LHD)
Passenger compartment harness, front portion (RHD)
Passenger compartment harness, rear portion S80
Passenger compartment harness, rear portion V70
Cargo compartment harness S80 / V70
Tailgate harness S80 / V70
Front and rear door harness and door paneharness S80
Front and rear door harness and door paneharness V70
Connectors – overview 1:2, 2:2
Connectors
Contromodules – overview (S80)
Contromodules – overview (V70)
Engine controsystem
Denso 1:4
Denso 2:4
Denso 3:4
Denso 4:4
Engine controsystem
ME7 5 cy1:4
ME7 5 cy2:4
ME7 5 cy3:4
ME7 5 cy4:4
Engine controsystem
ME7 6 cy1:4
ME7 6 cy2:4
ME7 6 cy3:4
ME7 6 cy4:4
Engine controsystem
MSA 15.8 1:4
MSA 15.8 2:4
MSA 15.8 3:4
MSA 15.8 4:4
Emissions control, Denso 1:2, 2:2
Emissions control, ME7 1:2, 2:2
Group 26
Electric cooling fan 1:2, 2:2
Group 27
Cruise contro1:2, 2:2
Group 32
Power supply 1:2, 2:2
Group 33
Starting syste1:2, 2:2
Group 35
High beam, low beaand auxiliary light wiring 1:2, 2:2
Bealength adjustment 1:2, 2:2
Fog lights (S80) 1:2, 2:2
Fog lights (V70) 1:2, 2:2
Parking lights, taillights, and license plate lighting (S80) 1:2, 2:2
Parking lights, taillights, and license plate lighting (V70) 1:2, 2:2
Brake lights (S80) 1:2, 2:2
Brake lights (V70) 1:2, 2:2
Reversing lights (S80) 1:2, 2:2
Reversing lights (V70) 1:2, 2:2
Interior lighting (S80) 1:2, 2:2
Interior lighting (V70) 1:2, 2:2
Instrument and controlighting 1:2, 2:2
Safety lighting 1:2, 2:2
Group 36
Turn signals and hazard warning flashers (S80) 1:2, 2:2
Turn signals and hazard warning flashers (V70) 1:2, 2:2
Horn 1:2, 2:2
Windshield wiper/washer 1:2, 2:2
Headlight wiper/washer 1:2, 2:2
Rear window wiper/washer 1:2, 2:2
Cigarette lighter 1:2, 2:2
Anti-theft alar(S80) 1:2, 2:2
Anti-theft alar(V70) 1:2, 2:2
Electronic immobilizer 1:2, 2:2
Group 37
Diagnostics 1:2, 2:2
Towing bracket wiring 1:2, 2:2
Auxiliary heater 1:2, 2:2
Cargo compartment outlet 1:2, 2:2
Seat belt reminder 1:2, 2:2
Combination instrument 1:2, 2:2
Radio without extra amplifier (S80) 1:2, 2:2
Radio without extra amplifier (V70) 1:2, 2:2
Radio with extra amplifier 1:2, 2:2
Radio with extra amplifier (S80)
Radio with extra amplifier (V70)
RTI Road Traffic Information 1:2, 2:2
Mobile telephone 1:2, 2:2
Group 43
Automatic transmission AW 50-42 1:2, 2:2
Automatic transmission AW 55-50 1:2, 2:2
Automatic transmission 4T65EV 1:2, 2:2
Geartronic 1:2, 2:2
Shift lock 1:2, 2:2
Group 59
ASB Brake systeand STC 1:2, 2:2
ABS Brake systeand DSTC 1:1, 2:2
Group 64
Electronic power steering 1:2, 2:2
Group 83
Power windows (S80) 1:2, 2:2
Power windows (V70) 1:2, 2:2
Centralocking (S80) 1:2, 2:2
Centralocking (V70) 1:2, 2:2
Power sunroof 1:2, 2:2
Group 84
Heated rear window (S80) 1:2, 2:2
Heated rear window (V70) 1:2, 2:2
Heated door mirrors 1:2, 2:2
Power door mirrors 1:2, 2:2
Group 85
Heated seats 1:2, 2:2
Power driver seat 1:2, 2:2
Power passenger seat 1:2, 2:2
Group 87
Standard heater 1:2, 2:2
Manuaclimate controMCC 1:2, 2:2
Electrically climate controECC 1:2, 2:2
Group 88
Electrically foldable head restraint 1:2, 2:2
SRS SupplementaRestraint Syste1:2, 2:2
Remote controlled garage door opener 1:2, 2:
