DESCRIPTION:

1999 Doosan DH200W Excavator Parts Manual – PDF DOWNLOAD

• Daewoo reserves the right to improve our products in a continuing process to provide the best possible product to the market place. These improvements can be implemented at any time with no obligation to change materials on previously sold products.
• It is recommended that consumers periodically contact their distributors for recent documentation on purchased equipment. This documentation may include attachments and optional equipment that is not available in your machine’s package.
• Please call your distributor for additional items that you may require. Illustrations used throughout this manual are used only as a representation of the actual piece of equipment, and may vary from the actual item.

2. HOW TO USE THIS PARTS LIST

• Key No. Part No. : It shows the reference no. on the illustration. : It shows the part number. Description : It shows the name of part. Components of an assembly part are shown with l•l marks and are shown on the line, or lines, below the assembly part.
• Also if the components with [•l mark consists of further components part. these further components are shown by the marks [N]. Q’ty :It shows the quantity use for one machine. quantity of components show the quantity for one assembly part.
• Service code : Abbreviations in this column have their own meaning as show below. B : The parts with this abbreviation shows that the part requires some work on it before installing in the machine.
• D : The part with this abbreviation is a component of an assembly and is not available independently. The assembly part containing this part should be ordered. K : This means that the part is contained in the service part kit.
• M : This means that the part is available only with its mating parts altogether. R : The part with this abbreviatibn shows that the quantity of the part is changed depending on the machine, such as an adjusting shim etc.
• S : This part is specially provided as a service part, which was not provided in the machine before shipping from the factory. G : This part need grade control and should be requested as the same grade of counter part.
• OP : Optional parts. EX : Specific design parts. OS: Over-sized parts. US : Under-sized parts. (Part with abbreviation “OS” or “US” is described on the line below the standard sized part.) # : The part with this mark is newly added on that page of the equipment.
• Serial no. . Serial No. shows the machine serial number which the parts were applied. (THIS PARTS BOOK IS FOR REFERENCE ONLY. PART NUMBERS AND SERAIL NUMBERS MAY BE OUTDATED. ALWAYS USE THE ONLINE PARTS SYSTEM
• As to the engine serial No. shows only engine serial number which the parts were applied. Parts without any applicable serial number are used in every machine. ICA : ICA shows the interchangeability between the original and the improved parts.
• Abbreviations used in this column are as follows ; I : Part No. in the column of “Replaceable part” can be used instead of this part but not vice versa. P : This must not be used for machine. The part No. in the column “Replaceable part” should be used instead.
• T : Parts Nos. those in the column of “Replaceable part” can be used as an assembly instead of this part. Y : This part and the part in the column of “Replaceable part” are interchangeable with each other. BLANK :
• This part has no REPLEACE part” Replaceable part : Interchangeable parts nos. and their required quantity are shown in this column.
• If interchangeable improved parts are provided for the parts which you may order, the improved parts classified as “I”, “P”, “T” or “Y” may be supplied. • When repairing, it is recommended to use our standard part. • Researching the assembling parts from part No., see the ‘Parts Index of this parts list.

TABLE OF CONTENTS:

1999 Doosan DH200W Excavator Parts Manual – PDF DOWNLOAD

ENGINE PARTS
CONTENTS
TABLE DES MATIERES

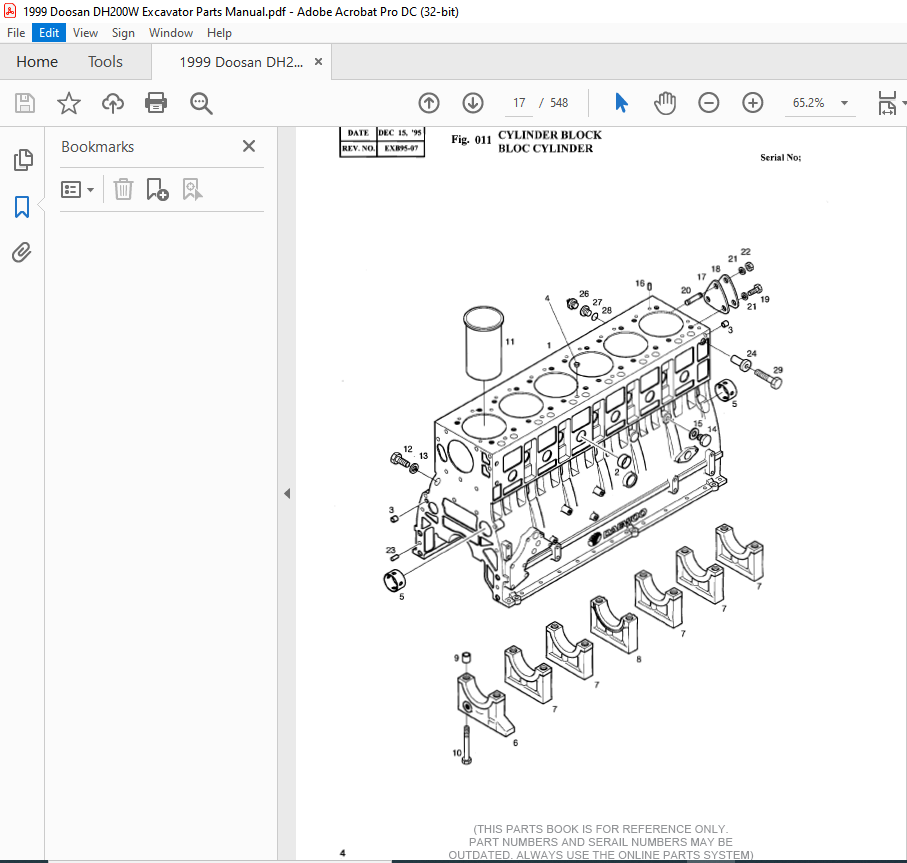

Fig 011 Cylinder Block Bloc Cylinder 2
012 Timing Gear Case Carter De Distribution 6
013 Flywheel Housing Carter De Volant
014 Bearing Case Carter De
015 Crank Shaft , ,
016 Piston Piston 18
017 Cylinder Head
018 Cam Shaft ,
019 Intermediate Gear

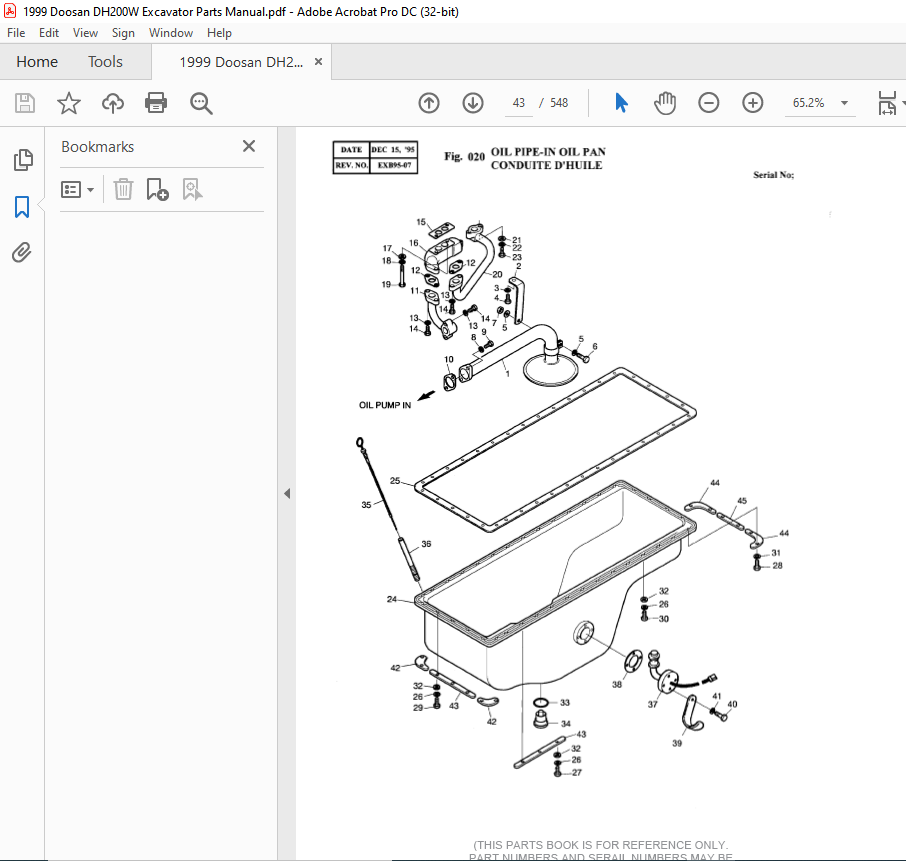

020 Oil Pipe-In Oil Pan
021 Oil Filter Filter A
022 Oil Cooler
023 Cooling Water Pump
024 Cooling System
025 Intake, Exhaust Manifold
026 Nozzle Holder , Porte
027 Injection Pipe
028 Injection Pump
029 Fuel Filter (1)
030 Fuel Filter (2)
031 Fuel Strainer
032 Generator
033 Starter”
034 Tachometer Drive —
035 Engine Mounting Support
SWING BODY PARTS
Fig 1100 Main Frame
1110 Engine
1115 Radiator ”
1120 Air Cleaner
1125 Air Cleaner (Inner Parts)
1126 Air Cleaner (Inner Parts)
1130 Swing Device
1140 Swing Device
(THIS PARTS BOOK IS FOR REFERENCE ONLY
PART NUMBERS AND SERAIL NUMBERS MAY BE
OUTDATED ALWAYS USE THE ONLINE PARTS SYSTEM)
Fig 1150 Oil Tank Reservoir D1Iuile , 88
1160 Fuel Tank Reservoir De
1170 Main Piping (1)-For 028 CN “”
1180 Main Piping (2)-For D28W C/V
1190 Low Press Piping (1)-For U28
1200 Low Press Piping (2)-For D28W CN
1210 Pilot Piping ( 1)-For U28 C/V
1220 Pilot Piping (2)-For D28W C/2
1230 Steering Piping
1240 Transmission Pilot Piping
1250 Brake Piping
_1260 Steering Direction 146
1270 Engine control Lever  Regime Motor 150
1280 Control Stand Console De
1290 Cabin ,
1295 Seat
1300 cabin Parts
1305 Sponge :Cabin Material De Decoration 180
1310 Heater
1320 Cover Ca pot 184
1330 Under Cove
1340 Support Supports 192
1350 Lubricating Piping
1360 Fuel Pump (1)
1370 Fuel Pump (2)
1380 Electrical Parts (1) Equipment
1390 Electrical Parts (2) Equipment
1400 Cooler
POWER TRAIN
Fig 2100 Power Train
2110 Chassis Chassis 228
2120 Dozer Dozer 232
2130 ‘Outrigger ,
2140 Brake Under Piping Conduit
2160 Propelling Pipin~THr5~pJ~r5gooR ~D
2170 Dozer Piping ‘PART’
OUTDATED ALWAYS USE THE ONLINE PARTS SYSTEM)
FRONT PARTS
Fig 3100 Boom Fleche 250
3110 Arm
3120 Bucket (1)-075M3 Godet 254
3130 Bucket (1)-075M3 Godet 256
3140 Front Piping
3150 Lubricate Piping
OTHER PARTS
Fig 4100 Name Plate-Domestic Plaque
4105 Name Plate-Export Plaque
4110 Tools OUT tillage 270
4120 Spare Part Pieces De R
OPTION PARTS
Fig 5100 Rear Outrigger
5110 Attach Piping-Front
5120 Option Piping  Option 282
,5130 Cab Window Guard-USA Garde 284
5200 Arm-22M-Option
5210 Bucket-032M3-Option Godet 288
5220 Bucket-045M3-Option Godet , ~
5230 Bucket-0 7M3 -Option Godet , 292
5240 Bucket-08M3 -Option” Godet 294
5250 Bucket-09M3 -Option Godet 296
5260 Bucket-10M3 -0ption Godet 298
5270 Bucket-115M3 -Option Godet 300
5280 Bucket-10M3 -Option W/T Godet 302
HYDRAULIC PARTS
Fig 6110 Main Pump (1)
6120 Main Pump (2)
6130 Main Pump (3)
6140 Main Pump (4)
6150 Main Pump (5)
6160 Main Pump (6)
6170 Main Pump (7)
6210 Swing Motor
6211 Swing Motor
6220 Reduction 328
