1996-1997 Chevrolet S10 Pickup Service Manual – PDF DOWNLOAD
FILE DETAILS:
1996-1997 Chevrolet S10 Pickup Service Manual – PDF DOWNLOAD
Format: PDF
Language: English
Brand: Chevrolet
DESCRIPTION:
1996-1997 Chevrolet S10 Pickup Service Manual – PDF DOWNLOAD
INTRODUCTION :
The following diagnostic steps help prevent overlooking simple problems. This is also where to begin diagnosis for no-start condition. The first step in diagnosing any driveability problem is verifying the customer’s complaint by test driving vehicle under the conditions in which the problem reportedly occurred. Before entering self-diagnostics, perform a careful and complete visual inspection. Most engine control problems result from mechanical breakdowns, poor electrical connections or damaged/misrouted vacuum hoses. Before condemning the computerized system, perform each test listed in this article.
General Inspection :
1. Ensure proper starting procedure is being used. Visually check vacuum hoses for splits, kinks and proper connections as shown on Vehicle Emission Control Information label. Check ignition wires for cracking, hardness and proper connections at both coil pack and spark plugs.
2. Remove spark plugs. Check and replace as necessary. In very cold temperatures, ensure oil is proper viscosity and not contaminated with gasoline.
Ignition System:
1. Perform On-Board Diagnostic (OBD) System Check. See ON-BOARD DIAGNOSTIC (OBD) SYSTEM CHECK . After performing OBD system check, go to next step.
2. Check for Diagnostic Trouble Codes (DTCs). If DTC P0601, P0602 or P1621 is present, diagnose DTC (s). See the TESTS W/CODES article. If DTC(s) is not present, go to next step.
3. Check PCM ground connection at engine block. Repair as necessary. After repairs, go to next step. If ground connection
TABLE OF CONTENTS:
1996-1997 Chevrolet S10 Pickup Service Manual – PDF DOWNLOAD
22L ADJUSTMENTS 1
22L BASIC TESTING 3
22L ENGINE 15
22L REMOVAL 39
43L ADJUSTMENTS 55
43L ENGINE 57
43L REMOVAL 98
43L TESTS WITH CODES 112
AC COMPRESSOR 247
AIRBAGS 253
ANTILOCK BRAKES 348
AUTO TRANS OVERHAUL 389
AUTO TRANS SERVICE 442
BRAKES 448
CHARGING 469
CLUTCH 476
COMPUTER RELEARN 488
COOLING FANS 490
CRUIISE CONTROL 512
DEFOGGER 522
DIFFERENTIAL EATON LOCKING 529
DRIVE AXLE FRONT 538
DRIVE AXLES 561
DRIVE BELT 577
DRIVESHAFT 591
ELECTRICAL COMPONENT LOCATIONS 605
FRONT SUSPENSION 2WD 617
FRONT SUSPENSION 4WD 631
FUSES 648
HEATER 650
HVAC DIAGNOSIS 659
HVAC TROUBLE SHOOTING 673
INSTRUMENT PANEL 696
MAINTENANCE INFO 709
MAINTENANCE REMINDER LIGHTS 726
MANUAL TRANS OVERHAUL 759
MANUAL TRANS SERVICE 770
POWER DOOR LOCKS 772
POWER MIRRORS 783
POWER SEATS 788
POWER STEERING SYSTEM 795
POWER WINDOWS 821
REAR SUSPENSION 830
SPECS 853
STARTER 855
STEERING COLUMN 877
steering knuckles 4wd 887
SYSTEM COMPONENT TESTS 891
TRANSFER CASE 231 910
TRANSFER CASE 233 918
VACUUM DIAGRAMS 926
WIPER WASHER 928
WIRING 942
VIDEO PREVIEW OF THE MANUAL:

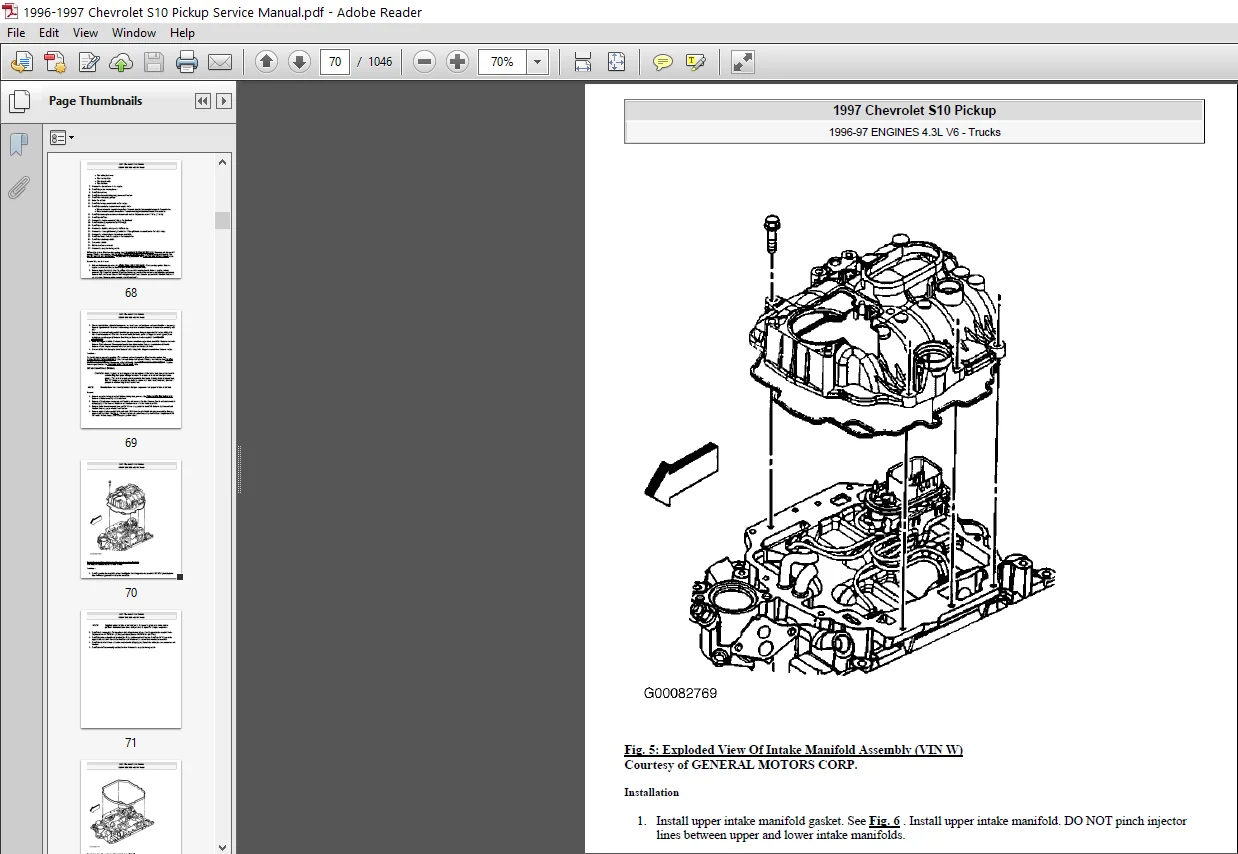

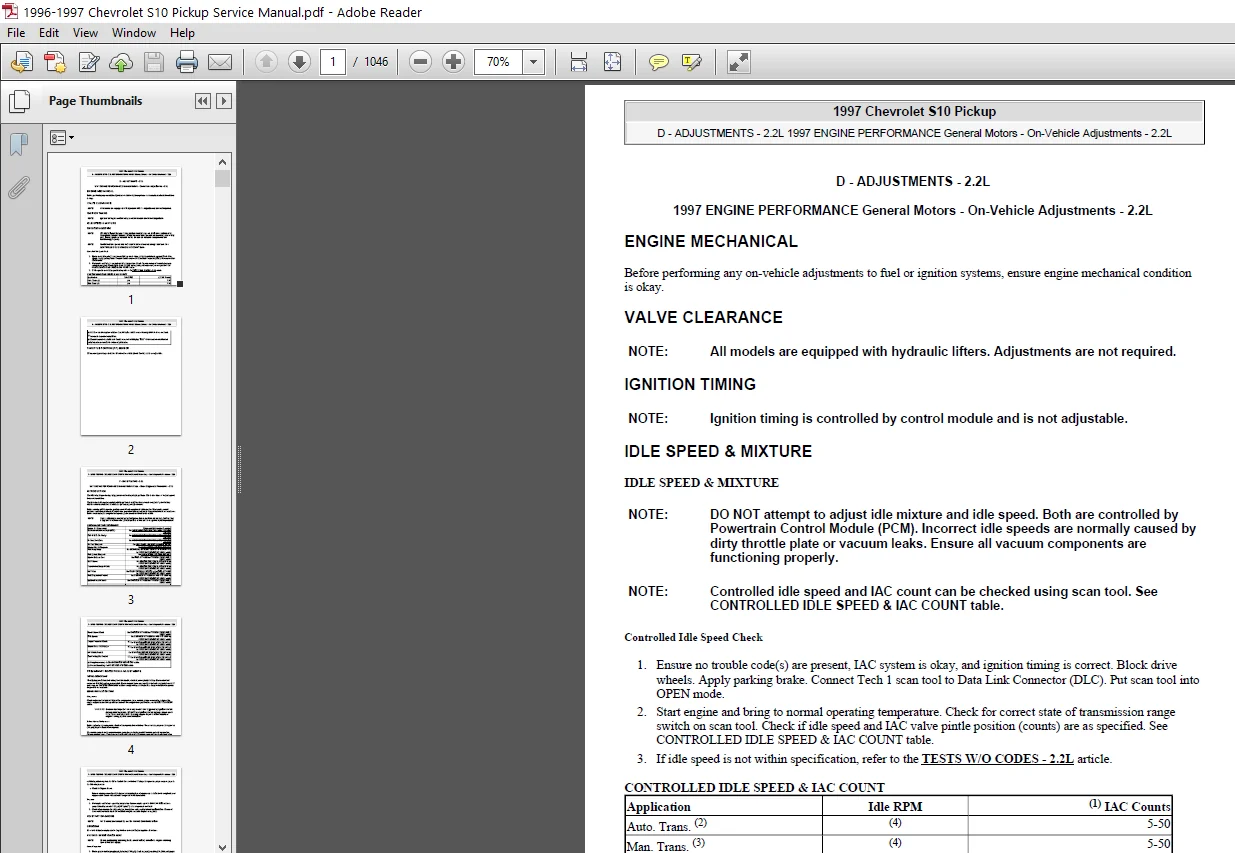

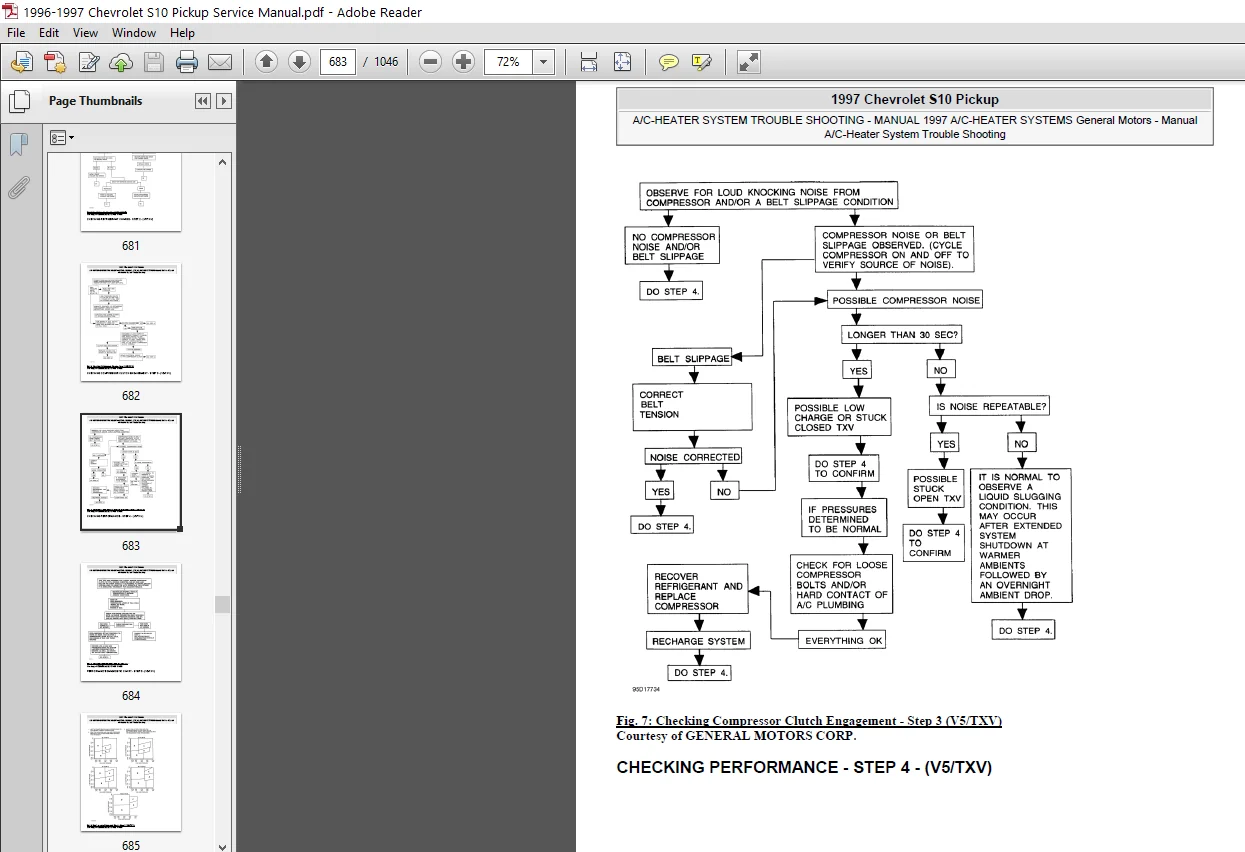

IMAGES PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
- The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
- Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
