1994-1996 Kia Pride Service Repair Manual
FILE DETAILS:
1994-1996 Kia Pride Service Repair Manual
LANGUAGE:ENGLISH
PAGES:850+
DOWNLOADABLE:YES
FILE TYPE:PDF
VIDEO PREVIEW OF THE MANUAL:

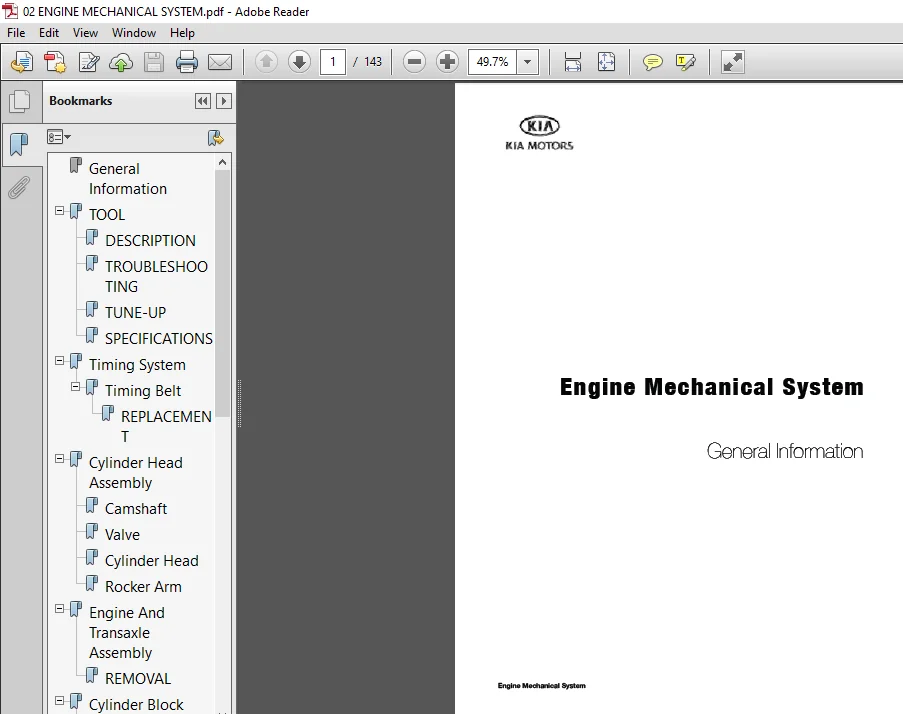

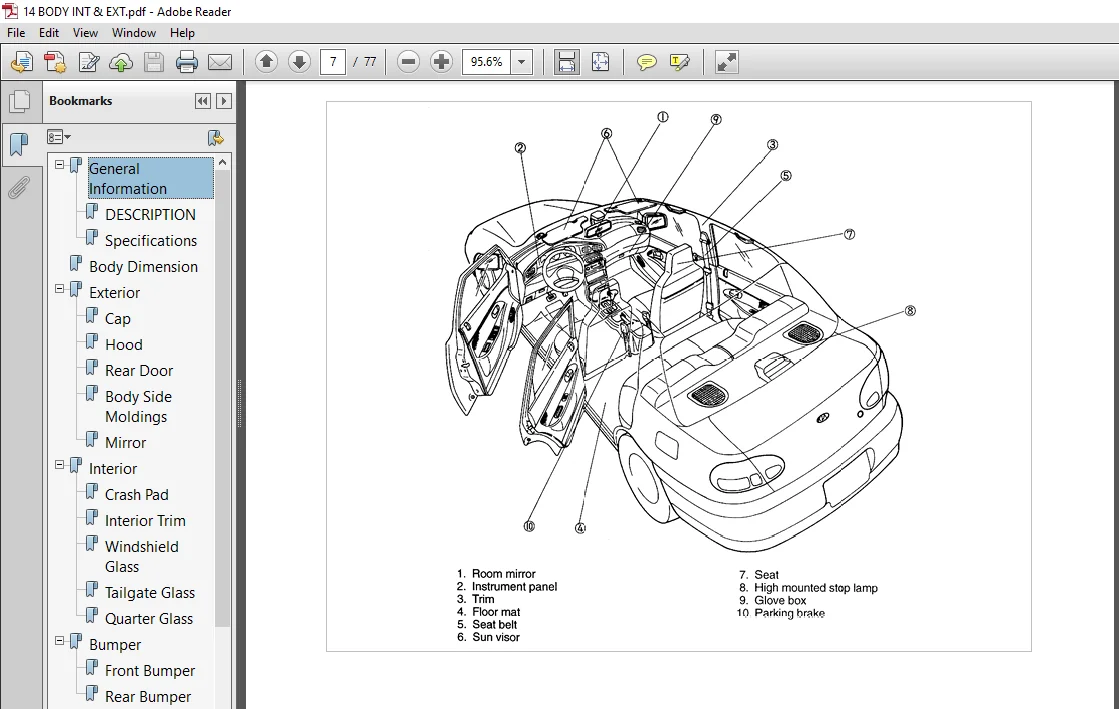

IMAGES PREVIEW OF THE MANUAL:
SAMPLE PAGE FROM THE MANUAL:
1994-1996 Kia Pride Service Repair Manual
The speedometer driven gear sleeve is used as a dipstick to check the transaxle fluid level. To check and adjust the transaxle fluid level, use following procedure :
1. Remove the protective boot from the gear sleeve and slide it up the speedometer cable.
2. Disconnect the speedometer cable from the sleeve. Pliers may by necessary to loosen the speedometer cable attaching nut.
3. Remove the bolt which is attaching the gear sleeve to the transaxle.
4. Remove the speedometer sleeve and gear assembly.
5. Remove the O-ring from the speedometer gear sleeve.
6. Remove all traces of transaxle fluid from the gear and sleeve.
7. Insert the speedometer sleeve into its bore in the transaxle.
8. Remove the sleeve and check the transaxle fluid level using the indicator mark on the sleeve.
9. If the transaxle fluid level is below the full mark, add the required amount of specified transaxle fluid through the speedometer gear bore.
10. Inspect the O-ring. If it is in good condition, install it on the sleeve.
TABLE OF CONTENTS:
1994-1996 Kia Pride Service Repair Manual
Kia Avella Pride 1994-1996
Kia Avella Pride 1994-1996\01 GENERAL INFO.pdf
Kia Avella Pride 1994-1996\02 ENGINE MECHANICAL SYSTEM.pdf
Kia Avella Pride 1994-1996\03 ENGINE ELECTRICAL SYSTEM.pdf
Kia Avella Pride 1994-1996\04 EMISSION CONTROL SYSTEM.pdf
Kia Avella Pride 1994-1996\05 FUEL SYSTEM.pdf
Kia Avella Pride 1994-1996\06 DRIVESHAFT & AXLES.pdf
Kia Avella Pride 1994-1996\07 CLUTCH SYSTEM.pdf
Kia Avella Pride 1994-1996\08 STEERING SYSTEM.pdf
Kia Avella Pride 1994-1996\09 MANUAL TRANSAXLE SYSTEM.pdf
Kia Avella Pride 1994-1996\09 MANUAL TRANSAXLE SYSTEM1.pdf
Kia Avella Pride 1994-1996\10 AUTOMATIC TRANSAXLE SYSTEM.pdf
Kia Avella Pride 1994-1996\11 RESTRAINT.pdf
Kia Avella Pride 1994-1996\12 SUSPENSION SYSTEM.pdf
Kia Avella Pride 1994-1996\13 BRAKE SYSTEM.pdf
Kia Avella Pride 1994-1996\14 BODY INT & EXT.pdf
Kia Avella Pride 1994-1996\15 BODY ELECTRICAL SYSTEM.pdf
Kia Avella Pride 1994-1996\16 HEATING VENTILLATION AIRCON.pdf
PLEASE NOTE:
⦁ This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
⦁ You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
⦁ Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
