1987 Ferrari Testarossa Spare Parts Catalogue Manual – PDF DOWNLOAD
HOW TO CONSULT SPARE PARTS CATALOGUE:
- All the parts liable to be ordered as spares are iden tified by the part nµmber.
description and quanti ty mentioned in the tables. - Since the mndifications now and then introduced in series production lead to
changes in the number, description and quantity, it is essential for THE SPARE PARTS
STORES to strictly follow the changes which will be regulary notified with the amendment
sheets. All the items entered in this catalogue are available at the head store of
FERRARI. - All the orders for parts should state the catalogue number and. in addition.
the chassis and engine numbers of the concerned cars. When ordering. it is
advisable to describe the part with the same description as given in the
parts catalogue. - Spare parts fitted on cars that must comply with the laws of the Country where they
are delivered to, are marked by the initials of the interested Country.
TABLES:
They show the spare parts listed in the contents and are arranged in this way:
1 • Tables marked with capital letters [ A.B.C. …)
where the assembly units supplied as spares and the relevant single parts are listed.
2 – Tables marked from 1 up to 100 where the single mechanic parts are shown.
3 – Tables marked from 101 up to 200 whe re the body parts are shown.

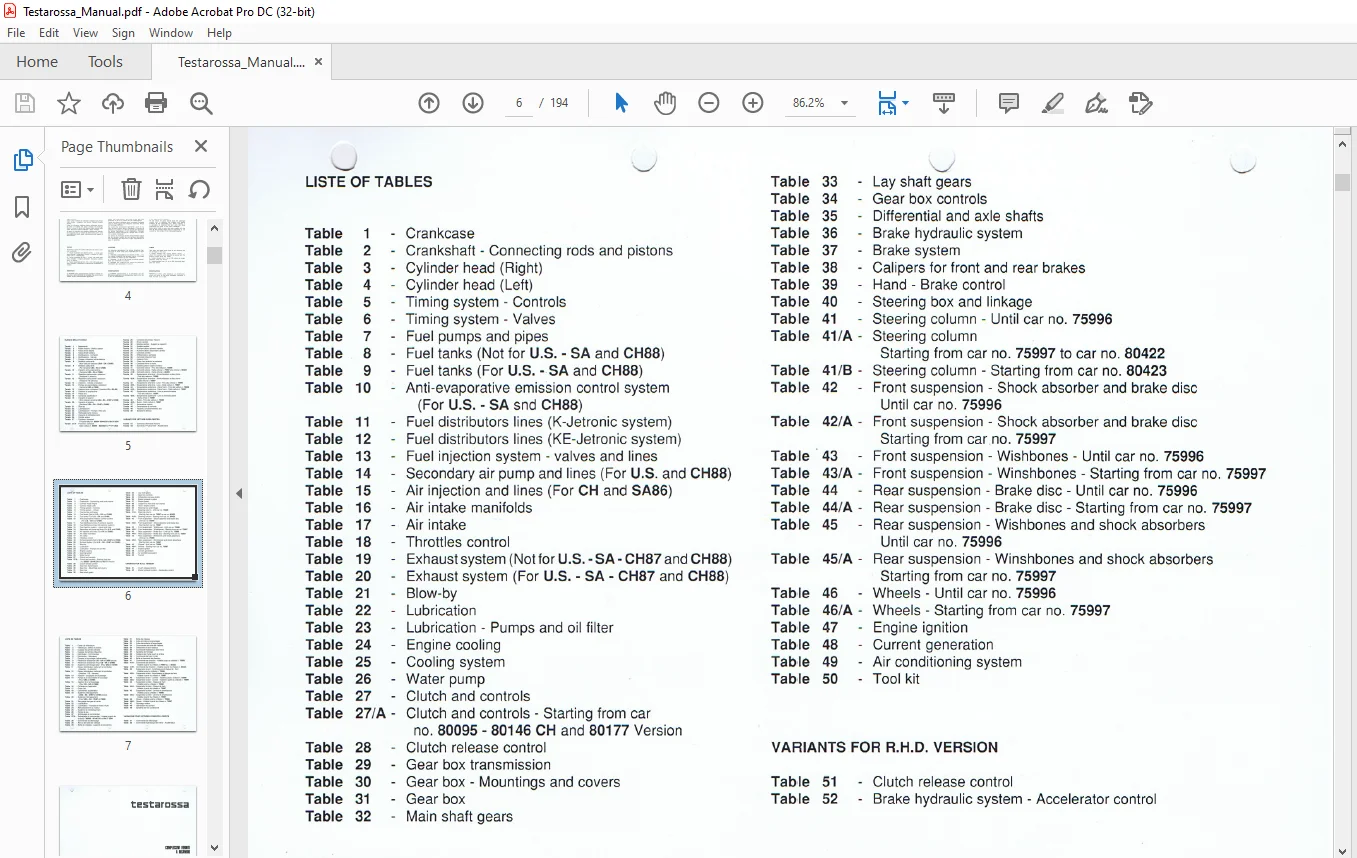

TABLE OF CONTENTS:
1987 Ferrari Testarossa Spare Parts Catalogue Manual – PDF DOWNLOAD

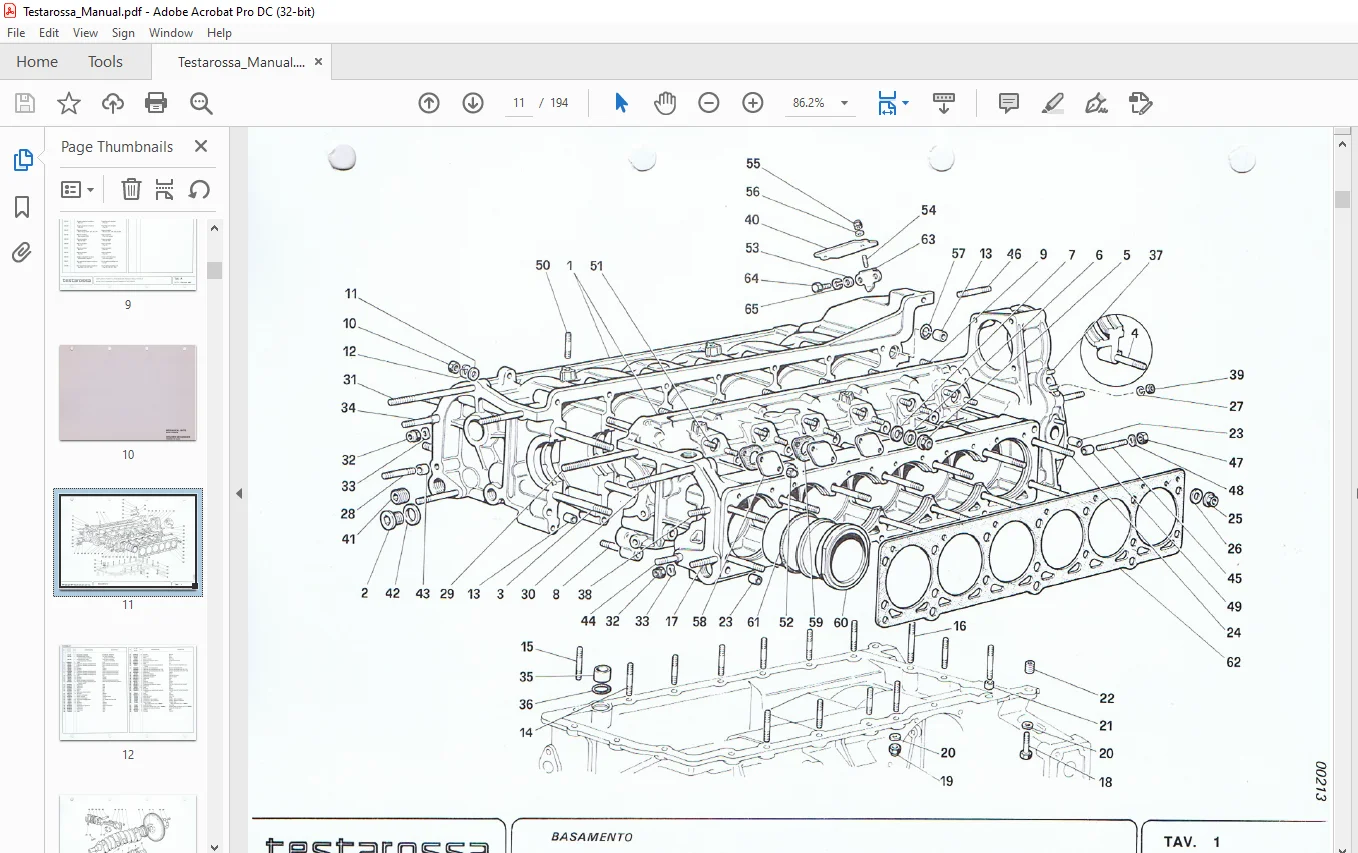

Table 1 – Crankcase Table 36 – Brake hydraulic system
Table 2 – Crankshaft – Connecting rods and pistons Table 37 – Brake system
Table 3 – Cylinder head (Right) Table 38 – Calipers for front and rear brakes
Table 4 – Cylinder head (Left) Table 39 – Hand – Brake control
Table 5 – Timing system – Controls Table 40 – Steering box and linkage
Table 6 – Timing system – Valves Table 41 – Steering column – Until car no. 75996
Table 7 – Fuel pumps and pipes Table 41 /A – Steering column
Table 8 – Fuel tanks (Not for U.S. – SA and CH88) Starting from car no. 75997 to car no. 80422
Table 9 – Fuel tanks (For U.S. – SA and CH88) Table 41/B – Steering column – Starting from car no. 80423
Table 10 – Anti-evaporative emission control system Table 42 – Front suspension – Shock absorber and brake disc
(For U.S. – SA snd CH88) Until car no. 75996
Table 11 – Fuel distributors lines (K-Jetronic system) Table 42/A – Front suspension – Shock absorber and brake disc
Table 12 – Fuel distributors lines (KE-Jetronic system) Starting from car no. 75997
Table 13 – Fuel injection system – valves and lines Table 43 – Front suspension – Wishbones – Until car no. 75996
Table 14 – Secondary air pump and lines (For U.S. and CH88) Table 43/A – Front suspension – Winshbones – Starting from car no. 75997
Table 15 – Air injection and lines (For CH and SA86) Table 44 – Rear suspension – Brake disc – Until car no. 75996
Table 16 – Air intake manifolds Table 44/A – Rear suspension – Brake disc – Starting from car no. 75997
Table 17 – Air intake Table 45 – Rear suspension – Wishbones and shock absorbers
Table 18 – Throttles control Until car no. 75996
Table 19 – Exhaust system (Not for U.S. – SA- CH87 and CH88) Table 45/A – Rear suspension – Winshbones and shock absorbers
Table 20 – Exhaust system (For U.S. – SA – CH87 and CH88) Starting from car no. 75997
Table 21 – Blow-by Table 46 – Wheels – Until car no. 75996
Table 22 – Lubrication Table 46/A – Wheels – Starting from car no. 75997
Table 23 – Lubrication – Pumps and oil filter Table 47 – Engine ignition
Table 24 – Engine cooling Table 48 – Current generation
Table 25 – Cooling system Table 49 – Air conditioning system
Table 26 – Water pump Table 50 – Tool kit
Table 27 – Clutch and controls
Table 27/A – Clutch and controls – Starting from car
no. 80095 – 80146 CH and 80177 Version
Table 28 – Clutch release control VARIANTS FOR R.H.D. VERSION
Table 29 – Gear box transmission
Table 30 – Gear box – Mountings and covers Table 51 – Clutch release control
Table 31 – Gear box Table 52 – Brake hydraulic system – Accelerator control
