1979 to 1985 Suzuki GS/GSX 250, 400 & 450 Twins Owners Workshop Manual – PDF DOWNLOAD

Description

1979 to 1985 Suzuki GS/GSX 250, 400 & 450 Twins Owners Workshop Manual – PDF DOWNLOAD

FILE DETAILS:

1979 to 1985 Suzuki GS/GSX 250, 400 & 450 Twins Owners Workshop Manual – PDF DOWNLOAD

Language : English
Pages : 236
Downloadable : Yes
File Type : PDF

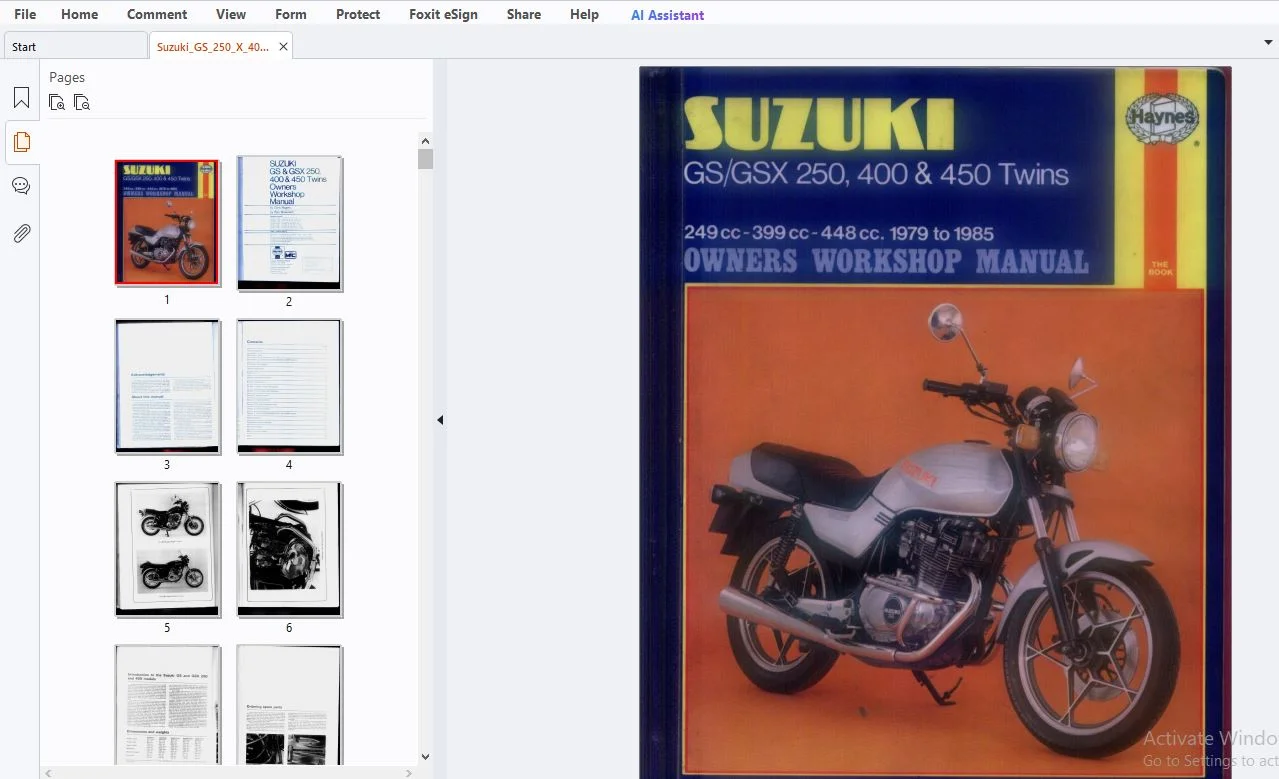

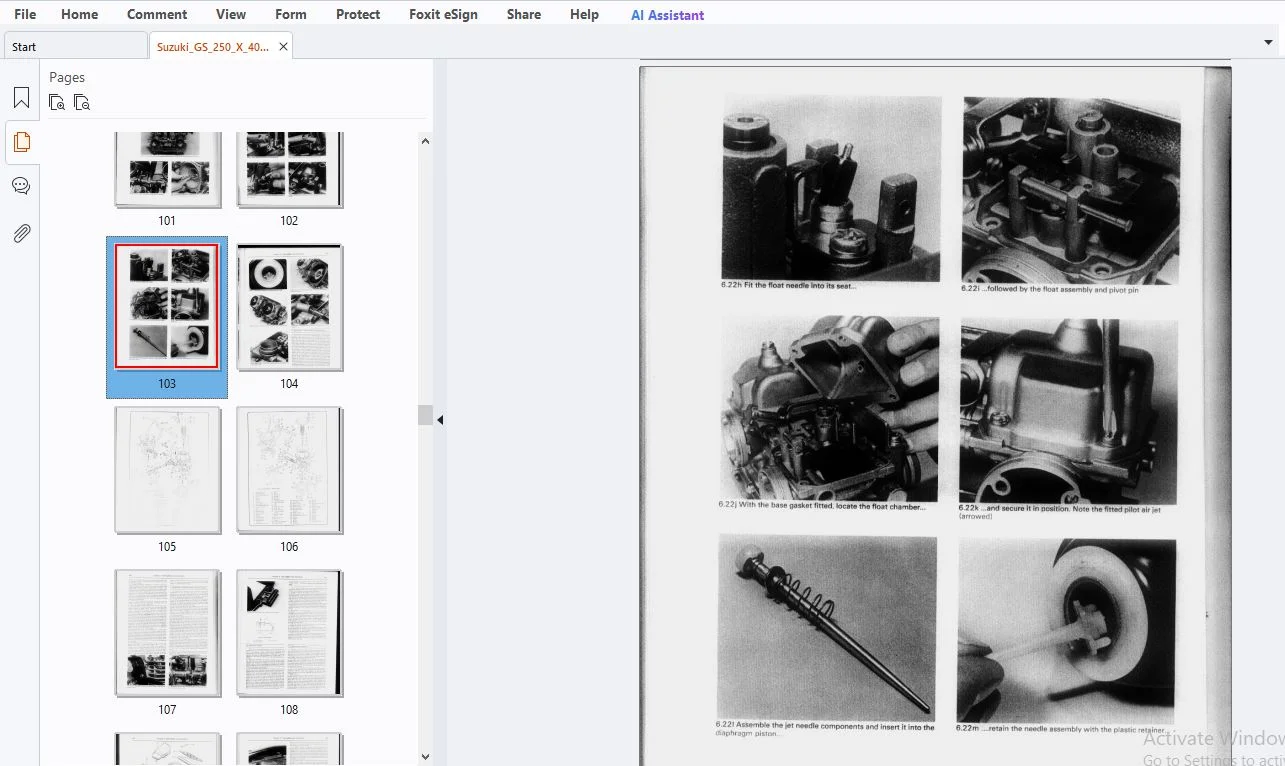

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

1979 to 1985 Suzuki GS/GSX 250, 400 & 450 Twins Owners Workshop Manual – PDF DOWNLOAD

• The purpose of this manual is to present the owner with a concise and graphic guide which will enable him to tackle any operation from basic routine maintenance to a major overhaul.
  It has been assumed that any work would be undertaken without the luxury of a well-equipped workshop and a range of manufacturer’s service tools.
• To this end, the machine featured in the manual was stripped and rebuilt in our own workshop, by a team comprising a mechanic, a photographer, and the author. The resulting photographic sequence depicts events as they took place, the hands shown being those of the author and the mechanic.
• The use of specialized, and expensive, service tools was avoided unless their use was considered to be essential due to risk of breakage or injury. There is usually some way of improvising a method of removing a stubborn component, provided that a suitable degree of care is exercised.
• The author learnt his motorcycle mechanics over a number of years, faced with the same difficulties and using similar facilities to those encountered by most owners. It is hoped that this practical experience can be passed on through the pages of this manual.
• Where possible, a well-used example of the machine is chosen for the workshop project, as this highlights any areas which might be particularly prone to giving rise to problems. In this way, any such difficulties are encountered and resolved before the text is written, and the techniques used to deal with them can be incorporated in the relevant sections. Armed with a working knowledge of the machine, the author undertakes a considerable amount of research in order that the maximum amount of data can be included in this manual.
• Each Chapter is divided into numbered sections. With these sections are numbered paragraphs. Cross-reference throughout the manual is quite straightforward and logical. When reference is made See Section 6.10 it means Section 6, paragraph 10 in the same Chapter. If another Chapter were intended the reference would read, for example: See Chapter 2, Section 6.10. All the photographs are captioned with a section/paragraph number to which they refer and are relevant to the Chapter text adjacent.
• Figures (usually line illustrations) appear in a logical but numerical order within a given Chapter. Fig. 1.1 therefore refers to the first figure in Chapter 1.
• Left-hand and right-hand descriptions of the machines and their components refer to the left and right of a given machine when the rider is seated normally.
• Whilst every care is taken to ensure that the information in this manual is correct no liability can be accepted by the author or publishers for loss, damage, or injury caused by any errors in or omissions from the information given.
• Motorcycle manufacturers continually make changes to specifications and recommendations, and these, when noticed, are incorporated into our manuals at the earliest opportunity.

TABLE OF CONTENTS:

1979 to 1985 Suzuki GS/GSX 250, 400 & 450 Twins Owners Workshop Manual – PDF DOWNLOAD

• Acknowledgements
• About this manual
• Introduction to the Suzuki GS and GSX250 and 400 models
• Dimensions and weights
• Ordering spare parts
• Safety first!
• Working conditions and tools
• Routine maintenance
• Chapter 1 – Engine, clutch, and gearbox
• Chapter 2 – Fuel system and lubrication
• Chapter 3 – Ignition system
• Chapter 4 – Frame and forks
• Chapter 5 – Wheels, brakes, and tyres
• Chapter 6 – Electrical system
• Chapter 7 – The UK GSX250/400 EZ and US GS450 models
• Wiring diagrams
• English/American terminology
• Conversion factors
• Metric conversion tables
• Index
