1957-1973 Fiat 500 Service Repair Manual – PDF Download


1957-1973 Fiat 500 Service Repair Manual

$14.95 $29.95

  Happy to Help You :) Any queries / Requests? CLICK HERE to ask!

1957-1973 Fiat 500 Service Repair Manual

FILE DETAILS:

1957-1973 Fiat 500 Service Repair Manual

LANGUAGE:ENGLISH
PAGES:128
DOWNLOADABLE:YES
FILE TYPE:PDF

VIDEO PREVIEW OF THE MANUAL:

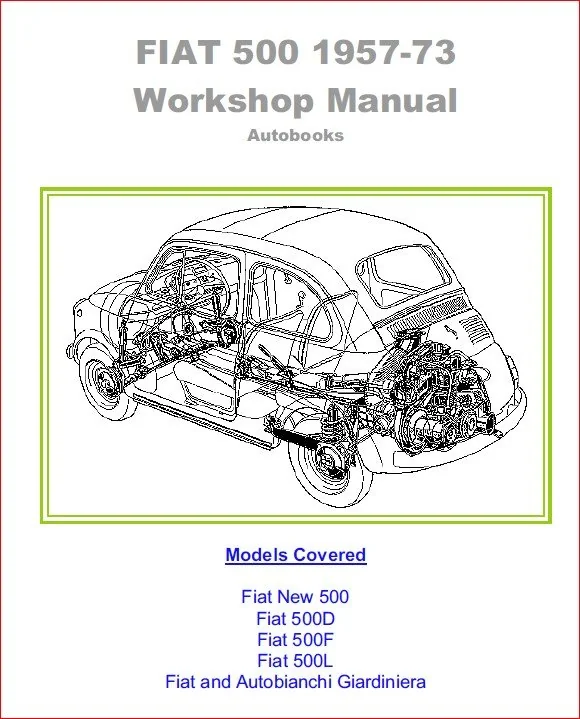

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

1957-1973 Fiat 500 Service Repair Manual

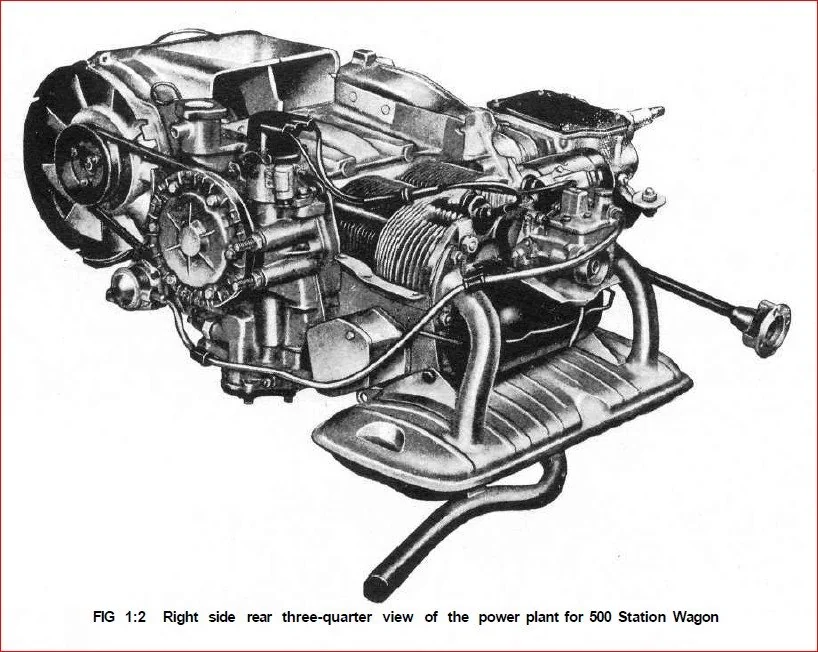

The ‘New 500’ two-cylinder aircooled engine operates on the four-stroke ‘Otto Cycle’ and is fitted directly to the transmission unit which incorporates the rear drive assembly as shown in FIG 1 :1 and FIG 1 :2. With the power unit fitted at the rear several advantages are obtained including better load distribution to the wheels when the vehicle is loaded, elimination of propeller shaft reducing the size of centre tunnel and better use of available space. The cylinder block comprises two cast iron cylinder barrels with cooling fins. The bottom of the cylinders fit into machined seats in the aluminium crankcase. The aluminium crankcase carries eight studs on which are located the two cylinder barrels with the aluminium cylinder head on the top.

TABLE OF CONTENTS:

1957-1973 Fiat 500 Service Repair Manual

The Engine.......................  2
The Fuel System.................. 28
The Ignition System.............. 40
The Cooling System............... 46
The Clutch....................... 52
Gearbox and Differential Unit.... 58
Rear Suspension and Wheels....... 72
Front Suspension and Hubs........ 80
The Steering System.............. 90
The Braking System............... 96
The Electrical Equipment.........104
The Bodywork.....................120
