1957 – 1959 Dodge Coronet & Royal Service Manual – DOWNLOAD


1957 – 1959 Dodge Coronet & Royal Service Manual

$14.95 $21.95

  Happy to Help You :) Any queries / Requests? CLICK HERE to ask!

1957 – 1959 Dodge Coronet & Royal Service Manual

VIDEO PREVIEW OF THE MANUAL:

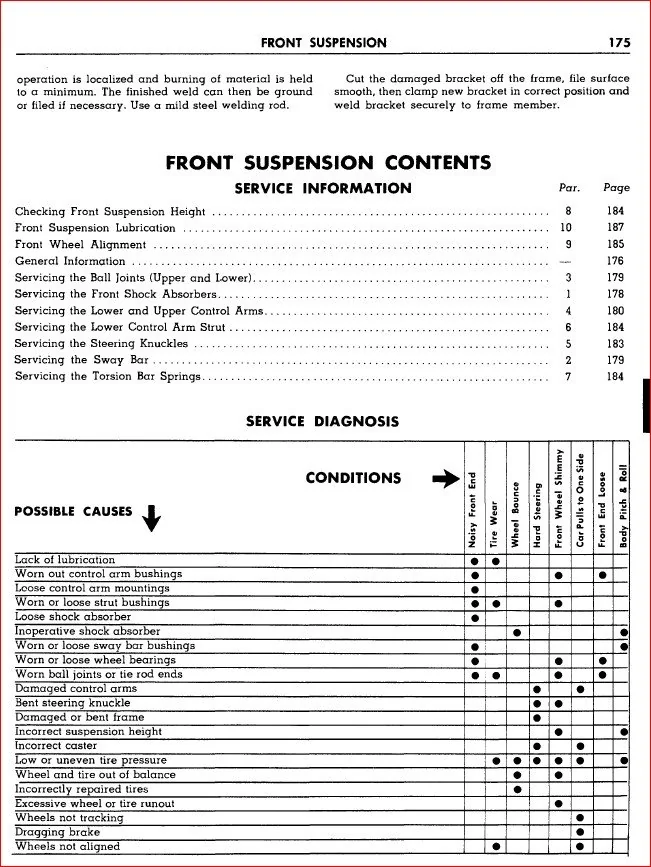

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

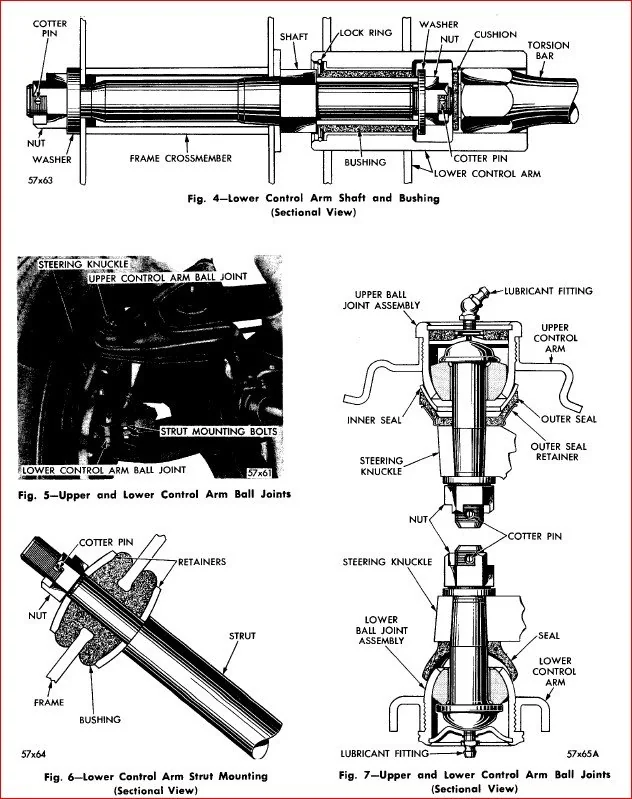

The new torsion bar suspension used on the Dodge cars, consists of two torsion bar springs (right and left hand), two sets of upper and lower control arms, four ball joints and two struts. The front ends of the torsion bar springs engage the lower control arms at the inner pivot points.

The rear ends of the springs engage adjustable anchor and cam assemblies, which are supported by brackets welded to the frame side rails and a removable cross member.

  • 1. The upper control arms are similar to those used in previous models except for the method of attaching them to the frame and steering knuckles. The upper control arms are mounted on removable brackets, which are bolted to the frame sub side rails, as shown in Figure
  • 2. Shim packs inserted between the brackets and the frame sub side rails, establish the caster and camber settings for each front wheel.

TABLE OF CONTENTS:

Front Suspension
Brakes
Clutch
Cooling
Electrical
Engine
Exhaust
Frame
Fuel System
Lubrication
Rear Axle and Suspension
Steering
Transmissions
Wheels and Tires
Air Conditioning
Body and Sheet Metal
Specifications

FILE FORMAT:

LANGUAGE:ENGLISH
PAGES:527
DOWNLOADABLE:YES
FILE TYPE:PDF

PLEASE NOTE:

  • This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
  • Contact us at heydownloadss @gmail.com should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
